10-1
SECTION 10
REPAIR PARTS LIST
The components identified by mark or dotted
line with mark
are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
sont critiquens pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
The components identified by mark contain
confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifiés par la marque
con-
tiennent des informations confidentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et
/ ou réparé.

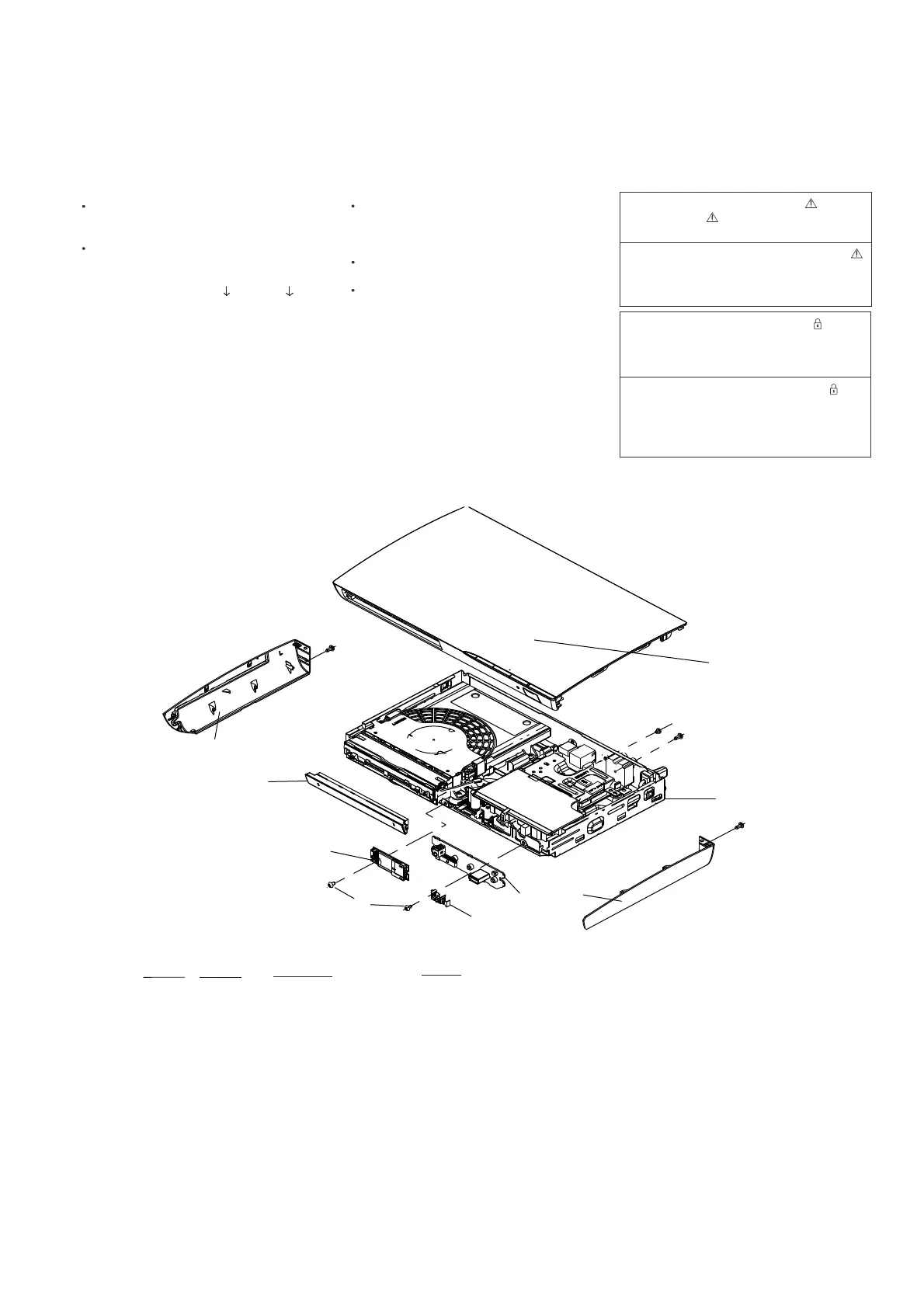

10-1. EXPLODED VIEWS
NOITCESESAC .1-1-01
NOTE:
-XX and -X mean standardized parts, so they
may have some difference from the original
one.
Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
The mechanical parts with no reference number
in the exploded views are not supplied.
Accessories and packing materials are given in
the last of the electrical parts list.
Ref. No.
Part No.
Description
Remark
Ab b re via t io n
1
1
2
ns: not supplied
5
1
4
ns
8
7
9
2
1
3
3
6
3
5
ns
BDP-BX39/S390
PX : PX Model
IN : India Model
TW : Taiwan Model
SP : Singapore Model
TH : Thailand Model
EA : Middle East Model
KS : Saudi Arabia Model
UK : UK Model
AE1/2/3 : AEP Model
RUS : Russian Model
AUS : Australia/NZ Model
US : US Model
CND : Canadian Model
MX : Mexican Model
E : Latin America Model
X-2583-230-1 PANEL ASSY, MAIN
(BDP-S390:EXCEPT US,CND)
X-2583-233-1 PANEL ASSY, MAIN (BDP-BX39:CND)
X-2583-232-1 PANEL ASSY, MAIN (BDP-BX39:US)
1 X-2583-680-1 PANEL ASSY, MAIN (BDP-S390:CND)
X-2583-231-1 PANEL ASSY, MAIN (BDP-S390:US)
4-294-648-01
PANEL, SIDE (L)
4-294-647-01
PANEL, SIDE (R)6
1
3 3-077-331-41 +BV3 (3-CR)
9 COVER TRAY ASSY
3-077-331-21 +BV3 (3-CR)
X-2583-229-1
1-458-494-11 CARD, WIRELESS LAN
4
A-1855-682-A SERVICE ASSY, FR
8
7
7-682-544-04 SCREW +B 3X3
