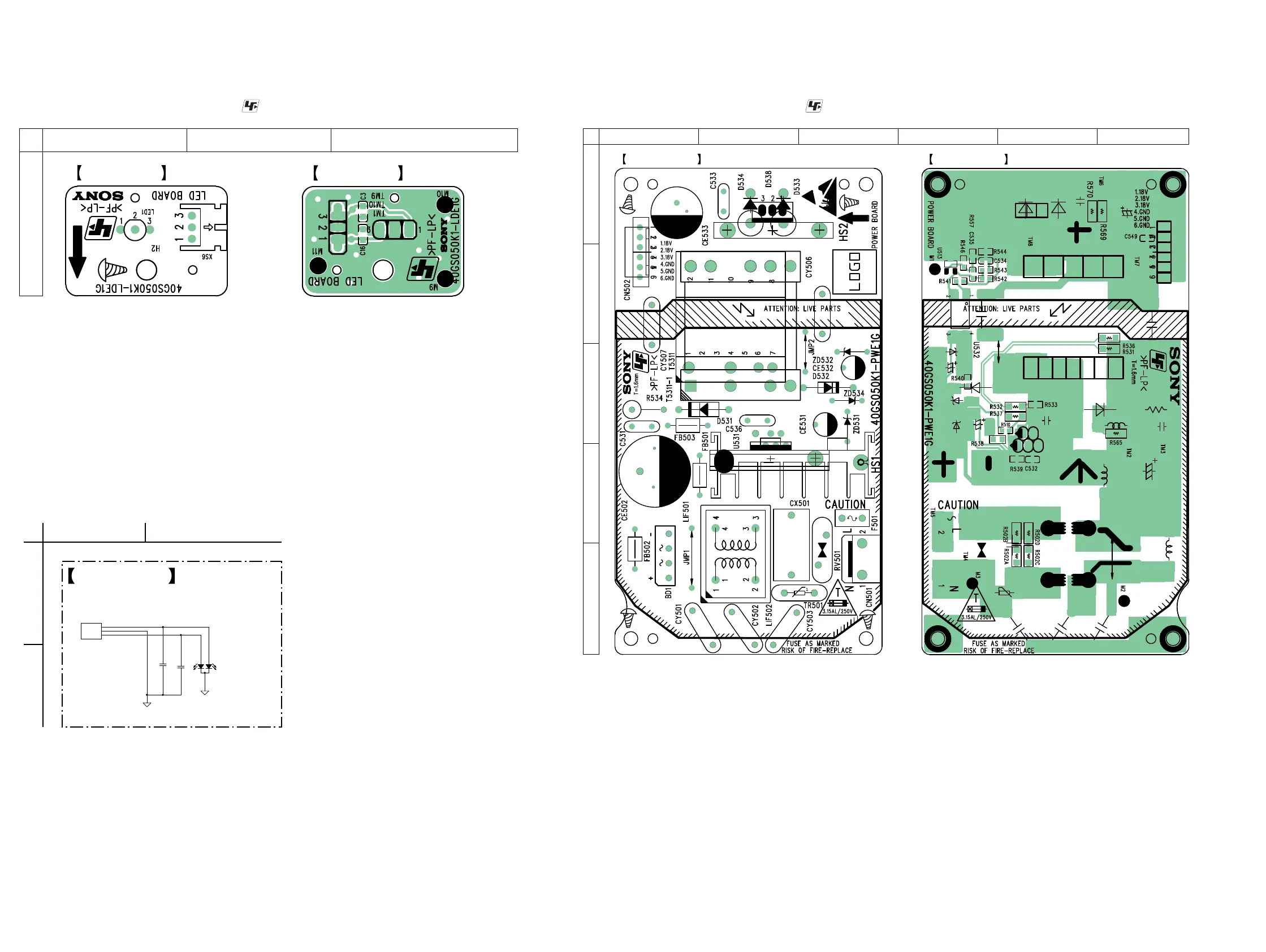

Sony SA-WCT180 - 3-10. PRINTED WIRING BOARD - POWER Board; Printed Wiring Board - LED Board; Schematic Diagram - LED Board

SA-WCT180
SA-WCT180
1818
3-10. PRINTED WIRING BOARD - POWER Board -
POWER BOARD (COMPONENT SIDE)
POWER BOARD (CONDUCTOR SIDE)
A
B
C
D
E
1 2 3 4 5 6
3-8. PRINTED WIRING BOARD - LED Board -
LED BOARD (COMPONENT SIDE)
LED BOARD (CONDUCTOR SIDE)
A
1 2 3
• : Uses unleaded solder.
• See page 13 for Circuit Boards Location.
3-9. SCHEMATIC DIAGRAM - LED Board -
PIN-1 GREEN
PIN-3 RED
ES1:
46-FF034T-04H, change to 3PIN
1
2
3
1
2
3
XS6
3PIN/2.0mm
XS6
3PIN/2.0mm
LED1
LED_3P_2PARTA
LED1
LED_3P_2PARTA
C3
NC/0.1uF
C3
NC/0.1uF
C16
NC/0.1uF
C16
NC/0.1uF
LED_LINK
LED_POWER
D
D
1
2
3
A
2
B
1
LED BOARD
• : Uses unleaded solder.
• See page 13 for Circuit Boards Location.
