Sony SA-WCT180 User Manual

SA-WCT180
7

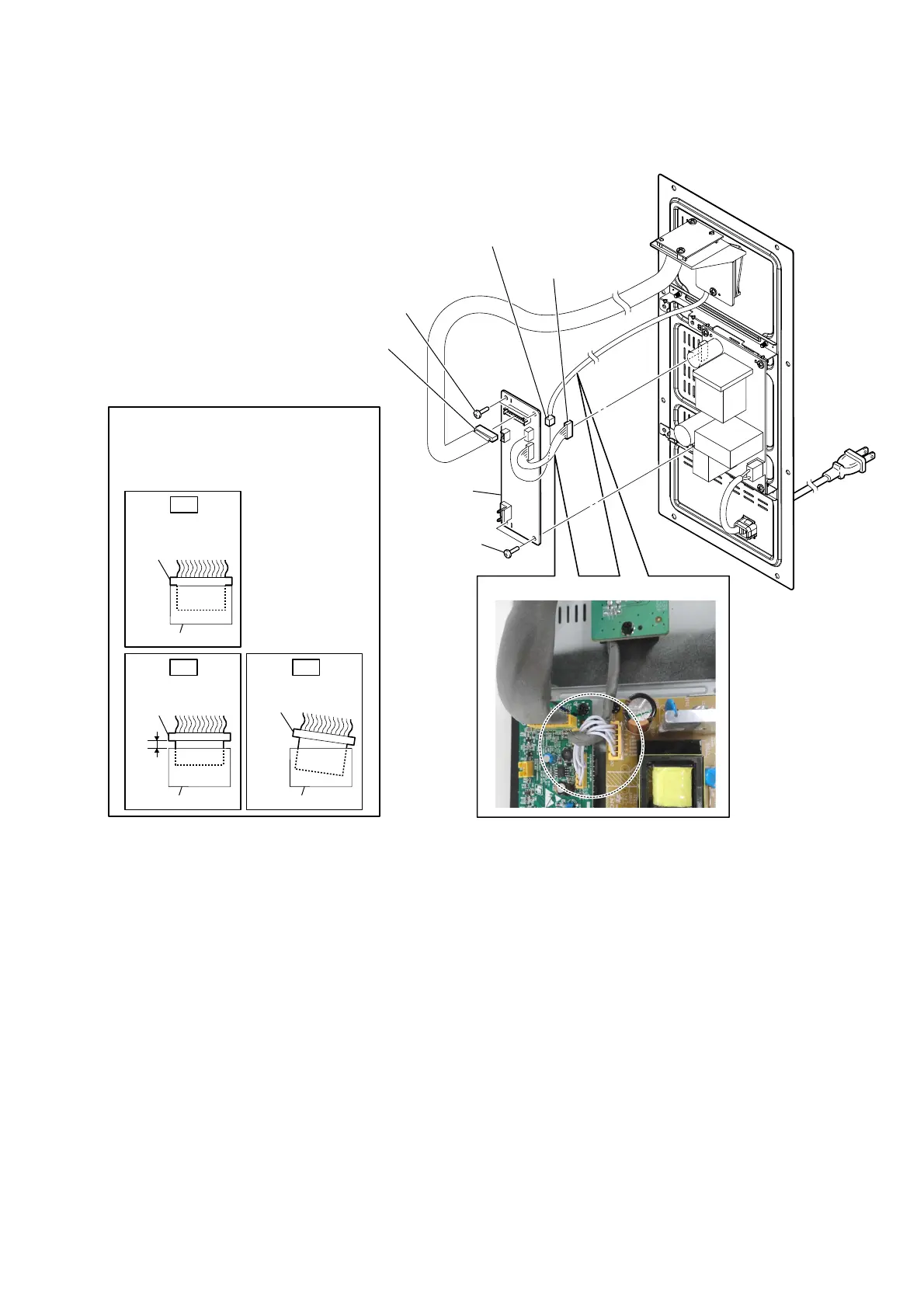

2-3. MAIN BOARD
– AMP block front view –
 :ire VettinJ
3 connector
(CN502)
4 two screws
(3 u 6 B)
2 connector
(XS6)
1 connector
(XP3)
4 two screws
(3 u 6 B)
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK
NG NG
 +ow to inVtDll tKe connector
Insert the connector straight into the interior.
There is a possibility that using this unit
without the connector correctly installed will
damage it.
5 MAIN board

Sony SA-WCT180 Specifications

General

Brand	Sony
Model	SA-WCT180
Category	Subwoofer
Language	English
