21
SA-WCT180
SECTION 4
EXPLODED VIEWS
1 9-885-199-16 POWER BOARD, COMPLETE (US, CND)
1 9-885-201-22 POWER BOARD, COMPLETE (Except US, CND)
2 4-565-990-01 SCREW (3X6 B)
3 9-885-199-15 MAIN BOARD, COMPLETE
4 4-565-992-01 SCREW (3X8 B)
5 9-885-199-17 KEY BOARD, COMPLETE
(Including Wire, Cushion)
6 9-885-199-18 WIRELESS BOARD, COMPLETE (Except E12)
6 9-885-203-26 WIRELESS BOARD, COMPLETE (E12)
7 4-565-997-01 SCREW (3.5X14 B)
0 8 4-472-176-01 CORD BUSH
0 AC1 9-885-199-69 AC CORD U (US, CND)
0 AC1 9-885-199-70 AC CORD EURO (AEP, LA, SP)
0 AC1 9-885-199-71 AC CORD 13A (UK)
0 AC1 9-885-199-72 AC CORD CHINA (CH)
0 AC1 9-885-199-73 AC CORD AU (AUS)
0 AC1 9-885-199-74 AC CORD THAI (TH)
0 AC1 9-885-199-77 AC CORD AR (AR)
0 AC1 9-885-203-27 AC CORD E12 (E12)
0 ACP1 9-885-169-85 ADAPTOR, CONVERSION PLUG (LA)
WR1 9-885-199-95 WIRE 20P MAIN-W/L (Including Cushion)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color

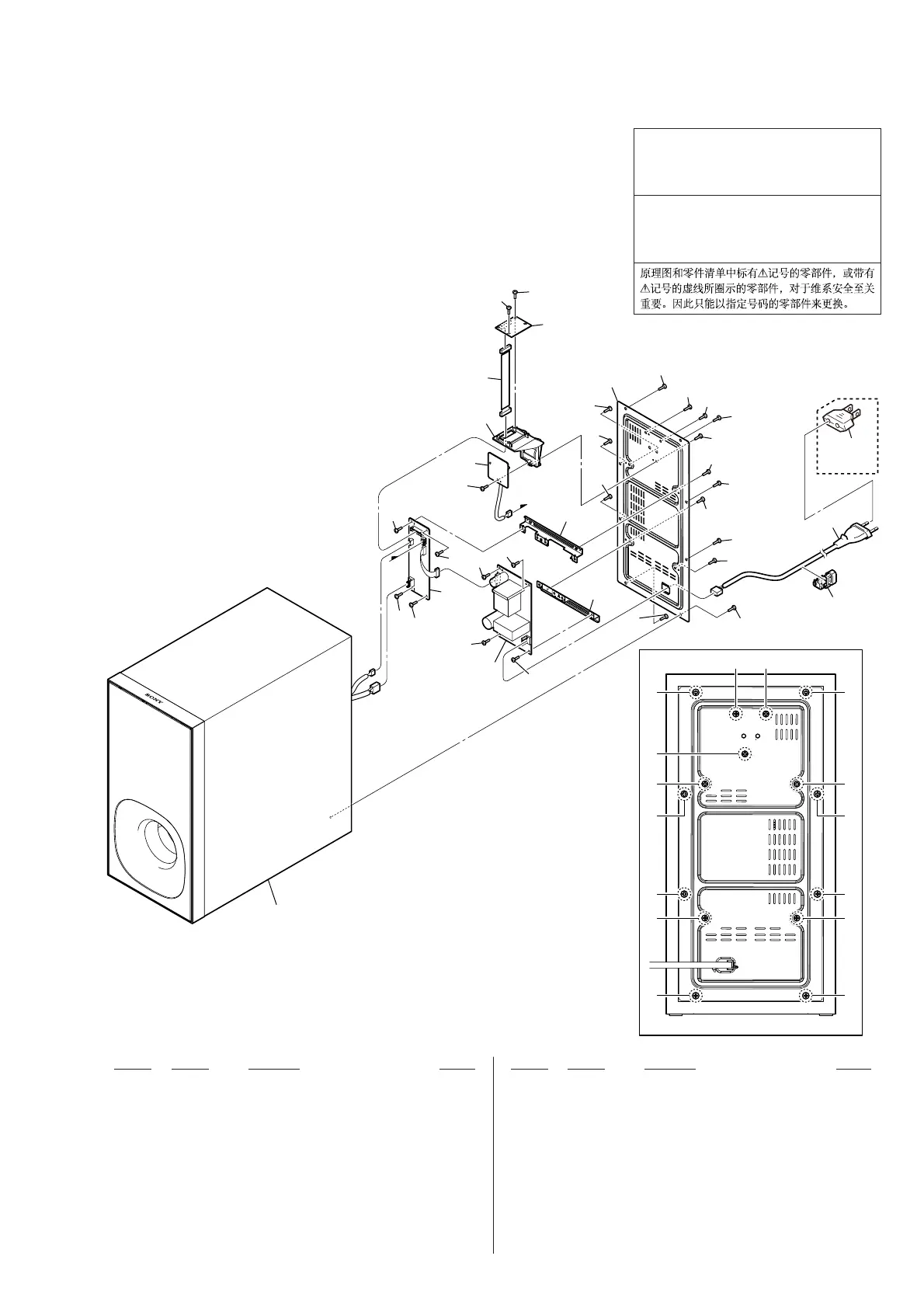

4-1. AMP SECTION
1
2
front section
A
A
2
2
2
2
2
2
2
3
4
5
not supplied
AC1
not
supplied
not supplied
WR1
not supplied
6
4
4
2
2
2
2
4
4
4
4
7
7
7
7
7
8
7
7
7
7
– Rear view –
4
7
7
7
7
7
4
7
7
2 2
2 2
ACP1
(LA)
Ver. 1.1
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
