17
HCD-FX100W
1
belt (roller V)
4
ROLLER MO
T
OR
board
2
Remove two solders.
5
motor (roller) assy
(roller)(M781)
3
two screws
(+BVTP2.6)
1
Remove five solders
of rotary encoder.
2
Remove two solders
of motor (M771)
MODE MOTOR
board
4
MODE MOTOR board
5
belt (mode V)
6
motor (mode) assy
(mode) (M771)
3
two screws
(+BVTP2.6)

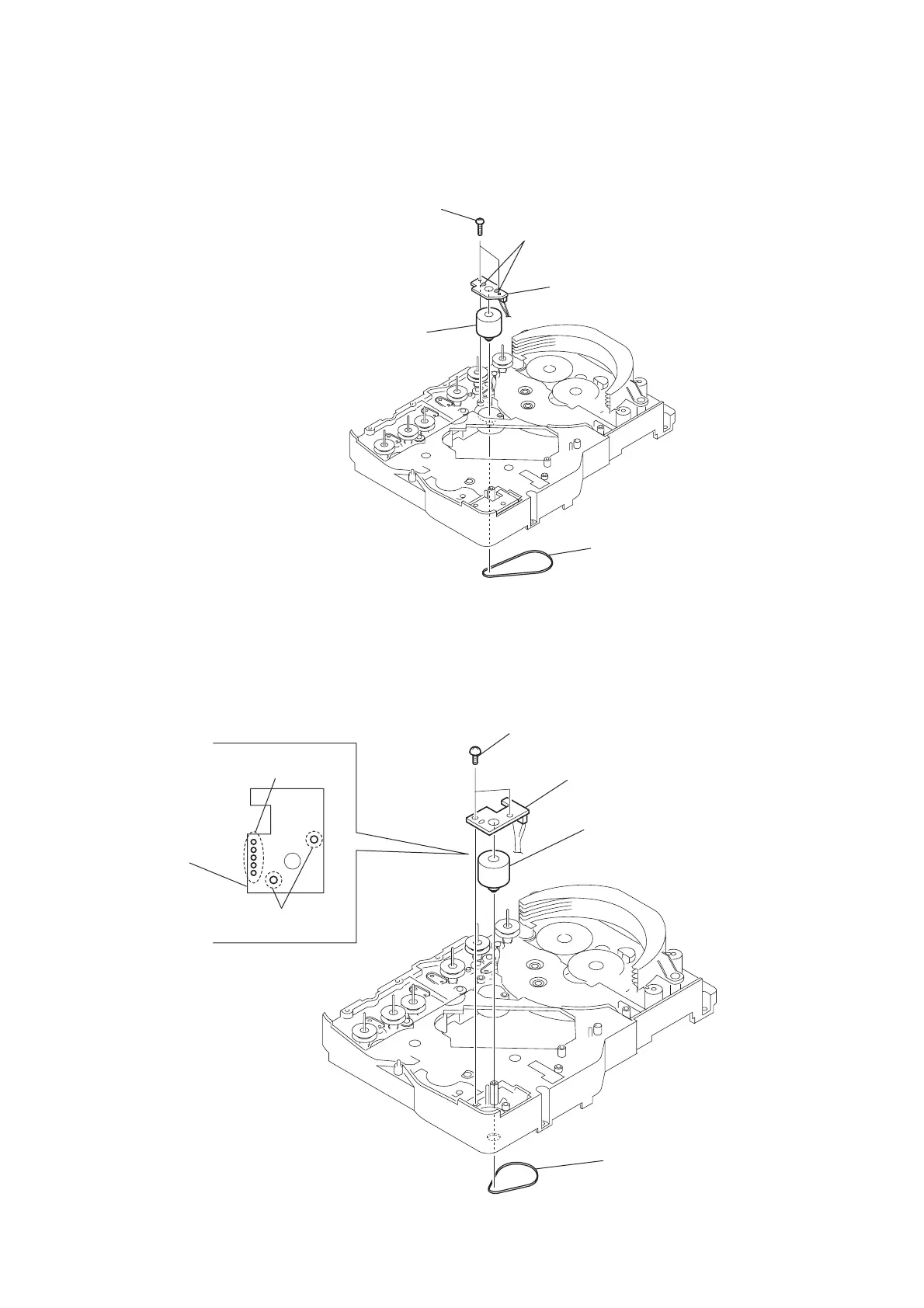

3-15.
MOT
OR (R
OLLER) ASSY (R
OLLER)(M781)
3-16.
MOT
OR
(MODE) ASSY (MODE)(M771)
106
108
Table of Contents
Table of Contents
94
Servicing Note
95
General
96
Disassembly
98
Disassembly Flow
98
Top Panel Sub Assy
99
Front Panel Assy
100
I/O Board, DC Fan
100
MIB01 Board, MIB01 POWER Board
101
DMB10 Board, TX Board
102
MAIN Board, H/P Board
103
FL Board, KEY Board, LED Board
103
DVD Mechanism Deck (CDM69EH-DVBU101)
104
Base Unit (DVBU101)
104
Optical Pick-Up (KHM-310CAB/C2NP)
105
SW Board, Bracket (Top) Assy
105
RELAY Board
106
Motor (Stocker) Assy (Stocker)(M761)
106
Motor (Roller) Assy (Roller)(M781)
107
Motor (Mode) Assy (Mode)(M771)
107
Rubber Roller (Slider) ASSY
108
Timing Belt (Front/Rear)
108
Cam (Gear)
109
SENSOR Board
109
Assembly
110
How to Install the Cam (Eject Lock)
110
How to Install the Cam (Gear)
110
How to Install the Gear (Mode C)
111
How to Install the Gear (Mode Cam)
111
How to Install the Rotary Encorder (S702), Gear (Stocker Communication)
112
How to Install the Stocker Assy
112
Test Mode
113
Electrical Adjustment
117
Block Diagram - RF Section
120
MIB Section
121
VIDEO Section
122
AMP Section
123
AUDIO Section
124
MAIN Section
125
DIAT TRANSMIT Section
126
Printed Wiring Board - CHANGER Section
127
Schematic Diagram - CHANGER Section
128
Printed Wiring Board - DMB10 Section (Side A)
129
Printed Wiring Board - DMB10 Section (Side B)
130
Schematic Diagram - DMB10 Section (1/4)
131
Schematic Diagram - DMB10 Section (2/4)
132
Schematic Diagram - DMB10 Section (3/4)
133
Schematic Diagram - DMB10 Section (4/4)
134
Printed Wiring Board - MAIN Section (Side A)
135
Printed Wiring Board - MAIN Section (Side B)
136
Schematic Diagram - MAIN Section (1/8)
137
Schematic Diagram - MAIN Section (2/8)
138
Schematic Diagram - MAIN Section (3/8)
139
Schematic Diagram - MAIN Section (4/8)
140
Schematic Diagram - MAIN Section (5/8)
141
Schematic Diagram - MAIN Section (6/8)
142
Schematic Diagram - MAIN Section (7/8)
143
Schematic Diagram - MAIN Section (8/8)
144
Printed Wiring Board - FL/KEY Section
145
Schematic Diagram - FL/KEY Section
146
Printed Wiring Board - LED / H/P Section
147
Schematic Diagram - LED / H/P Section
148
Printed Wiring Board - I/O Section (Side A)
149
Printed Wiring Board - I/O Section (Side B)
150
Schematic Diagram - I/O Section
151
Printed Wiring Board - MIB01 Section (Side A)
152
Printed Wiring Board - MIB01 Section (Side B)
153
Schematic Diagram - MIB01 Section (1/3)
154
Schematic Diagram - MIB01 Section (2/3)
155
Schematic Diagram - MIB01 Section (3/3)
156
Printed Wiring Board - MIB01 POWER Section
157
Schematic Diagram - MIB01 POWER Section
157
Printed Wiring Board - TX Section
158
Schematic Diagram - TX Section
159
Exploded Views
180
Overall Section
180
Front Panel Assy Section
181
Chassis Section-1
182
Chassis Section-2
183
DVD Mechanism Deck Section-1 (CDM69EH-DVBU101)
184
DVD Mechanism Deck Section-2 (CDM69EH-DVBU101)
185
DVD Mechanism Deck Section-3 (CDM69EH-DVBU101)
186
DVD Mechanism Deck Section-4 (CDM69EH-DVBU101)
187
DVD Mechanism Deck Section-5 (CDM69EH-DVBU101)
188
DVD Mechanism Deck Section-6 (CDM69EH-DVBU101)
189
Optical Pick-Up Section (KHM-310CAB/C2NP)
190
Electrical Parts List
191
