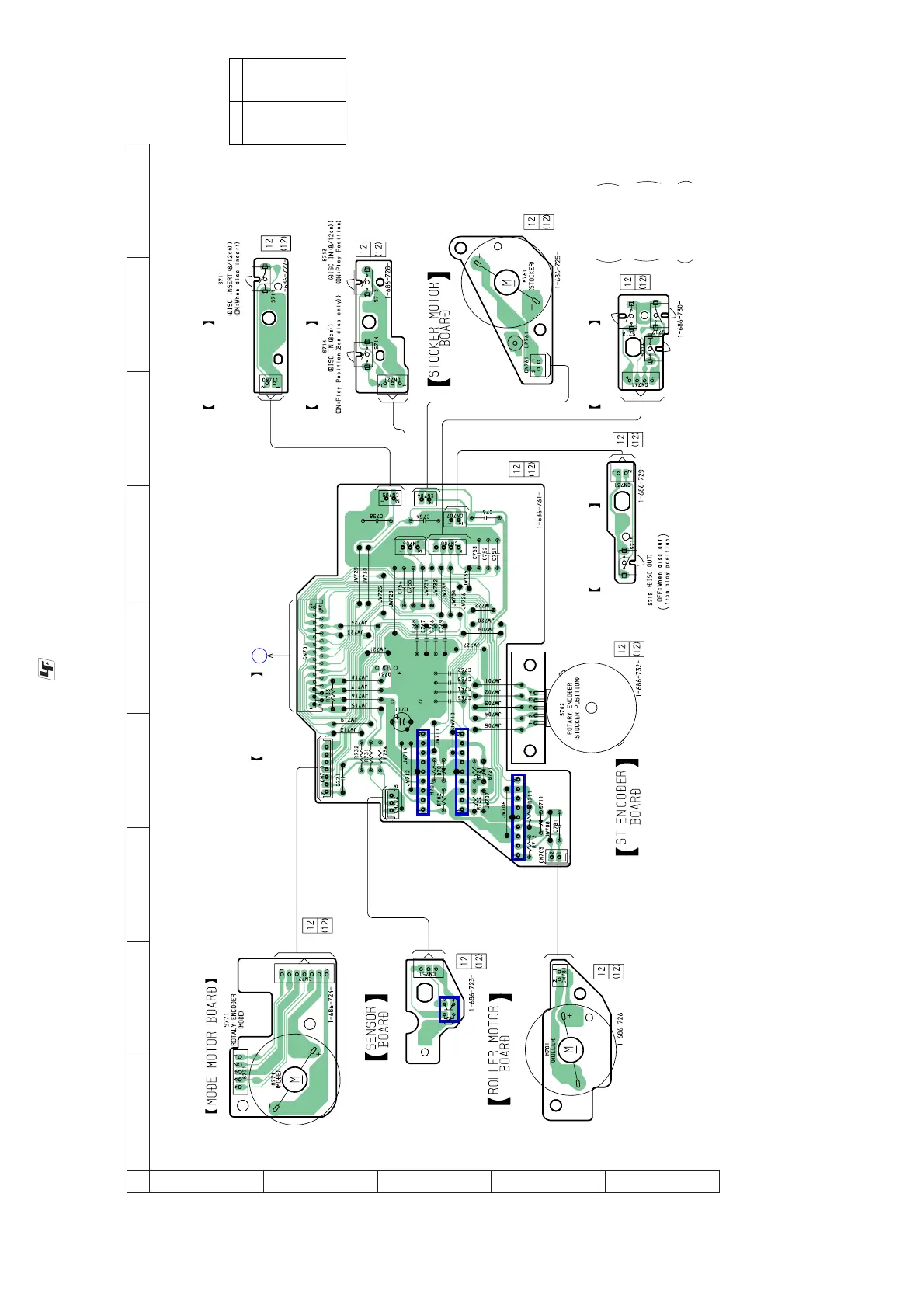

7-2. PRINTED WIRING BOARD – CHANGER SECTION –
• Semiconductor
Location
Ref. No.
Location
D701 C-4 D711 C-4 D721 C-4 IC701 C-4 IC711 D-4 IC721 C-4 IC751 C-2 Q731 B-5
• See page 29 for Circuit Boards Location. :Uses unleaded solder.
IC701
IC721
IC711
IC751
In the midst disc is moving between play position and stocker ON : disc is play position side OFF : disc is stocker side
OFF: In the Midst disc is moving
between play position and stocker
S716 (STOCKER IN/OUT)
S717 (DISC POSITION)
S718 (STOCKING)
ON:The moment disc in/out
from stocker
12
A B
C D
E
34567 9
8
MAIN
BOARD
CN502
(Page 45)
RELAY BOARD
SW(1) BOARD SW(2) BOARD
SW(4) BOARDSW(3) BOARD
G
