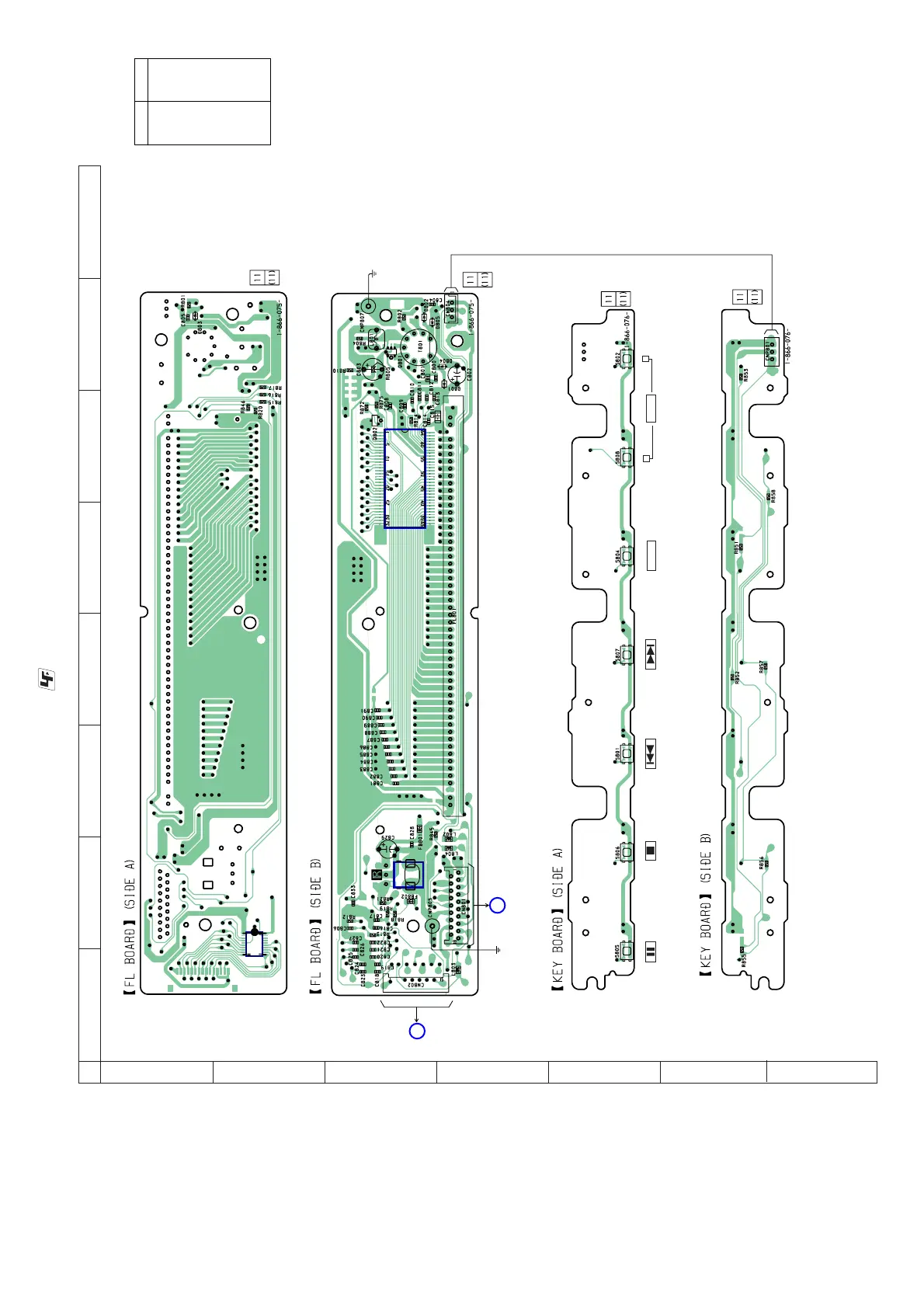

7-20. PRINTED WIRING BOARD – FL/KEY SECTION –
• Semiconductor
Location
Ref. No.
Location
D801 D-7 D802 C-7 D803 B-7 D804 D-7 D805 C-7 IC801 C-2 IC802 B-2 IC803 C-6 Q801 C-7 Q802 C-6
• See page 29 for Circuit Boards Location. :Uses unleaded solder.
IC802
IC801
IC803
E
MAIN BOARD
CN509
(Page 46)
(CHASSIS)
3
1
2
4
5
1
E
(FLUORESENT INDICATOR TUBE)
54
J
LED BOARD
CN803
(Page 57)
(CHASSIS)
18
2
1
3
FUNCTION
+
-
VOLUME
12
A B
C D
E
G
F
34567
8
