6262
HCD-FX100W
HCD-FX100W

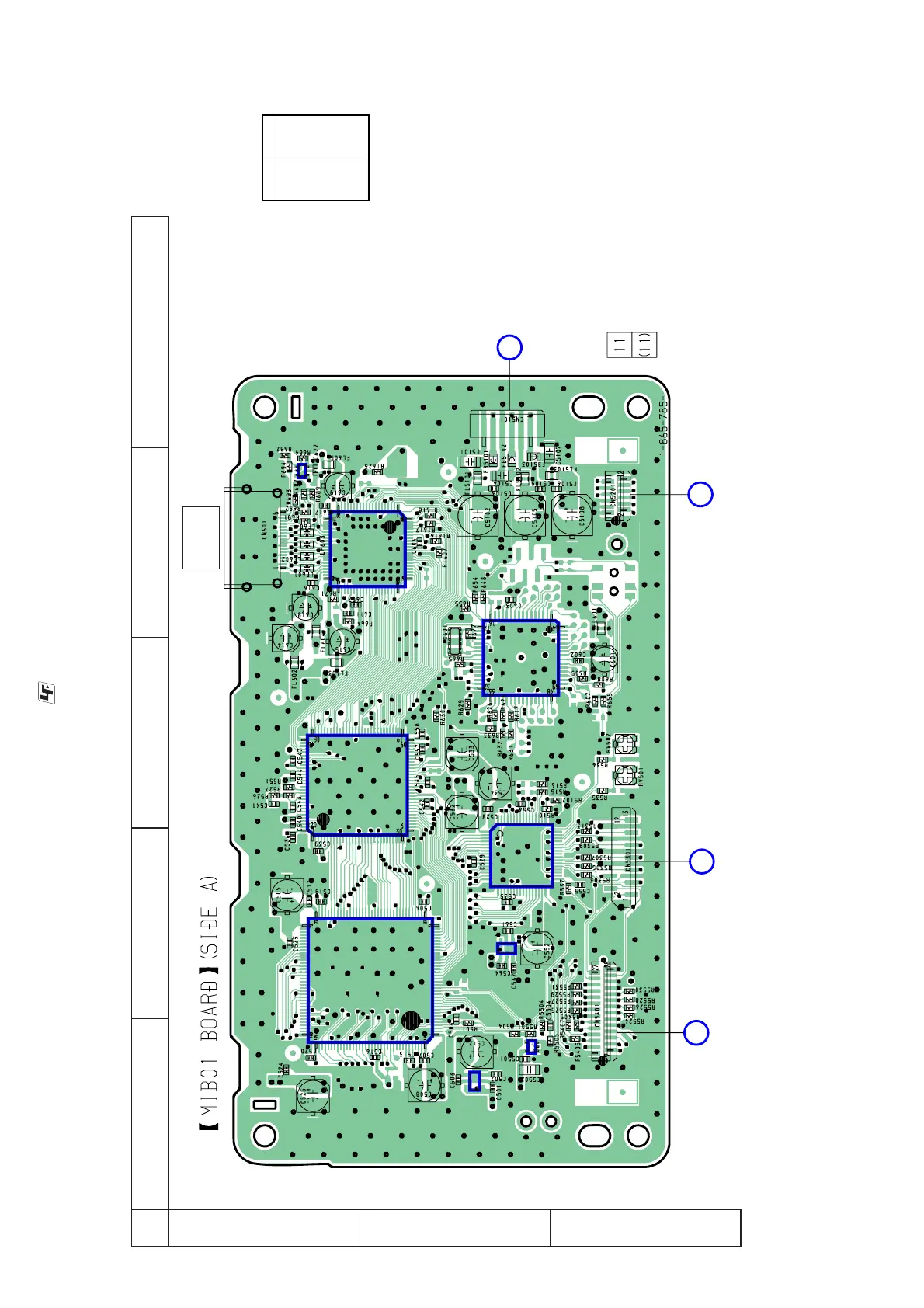

7-27. PRINTED WIRING BOARD – MIB01 SECTION (SIDE A) –
• See page 29 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No.
Location
IC501 B-1
IC503 B-2
IC506 B-2
IC507 B-3
IC508 B-2
IC601 B-3
IC602 B-4
IC603 A-5
IC5401 C-1
IC602
IC603
IC601
IC507
IC503
IC506
IC508
IC5401
IC501
3
3
3
5
1
1
1
1
16
17
32
33 48
64
4
5
5
4
4
1
6
HD MI
OUT
(DVD ONLY)
CN601
1
3
4
5
M
MIB01
POWER
BOARD
CN9002
(Page 62)
K
DMB10
BOARD
CN4802
(Page 39)
I
I/O
BOARD
CN201
(Page 60)
L
DMB10
BOARD
CN4801
(Page 39)
12
A
B
C
345
