HCD-C700/C900

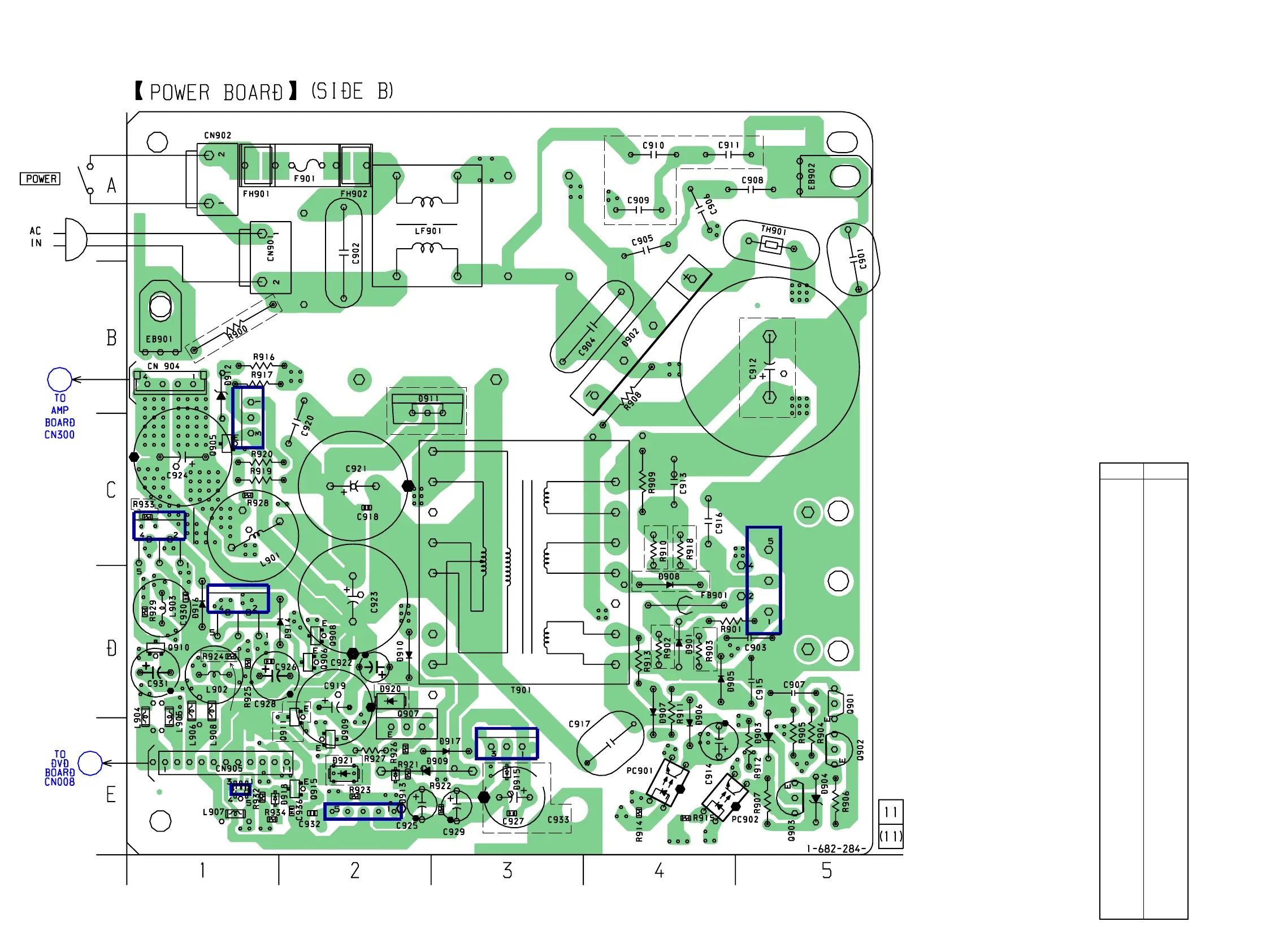

5-29. PRINTED WIRING BOARD – POWER SECTION (SIDE B) – • See page 30 for Circuit Boards Location.
IC902
IC901
IC905
IC904
IC907
IC903
IC906
J
(Page 49)
H
(Page 37)
S901
E
EXCEPT US, CND
US
EXCEPT MX
EXCEPT MX
US
US
UC, CND, MX
UC, CND, MX
US, CND,
MX
US
US, CND,
MX
US, CND, MX
US, CND, MX
EXCEPT MX
US
Ref. No. Location
D901 D-4
D902 B-4
D903 E-5
D904 E-5
D905 D-4
D906 D-4
D907 D-4
D908 D-4
D909 E-2
D910 D-2
D911 B-2
D912 B-1
D913 E-2
D914 D-2
D915 E-3
D916 D-1
D917 E-3
D918 E-1
D920 D-2
D921 E-2
IC901 D-5
IC902 B-1
IC903 D-1
IC904 E-2
IC905 E-3
IC906 C-1
IC907 E-1
Q901 D-5
Q902 E-5
Q903 E-5
Q905 C-1
Q906 D-2
Q907 E-2
Q908 D-2
Q909 E-2
Q910 D-1
Q911 D-2
Q915 E-2
• Semiconductor
Location
