Sony SS-TS500 - Front Panel Section

79
HCD-C700/C900

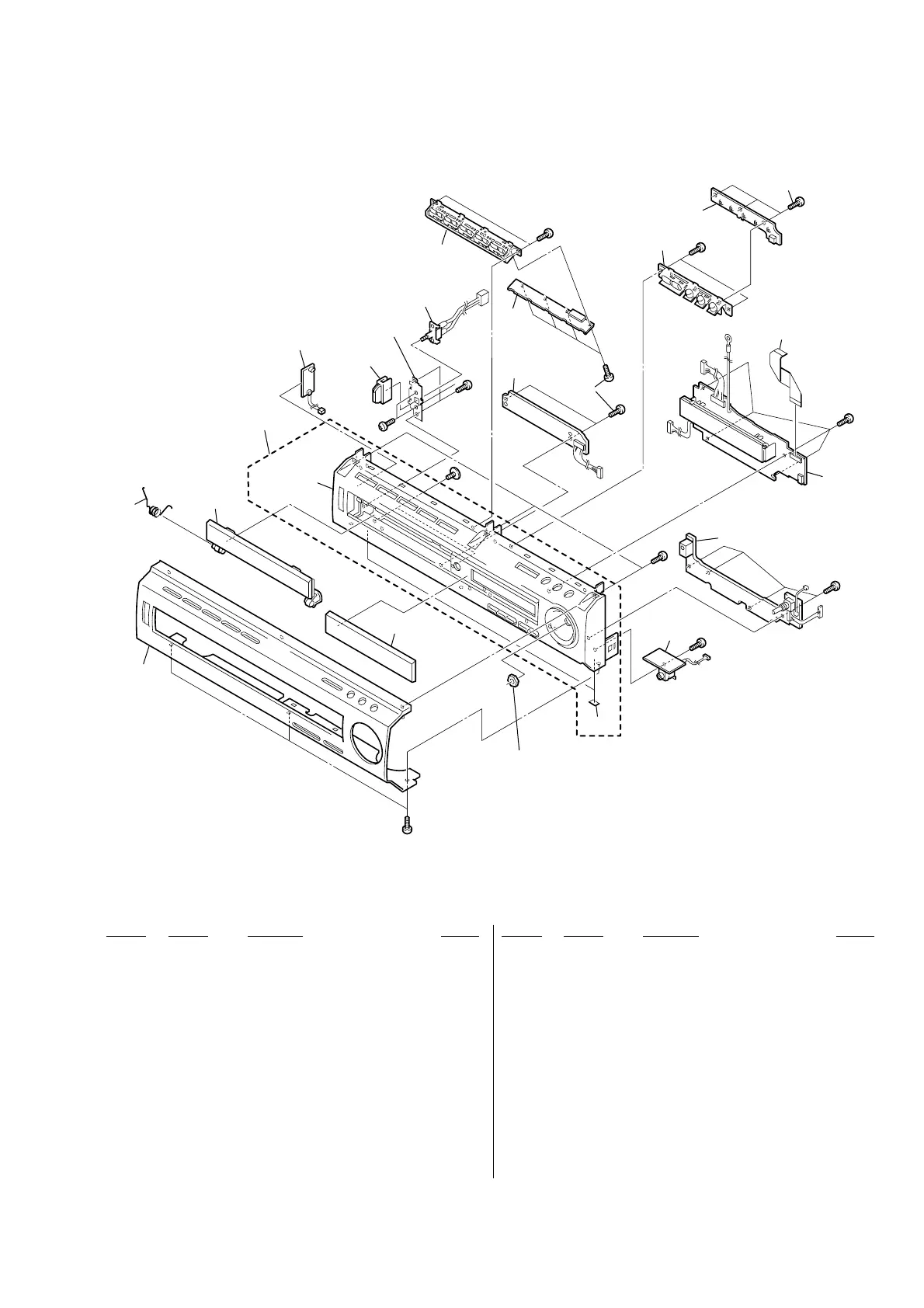

6-3. FRONT PANEL SECTION
#1
#1
#1
#1
#1
#1
#1
#1
#4
not
supplied
not
supplied
101
103
104
105
106
102
118
107
108
109
111
112
113
110
120
120
120
114
115
116
117
Supplied with
S800
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 4-234-934-01 PANEL (AL), FRONT
102 X-4953-863-1 FL WINDOW SUB ASSY
103 X-4953-862-1 LID WINDOW SUB ASSY
104 4-234-948-01 SPRING (LID OPEN)
105 X-4953-865-1 F/PANEL SUB ASSY
106 1-682-002-11 PW-1089 BOARD
107 X-4953-864-1 POWER BUTTON SUB ASSY
108 1-786-210-11 SWITCH, POWER
109 1-681-998-11 DDCON-1089 BOARD
110 A-4726-385-A DS-1089 MOUNTED PC BOARD
(C700:US, C900)
110 A-4726-822-A DS-1089 MOUNTED PC BOARD
(C700:CND, AEP, UK, MY, SP, E, HK, MX, AUS)
111 X-4953-866-1 PLAY BUTTON SUB ASSY
112 4-234-932-01 BUTTON (DVD)
113 1-682-000-11 SW-1089 BOARD
114 1-823-081-11 CABLE, FLEXIBLE FLAT (17 CORE)
115 A-4726-392-A FP-1089 MOUNTED PC BOARD
(C700:US, C900)
115 A-4726-828-A FP-1089 MOUNTED PC BOARD
(C700:CND, AEP, UK, MY, SP, E, HK, MX, AUS)
116 1-681-999-11 FU-1098 BOARD
117 1-682-003-11 HP-1089 BOARD
118 4-234-924-01 FOOT
120 4-931-757-31 SCREW(DIA.2.6X8)(IT3B),TAPPING
Ver. 1.5
