– 29 –
SECTION 6
EXPLODED VIEWS
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
HK: Hong Kong MY: Malaysia
JE : Tourist SP : Singapore
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

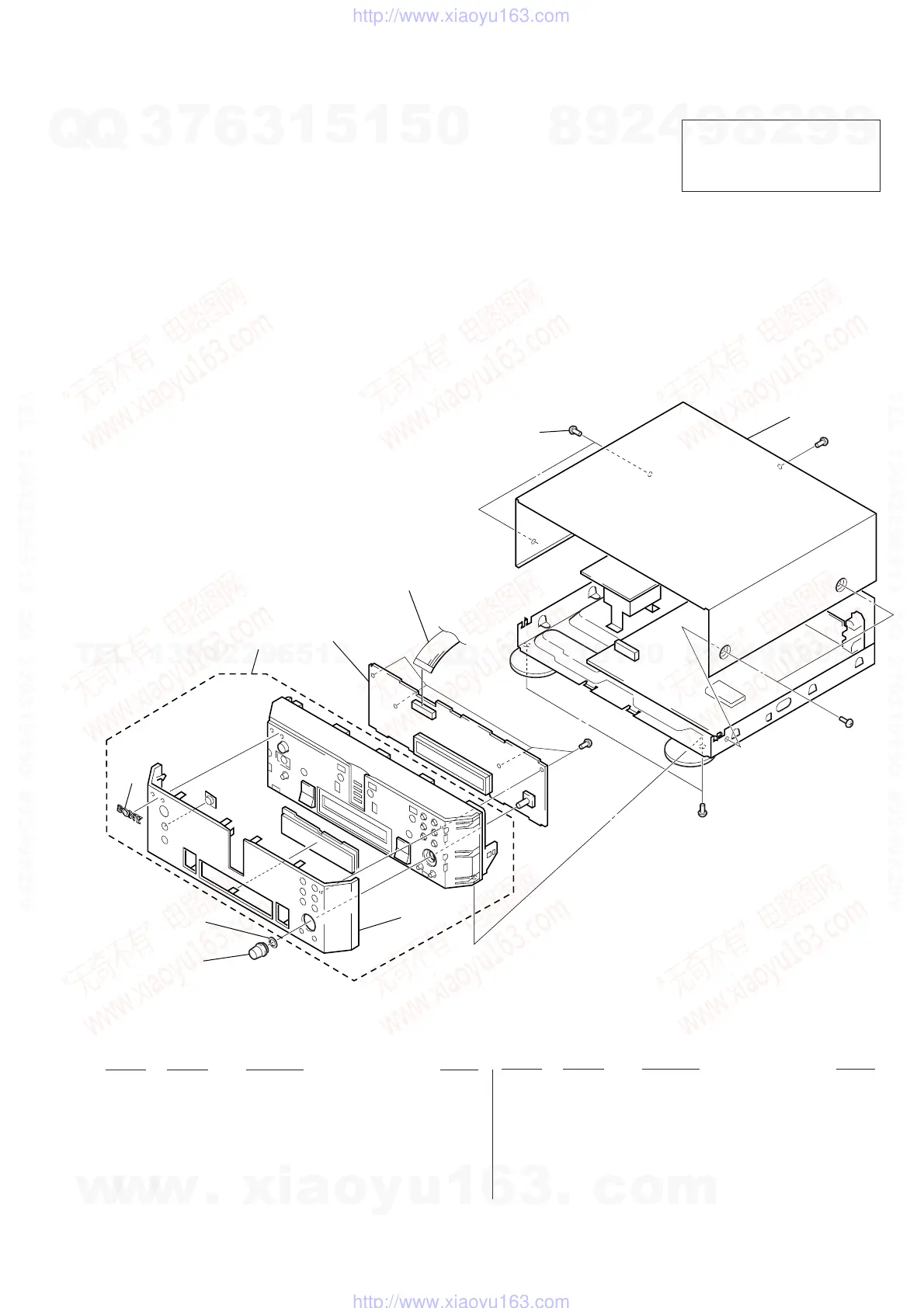

(1) CASE, FRONT PANEL SECTION
6
6
7
#2
3
8
4
5
1
2
10
#2
9
1 4-995-074-01 KNOB (JOG)
2 4-988-161-01 SPRING, RING
3 X-4949-861-1 PANEL ASSY, FRONT (ST-EX880)
3 X-4949-873-1 PANEL ASSY, FRONT (ST-MS717)
* 4 A-4407-398-A PANEL BOARD, COMPLETE (JE)
* 4 A-4407-880-A PANEL BOARD, COMPLETE (AEP, UK)
* 4 A-4407-884-A PANEL BOARD, COMPLETE (MY, SP, HK)
5 1-773-110-11 WIRE (FLAT TYPE) (19 CORE)
6 3-363-099-01 SCREW (CASE 3 TP2)
* 7 4-900-196-11 CASE
8 4-951-620-01 SCREW (2.6X8), +BVTP
9 4-962-708-01 EMBLEM (4-A), SONY
10 4-995-083-21 PLATE (ST), ORNAMENTAL (ST-EX880)
10 4-995-083-31 PLATE (ST), ORNAMENTAL (ST-MS717)
