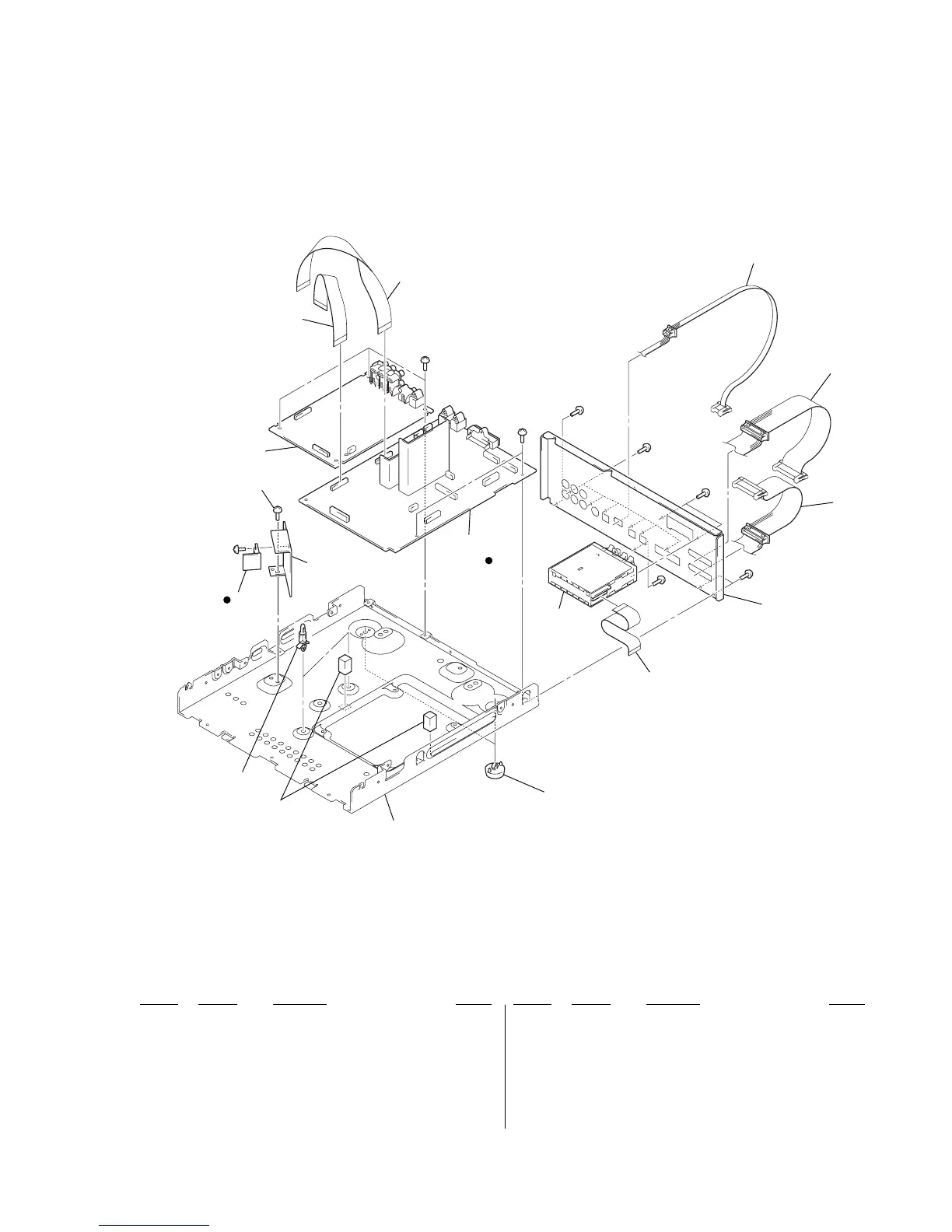

6-2. CHASSIS SECTION
54
55
53
63
#1
#1
not supplied
#1
#1
#1
#1
#1
#1
52
(Including A)
A
51
not supplied
not supplied
62
61
60
56
57
58
59
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 51 4-924-098-01 HOLDER, PC BOARD
52 A-4476-210-A MAIN BOARD, COMPLETE
53 A-4476-212-A DSP BOARD, COMPLETE
54 1-757-599-11 WIRE (FLAT TYPE) (21 CORE)
55 1-757-600-11 WIRE (FLAT TYPE) (23 CORE)
56 1-757-629-11 CORD (WITH CONNECTOR) 5P
57 1-757-631-11 CORD (WITH CONNECTOR) 20P
58 1-757-630-11 CORD (WITH CONNECTOR) 19P
59 4-232-327-51 PANEL (ST), BACK
60 1-773-004-11 WIRE (FLAT TYPE) (15 CORE)
61 1-693-529-11 TUNER PACK (FM/AM)
62 4-965-822-01 FOOT
63 3-970-608-01 SUMITITE (B3), +BV
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
