Sony STR-KS1000 User Manual

44
STR-KS1000
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-661-484-01 VOLUME KNOB (SL06)
2 X-2103-260-1 FRONT PANEL ASSY (AEP, UK)
2 X-2103-267-1 FRONT PANEL ASSY (SP, MY)
2 X-2108-886-1 FRONT PANEL ASSY (E51, AR)
3 4-977-358-01 CUSHION
4 A-1156-525-A DISPLAY BOARD, COMPLETE
5 3-087-053-01 +BVTP2.6 (3CR)
6 3-070-883-41 SCREW, TAPPING
7 2-661-487-01 CASE (SL06)
9 A-1156-523-A ADCC BOARD, COMPLETE
11 3-378-435-01 CUSHION, SARANET
RV700 1-418-725-51 ENCODER, ROTARY (12 TYPE)
(MASTER VOLUME)
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

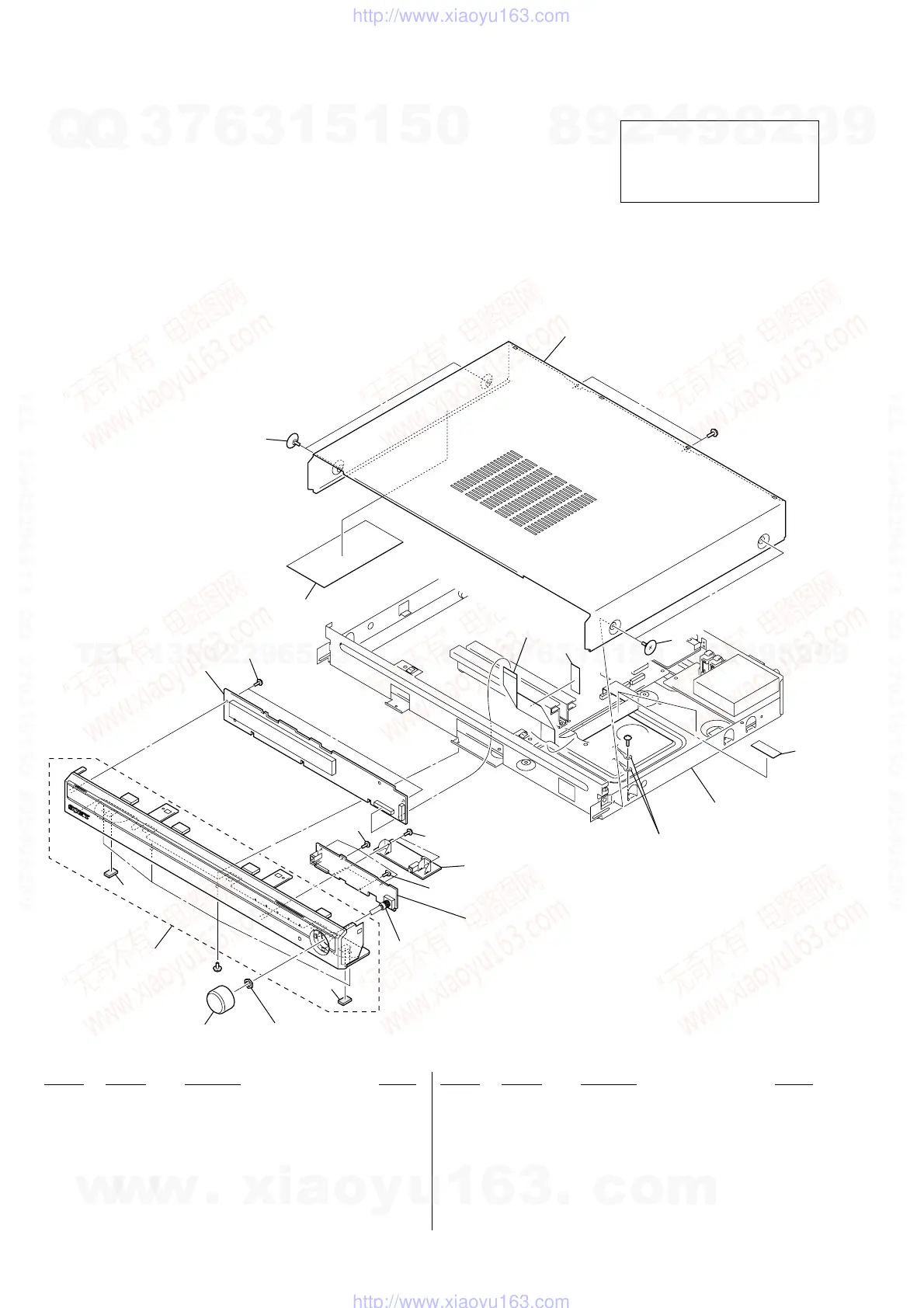

6-1. OVERALL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AR : Argentina model
E51: Chilean and Peruvian models
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
1
main section
not supplied
(VOLME board)
RV700
supplied with RV700
not supplied
#2
#3
2
4
5
5
5
5
3
3
#2
9
6
11
11
6
7
not supplied
not supplied
Ver. 1.2
MY: Malaysia model
SP : Singapore model
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony STR-KS1000 Specifications

General

Type	AV receiver
Channels	5.1
HDMI Inputs	2
Weight	8.6 kg
HDMI Output	1
Component Video Inputs	2
Component Video Output	1
Digital Audio Inputs (Optical)	2
Digital Audio Inputs (Coaxial)	1
Headphone Jack	Yes
Tuner	AM/FM
Audio Formats Supported	Dolby Digital, DTS
Inputs	HDMI, Component Video, Digital Audio (Optical/Coaxial), Analog Audio
Outputs	HDMI, Component Video

Summary

Servicing Notes

Unleaded Solder Procedures

Details the requirements and characteristics of unleaded solder for electronics repair.

General Information

Location of Controls

Describes the location and function of front and rear panel controls.

Display Indicators

Explains the meaning of various indicators on the receiver's display.

Disassembly Procedures

Disassembly Flow

Outlines the sequence for disassembling the unit.

Case (SL06) Disassembly

Details the removal of the main case.

Front Panel Assembly Disassembly

Details the removal steps for the front panel assembly.

Test Modes

Preset and Clear Modes

Explains modes for resetting presets and clearing all data for service.

Diagnostic and Control Modes

Details modes like FL Check, RDS, VACS Off, Tuner Check for diagnostics.

Diagrams

System Block Diagrams

Shows system block diagrams for MAIN, AMP, HDMI, and Power Supply sections.

Printed Wiring Boards

Shows component layouts for IO, ADCC, MAIN, SPEAKER, and DISPLAY boards.

Schematic Diagrams

Presents detailed circuit schematics for IO, Main, and Display sections.

Exploded Views

Overall Unit Disassembly View

An exploded view showing the overall assembly and parts.

Main Section Disassembly View

An exploded view detailing the main section of the unit for disassembly.
