STR-KS1000

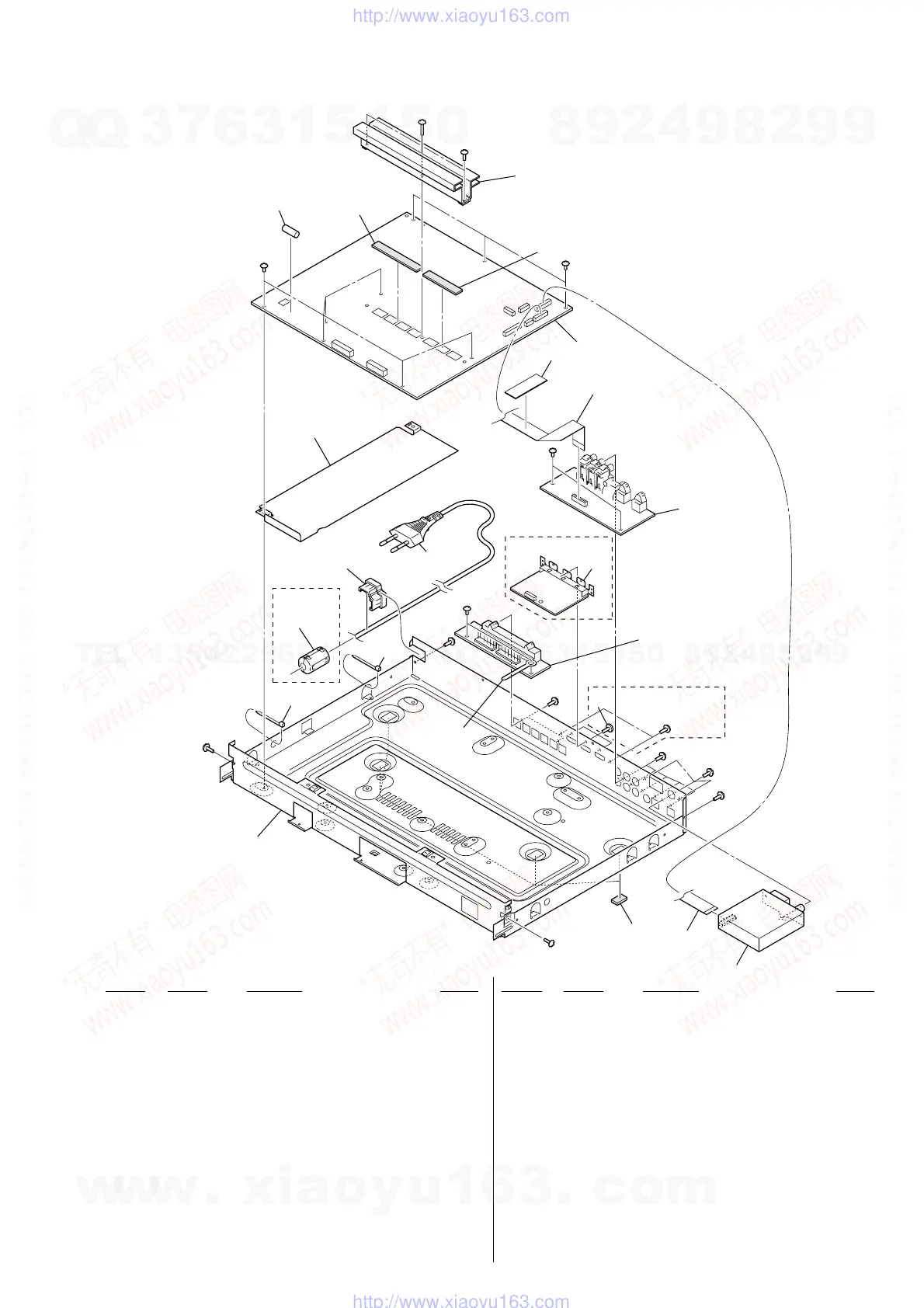

6-2. MAIN SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 51 3-703-244-00 BUSHING (2104), CORD
0 52 1-777-071-83 CORD, POWER (AEP, UK, SP, MY, E51)
0 52 1-783-941-12 CORD, POWER (AR)
53 4-254-947-11 SHEET (AMP), RADIATION
54 4-254-947-01 SHEET (AMP), RADIATION
55 A-1156-515-A MAIN BOARD, COMPLETE
(AEP (for HT-SS1000), UK (for HT-SS1000))
55 A-1156-518-A MAIN BOARD, COMPLETE (SP, MY)
55 A-1156-520-A MAIN BOARD, COMPLETE (E51)
55 A-1166-604-A MAIN BOARD, COMPLETE
(AEP (for HT-SF1000), UK (for HT-SF1000))
55 A-1207-309-A MAIN BOARD, COMPLETE (AR)
56 3-378-435-01 CUSHION, SARANET
57 A-1156-521-A IO BOARD, COMPLETE
58 A-1158-394-A HDMI BOARD, COMPLETE (EXCEPT E51, AR)
59 1-827-720-11 WIRE (FLAT TYPE) (11 CORE)
(SP, MY, E51, AR)
59 1-828-982-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
60 4-977-358-01 CUSHION
61 1-693-675-11 TUNER (E51, AR)
61 1-693-676-11 TUNER (AEP, UK)
61 1-693-678-11 TUNER (SP, MY)
62 3-701-748-00 CLAMP
* 63 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (AEP, UK)
0F901 1-532-506-33 FUSE (T6.3AL/250V)
#1 7-685-871-01 SCREW +BVTT 3X6 (S) (AEP, UK, SP, MY)
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
