instruction manual.
on or off.
appears here.
same time.
function.
field.
f
SLEEP
LFE

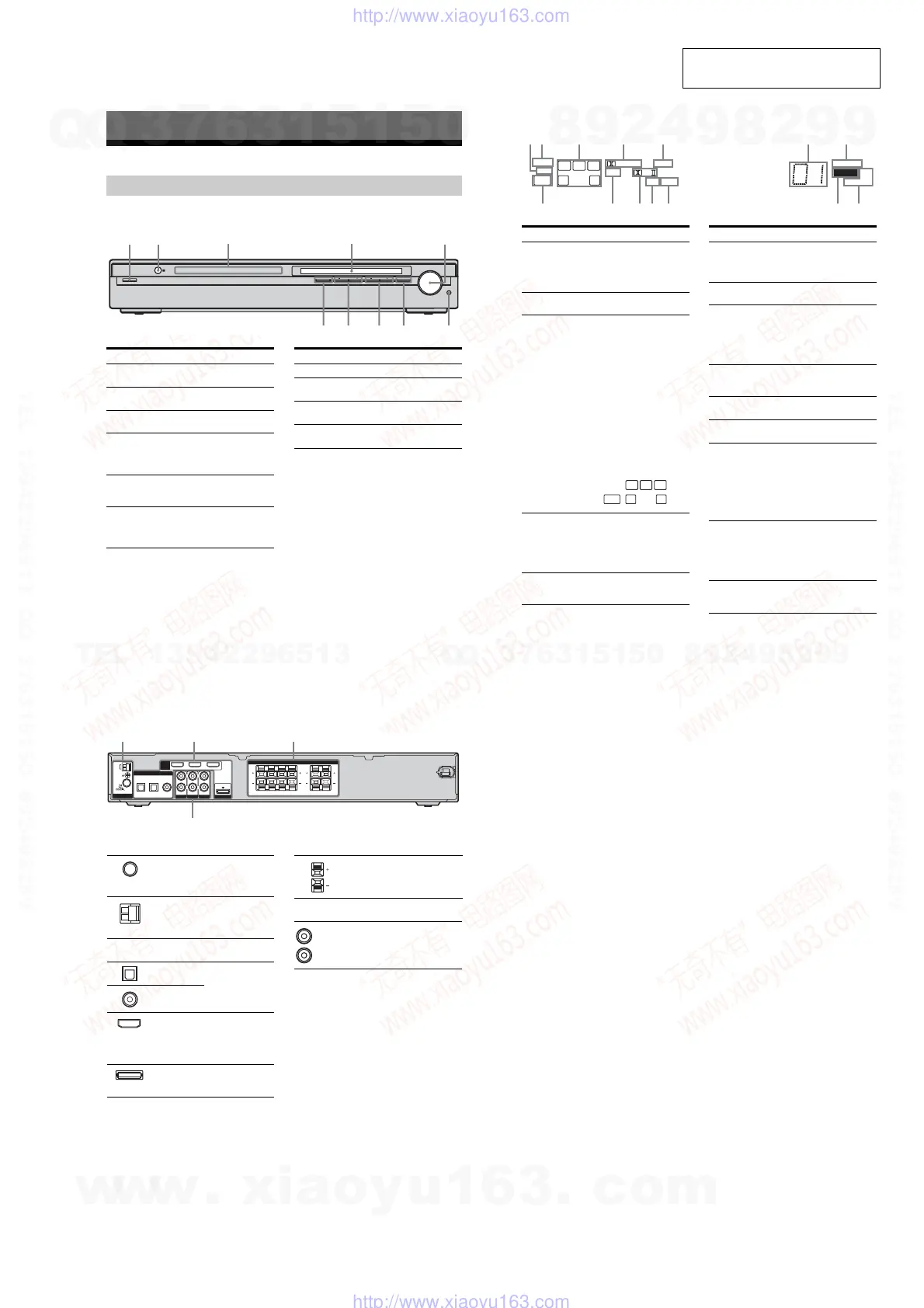

Name Function
A LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect) channel
and the LFE channel signal is
actually being reproduced.
B SLEEP Lights up when the sleep timer is
activated.
C Playback
channel
indicators
L
R
C
SL
SR
S
The letters (L, C, R, etc.) indicate
the channels being played back.
The boxes around the letters vary
to show how the receiver
downmixes the source sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
D ;
DIGITAL Lights up when receiver is
decoding Dolby Digital signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections.
E HDMI Lights up when a playback
component is connected to this
receiver using a HDMI jack.
L
CR
SL SR
SW
Name Function
F Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations.
G D.RANGE Lights up when dynamic range
compression is activated.
H Tuner
indicators
Lights up when using the
receiver to tune in radio stations,
etc.
Note
“RDS” lights up for models of
area code CEL, CEK only.
I MEMORY Lights up when a memory
function, such as Preset Memory,
etc., is activated.
J COAX Lights up when the DVD input is
selected.
K OPT Lights up when the VIDEO 2
input is selected.
L ;PL(II) “; PL” lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“; PLII” lights up when the
Pro Logic II Movie/Music
decoder is activated.
M DTS Lights up when the receiver is
decoding DTS signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections.
N SW Lights up when the audio signal
is output from the
SUBWOOFER jack.
receiver.
receiver.
player, etc. The
tuner. An image and
