STR-KS1100
7

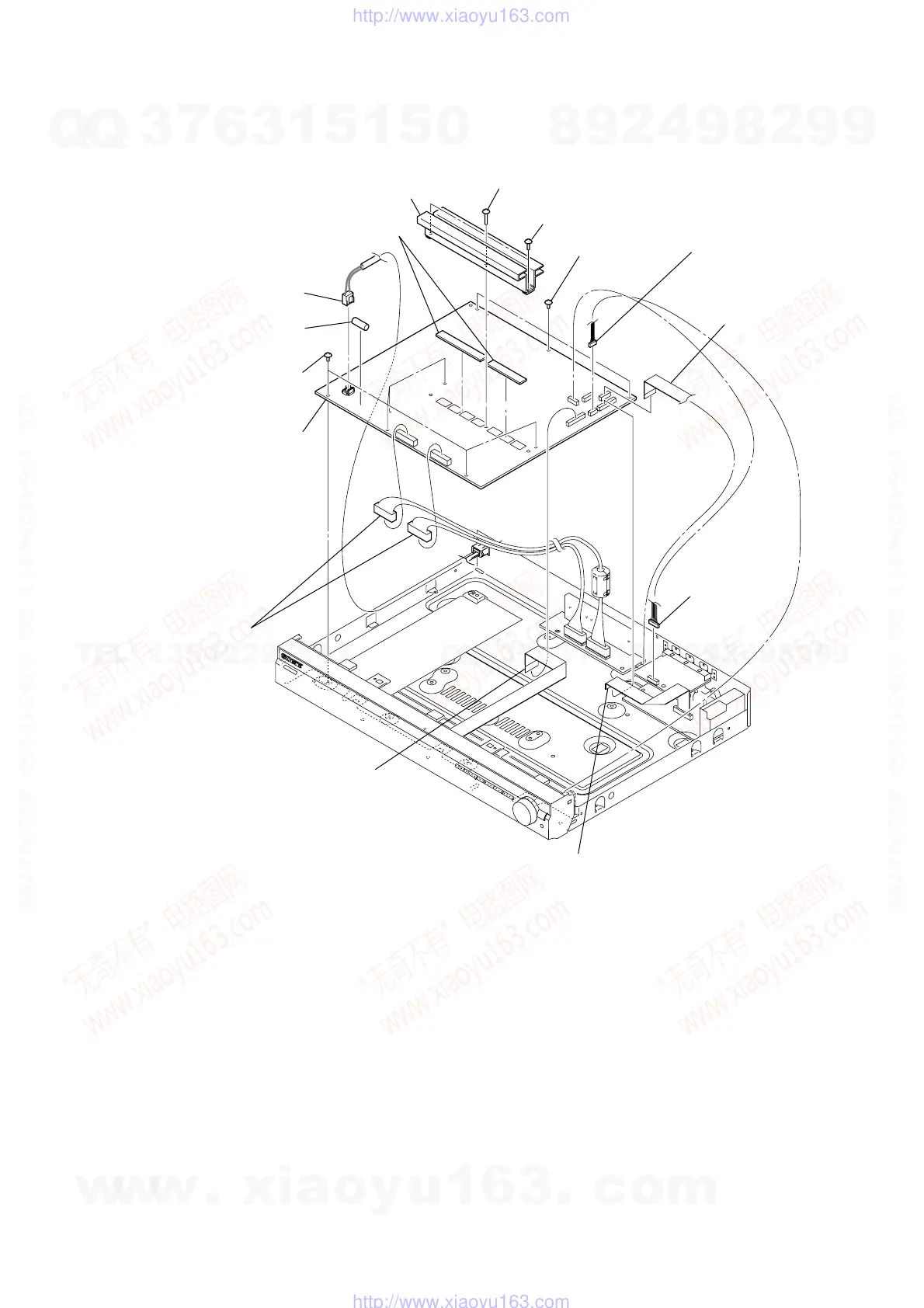

2-5. MAIN BOARD
8
screw
(BVTP3
×
14)
0
heat sink (AMP)
9
two screws
(BVTP3
×
10)
qf
three screws
(BVTP3
×
8)
qd
six screws
(BVTP3
×
8)
qg
MAIN board
7
two connector
(CN302, CN303)
3
wire (flat type) (11 core)
(CNS195)
4
connector (CNP196)
2
wire (flat type) (21 core)
(CNS198)
1
wire (flat type) (17 core)
(CNS193)
6
connector
(CN901)
qa
two radiation sheets (AMP)
qs
fuse (F901)
