This
section
describes
about
selecting
the
speaker
configuration
for
the
surround
—_
,
2
system
and
then
adjusting
the
speaker
volume
and
the
delay
time
of
the
rear
:
speakers so that you can enjoy the Dolby surround sound.

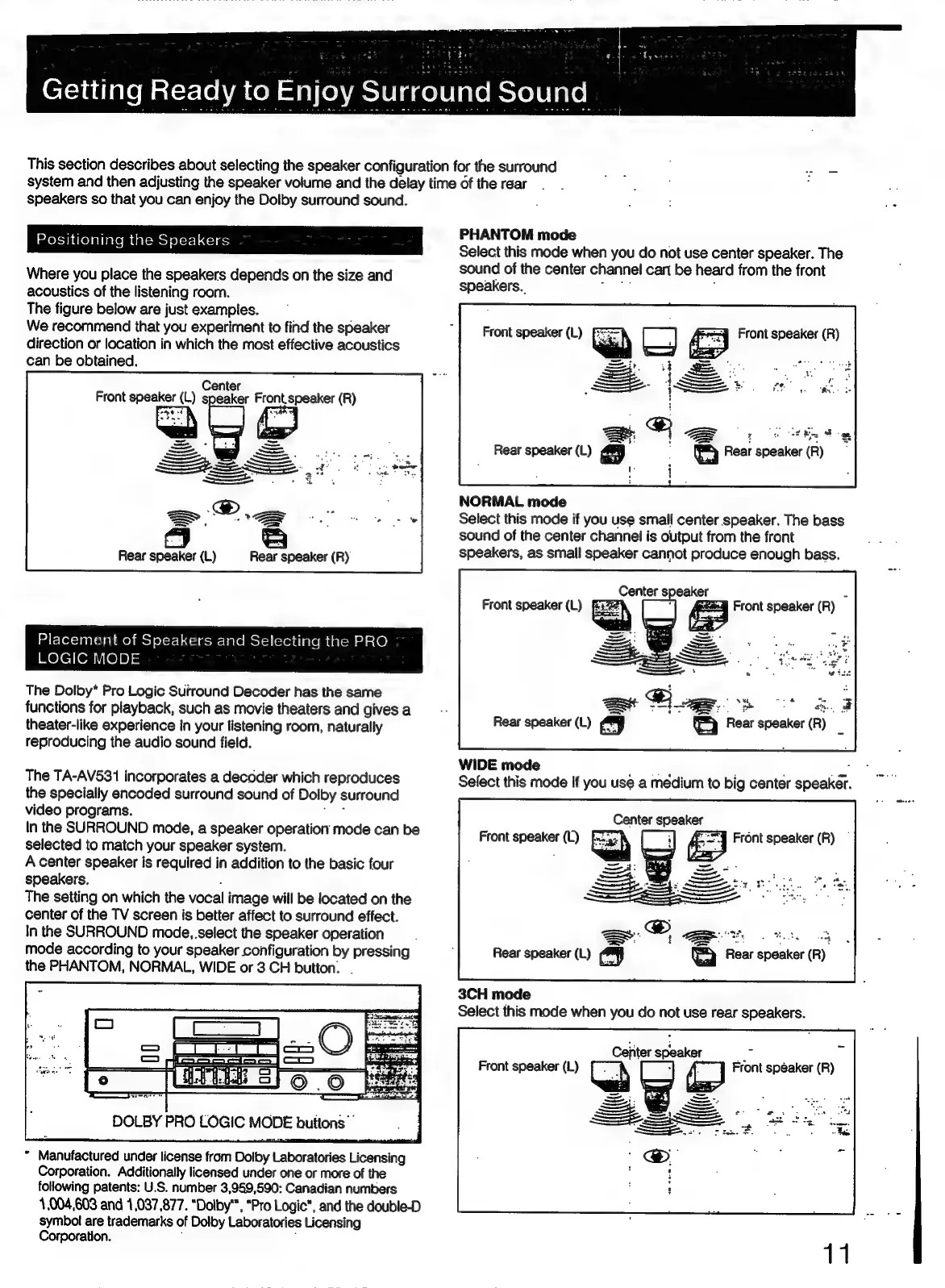

Positioning the Speakers
Where you place the speakers depends on the size and
acoustics of the listening room.
The figure below are just examples.
We recommend that you experiment to find the speaker
direction or location in which the most effective acoustics
can be obtained.
Center
Front speaker (L) epeaker Front speaker (R)
=
Rear speaker (L) Rear speaker (R)
lea rclot=1 tal ctni me) Mol olctcl ci ecmclale Mle) (clold atom talcum oy 310)
LOGIC MODE
The Dolby* Pro Logic Surround Decoder has the same
functions for playback, such as movie theaters and gives a
theater-like experience in your listening room, naturally
reproducing the audio sound field.
The TA-AV531 incorporates a decoder which reproduces
the specially encoded surround sound of Dolby surround
video programs.
In the SURROUND mode, a speaker operation’ mode can be
selected to match your speaker system.
A center speaker is required in addition to the basic four
speakers.
The setting on which the vocal i image will be located on the
center of the TV screen is better affect to surround effect.
In the SURROUND mode, select the speaker operation
mode according to your speaker configuration by pressing
the PHANTOM, NORMAL, WIDE or 3 CH button:
DOLBY PRO LOGIC MODE buttons”
*
Manufactured
under
license
from
Dolby
Laboratories
Licensing
Corporation.
Additionally
licensed
under
one
or
more
of
the
following
patents:
U.S.
number
3,959,590:
Canadian
numbers
1,004,603
and
1,037,877.
“Dolby”,
“Pro
Logic’,
and
the
double-D
symbol
are
trademarks
of
Dolby
Laboratories
Licensing
Corporation.
PHANTOM mode
Select this mode when you do not use center speaker. The
sound of the center channel cart be heard from the front
speakers.
Front speaker (L) fF Front speaker (R)
ee Bo
— . eee
Sir. 3 = |... we ER OE
J . % a ass
=... . e
= S= FT tele
Rear speaker (L) @y ‘i gs Rear speaker (R)
-
1
1
’
NORMAL mode
Select this mode if you use small center speaker. The bass
sound of the center channel is output from the front
speakers, as small speaker cannot produce enough bass.
age enter Ss ae
eh.
S>
Rear speaker (L) : Rear speaker (R)
Fin]
WIDE mode
Select this mode if you use a medium to big center spsare:
Center speaker
Rear speaker (L) | Rear speaker (R)
1)
3CH mode
Select this mode when you do not use rear speakers.
Cejiter iccoker .
Front speaker (L) 2 ® Front spéaker (R)
