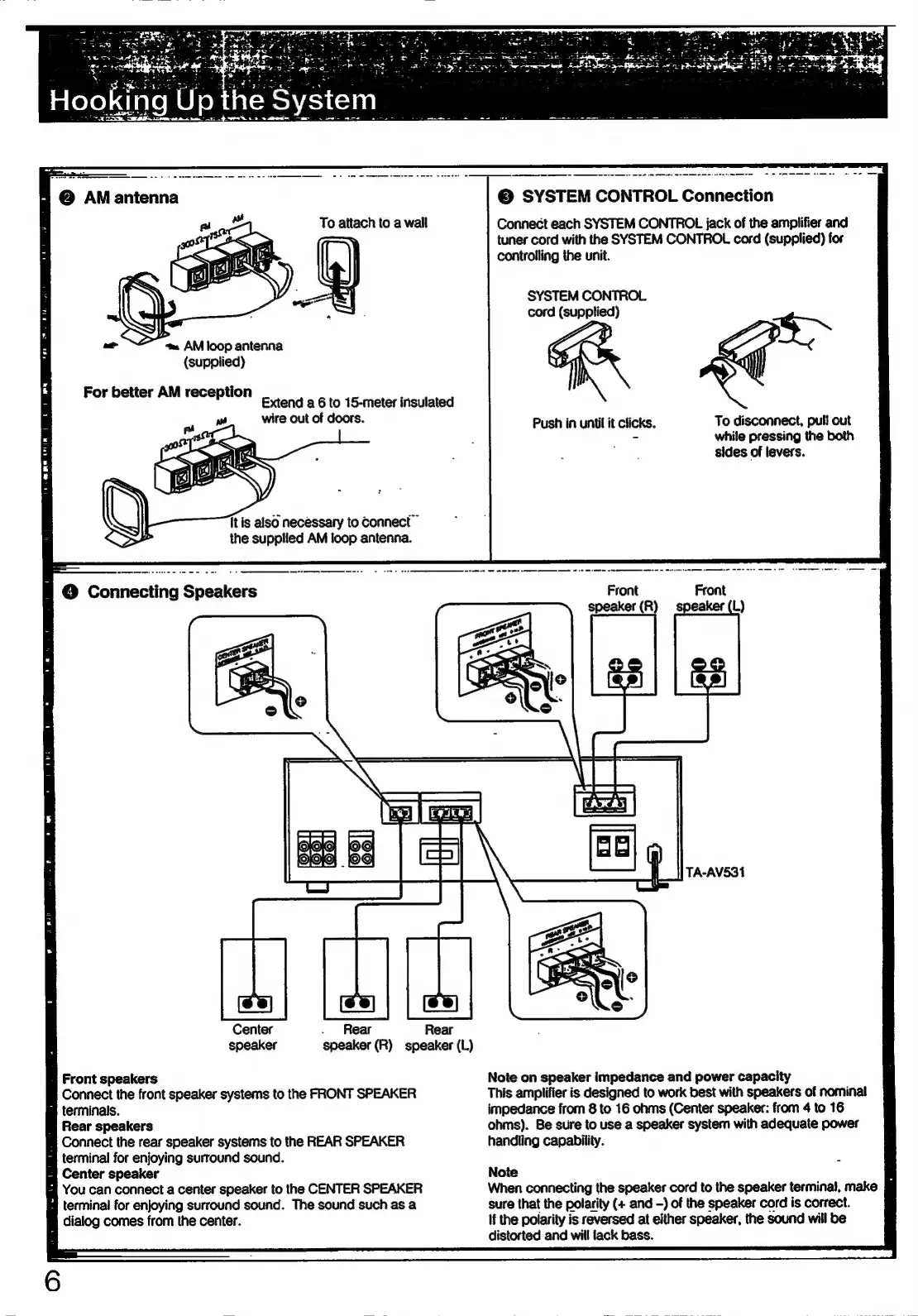

Hooking Up
Ce a OE Se
@ AM antenna
S)
To attach to a wall
© SYSTEM CONTROL Connection
Connect each SYSTEM CONTROL jack of the amplifier and
tuner cord with the SYSTEM CONTROL cord (supplied) for
controlling the unit.
SYSTEM CONTROL
cord (supplied)
2a
To disconnect, pull out
while pressing the both
sides of levers.
AM loop antenna
(supplied)
For better AM reception
P Extend a 6 to 15-meter insulated
wire
out
of
doors.
Push
in
until
it
clicks.
It is also necessary to Connect™
the supplied AM loop antenna.
@ Connecting Speakers
Rear Rear
Center :
speaker (R) speaker (L)
speaker
Note on speaker impedance and power capacity
This amplifier is designed to work best with speakers of nominal
impedance from 8 to 16 ohms (Center speaker: from 4 to 16
m Rear speakers ohms). Be sure to use a speaker system with adequate power
m Connect the rear speaker systems to the REAR SPEAKER handling capability.
im terminal for enjoying surround sound. 7
4
Center
speaker
Note
;
™ You can connect a center speaker to the CENTER SPEAKER When connecting the speaker cord to the speaker terminal, make
= terminal for enjoying surround sound. The sound such as a sure that the polarity (+ and -) of the speaker cord is correct.
dialog comes from the center. If the polarity is reversed at either speaker, the sound will be
: distorted and will lack bass.
& Front speakers
Connect the front speaker systems to the FRONT SPEAKER
a terminals.
