Sony Trinitron PVM-14L4 Service Manual

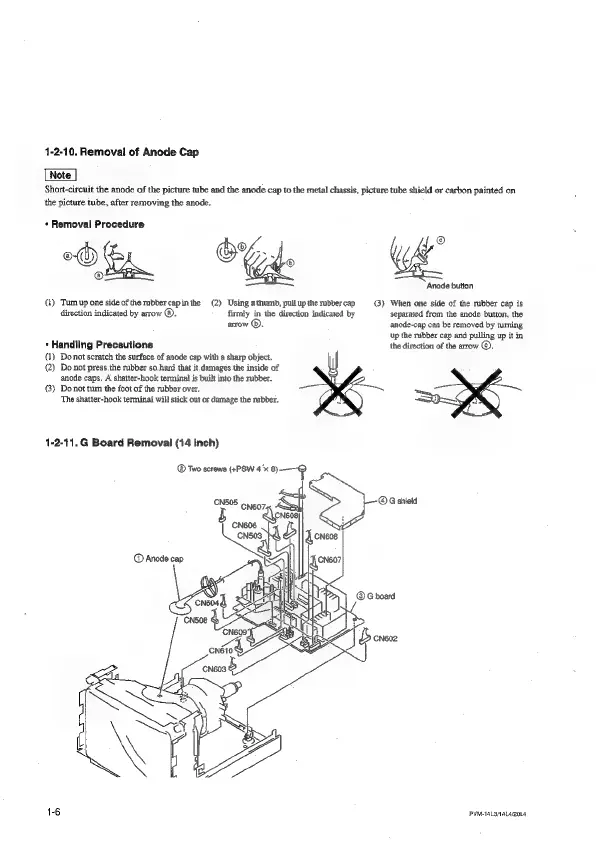

1-2-10. Removal of Anode Cap
Note
Short-circuit the anode of the picture tube and the anode cap to the metal chassis, picture tube shield or carbon painted on
the picture tube, after removing the anode.
+ Removal Procedure
‘4, ©
®
Anode button
(1) Turn up one side of the rubber cap inthe (2) Using a thumb, pull up the rubber cap (3) When one side of the rubber cap is
direction indicated by arrow ©. firmly in the direction indicated by separated from the anode button, the
arrow ©. anode-cap can be removed by turing
up the rubber cap and pulling up it in
* Handling Precautions the direction of the arrow ©),
(1) Do not scratch the surface of anode cap with a sharp object.
(2) Do not press the rubber so.hard that it damages the inside of
anode caps. A shatter-hook terminal is built into the rubber.
(3) Do not turn the foot of the rubber over.
‘The shatter-hook terminal will stick out or damage the rubber.
1-2-11.G Board Removal (14 inch)
@® Two screws (+PSW 4°« amid
CN5O5 On go7 Sl) © G shield
© Anode cap
(a
Faw
CN604
CNS0B © e
CNe0eY
%
cnétoS
Fi CN6O3 &
A
1-6
PYM-algiaL4a2oL4
