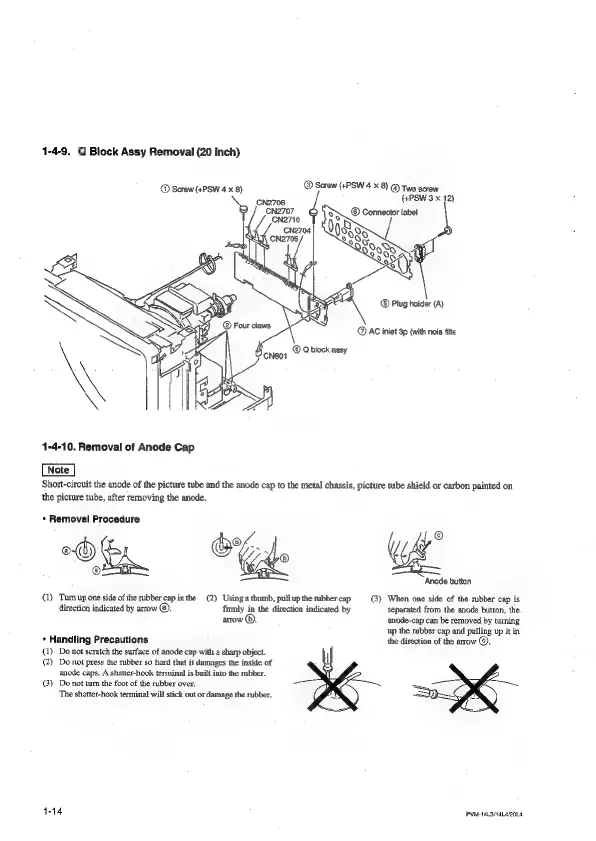

1-4-9. Q Block Assy Removal (20 inch)
® Screw (+PSW 4 x 8) @ Sorew (+PSW 4 x 8) @ Two screw
(+PSW 3 x 12)
© Connector label
1-4-10. Removal of Anode Cap
Short-circuit the anode of the picture tube and the anode cap to the metal chassis, picture tube shield or carbon painted on
the picture tube, after removing the anode.
+ Removal Procedure
“Of
(1) Tum up one side of the rubber cap inthe (2) Usinga thumb, pull upthe rubbercap (3) When one side of the rubber cap is
©
y
Anode button
direction indicated by arrow @). firmly in the direction indicated by separated from the anode button, the
arrow ©). anode-cap can be removed by turning
up the rubber cap and pulling up it in
+ Handling Precautions the direction of the arrow ©.
(1) Do not scratch the surface of anode cap with a sharp object.
(2) Do not press the mbber so hard that it damages the inside of
anode caps. A shatter-hook terminal is built into the rubber.
(3) Do not turn the foot of the rubber over.
‘The shatter-hook terminal will stick out or damage the rubber.
PYN-4La/4L4r20L4
