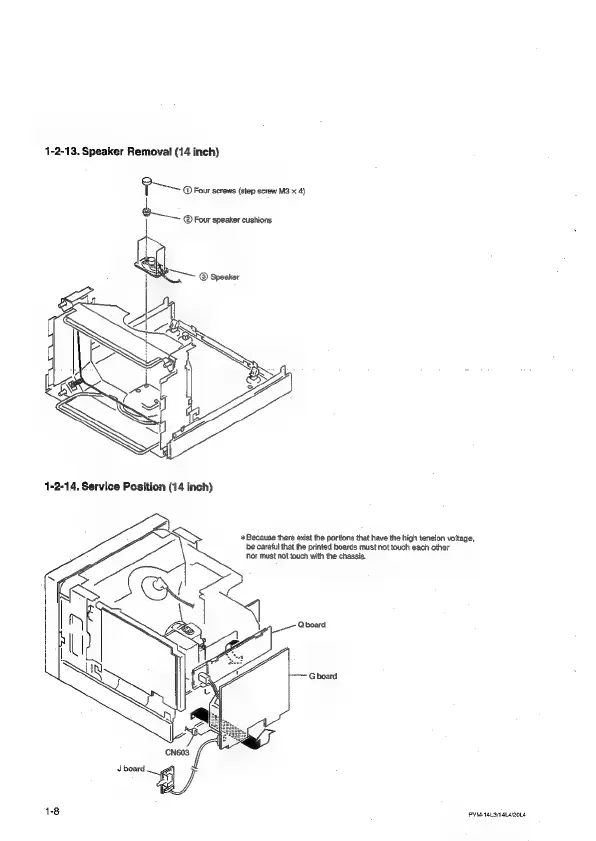

1-2-13.
Speaker
Removal
(14
inch)
T-——~
@
Four
screws
(step
screw
M3
x
4)
|
oO
@
Four
speaker
cushions
Because
there
exist
the
portions
that
have
the
high
tension
voltage,
be
careful
that
the
printed
boards
must
not
touch
each
other
or
must
not
touch
with
the
chassis.
1-8
PVN
14L3/14L4i20L4
