11
XM-504Z
SECTION 4
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•Abbreviation
CND : Canadian model
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description Remark

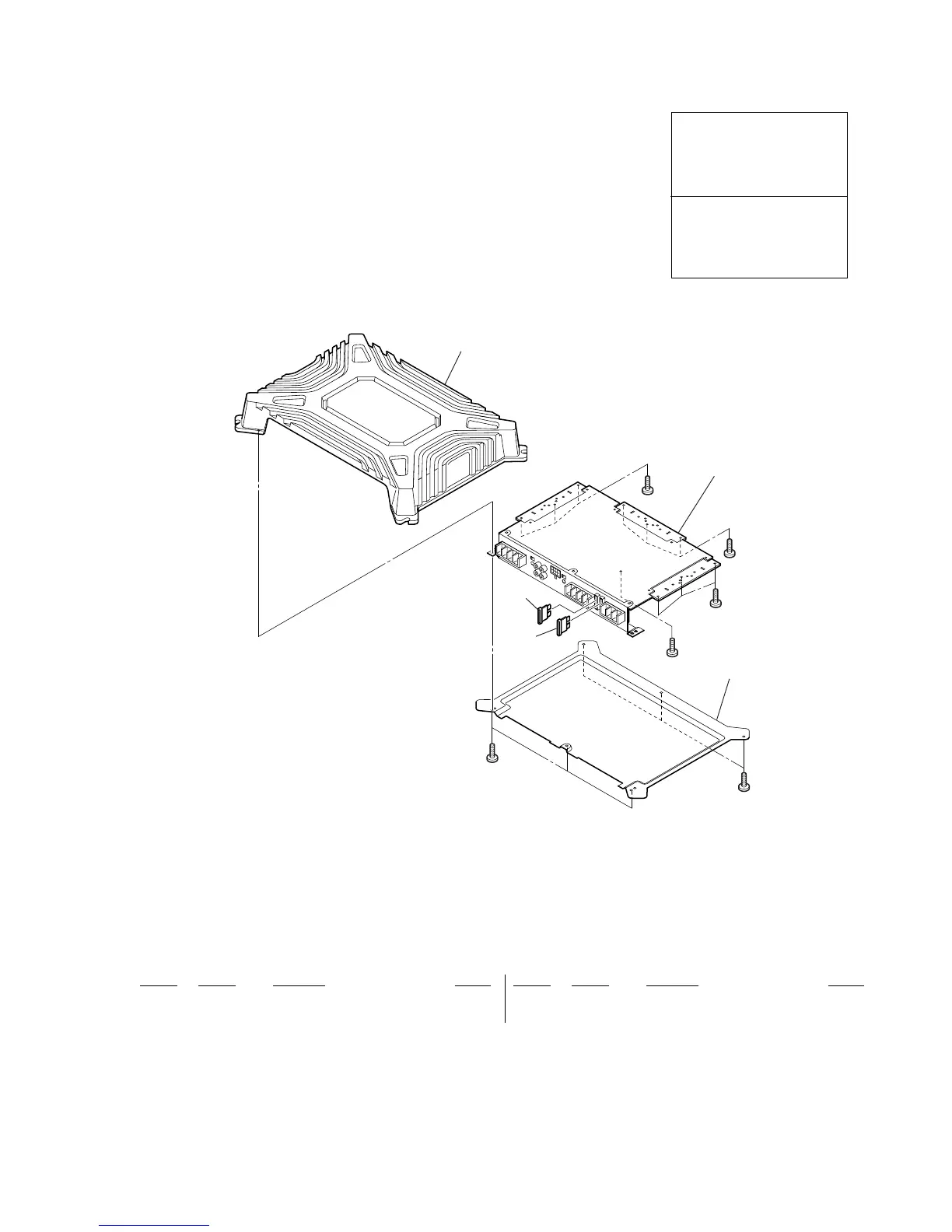

4-1. HEAT SINK (MAIN) SECTION
R
Ref. No. Part No. Description Remark
R
0 F901 1-576-256-11 FUSE (BLADE TYPE) (AUTO FUSE) (25A)
0 F902 1-576-256-11 FUSE (BLADE TYPE) (AUTO FUSE) (25A)
#1 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
#1
#1
not supplied
MAIN board section
not supplied
#1
#1
#1
#1
F901
F902
To Next Page
