12
XM-504Z

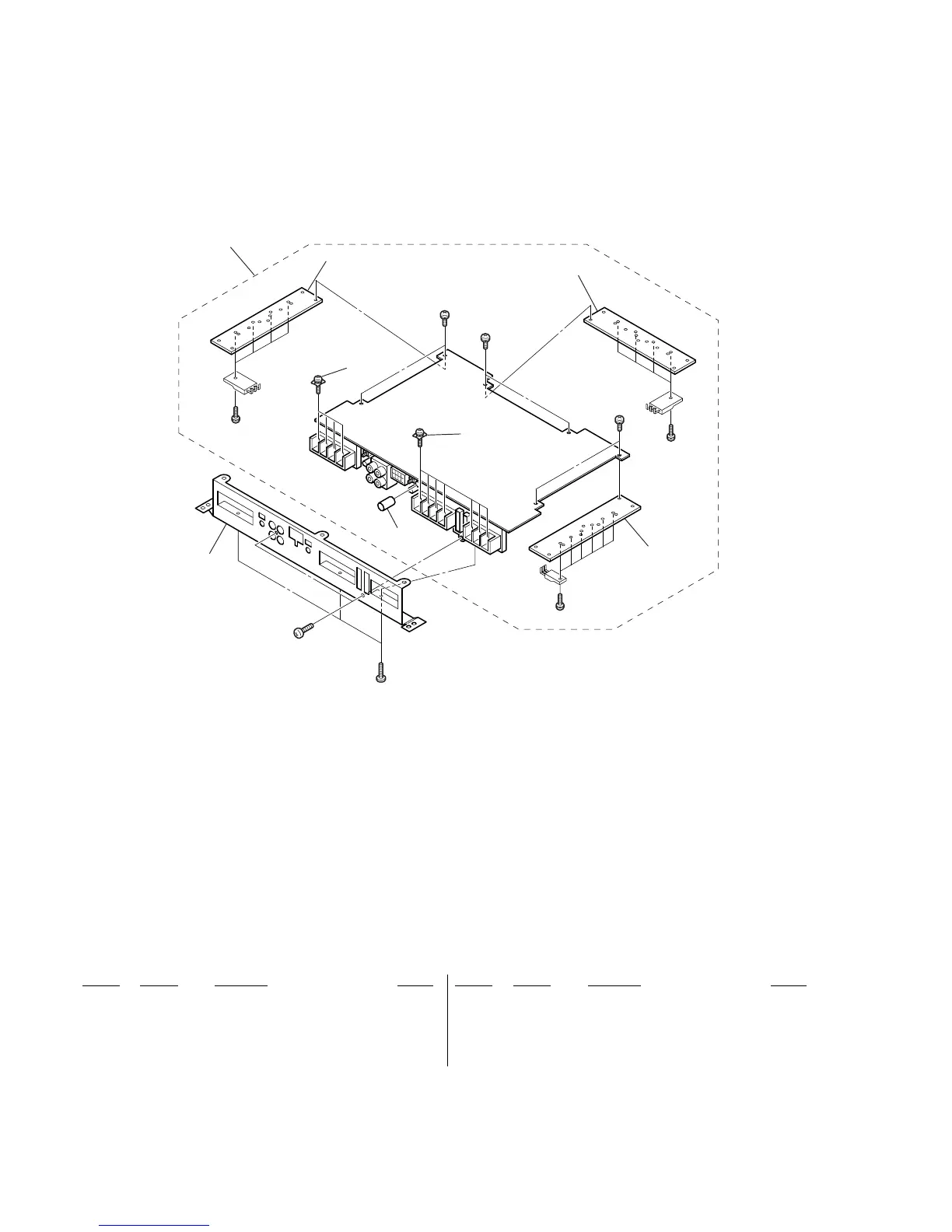

4-2. MAIN BOARD SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
#2
not supplied
not supplied
not supplied
#1
#3
#3
#3
#4
#4
#4
52
53
54
54
51
51 A-3283-674-A MAIN BOARD, COMPLETE
52 3-263-893-01 PANEL (FRONT) (US,CND,E,MX)
52 3-263-893-11 PANEL (FRONT) (AEP,UK)
53 3-266-086-01 COVER (LED)
54 3-912-431-01 SCREW (+–P)
#1 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
#2 7-685-546-19 SCREW +BTP 3X8 TYPE2 N-S
#3 7-682-948-01 SCREW +PSW 3X8
#4 7-682-648-09 SCREW +PS 3X8
To Next Page
