Sony XM-504Z Service Manual

17
XM-504Z
MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R811 1-216-049-11 RES-CHIP 1K 5% 1/10W
R814 1-216-210-00 RES-CHIP 3.3K 5% 1/8W
R815 1-216-210-00 RES-CHIP 3.3K 5% 1/8W
R901 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R902 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R903 1-216-089-11 RES-CHIP 47K 5% 1/10W
R904 1-216-033-00 METAL CHIP 220 5% 1/10W
R905 1-216-041-00 METAL CHIP 470 5% 1/10W
R906 1-216-073-00 RES-CHIP 10K 5% 1/10W
R907 1-216-049-11 RES-CHIP 1K 5% 1/10W
R908 1-216-049-11 RES-CHIP 1K 5% 1/10W
R909 1-216-041-00 METAL CHIP 470 5% 1/10W
R910 1-216-069-00 METAL CHIP 6.8K 5% 1/10W
R911 1-216-081-00 METAL CHIP 22K 5% 1/10W
R912 1-216-097-11 RES-CHIP 100K 5% 1/10W
R913 1-216-065-00 RES-CHIP 4.7K 5% 1/10W
R914 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
R915 1-216-035-00 METAL CHIP 270 5% 1/10W
R916 1-216-049-11 RES-CHIP 1K 5% 1/10W
R917 1-216-073-00 RES-CHIP 10K 5% 1/10W
R918 1-216-073-00 RES-CHIP 10K 5% 1/10W
R919 1-216-222-00 RES-CHIP 10K 5% 1/8W
R920 1-216-190-00 RES-CHIP 470 5% 1/8W
R921 1-216-190-00 RES-CHIP 470 5% 1/8W
R922 1-216-049-11 RES-CHIP 1K 5% 1/10W
R923 1-216-049-11 RES-CHIP 1K 5% 1/10W
R924 1-216-049-11 RES-CHIP 1K 5% 1/10W
R925 1-216-049-11 RES-CHIP 1K 5% 1/10W
R926 1-216-158-00 RES-CHIP 22 5% 1/8W
R927 1-216-158-00 RES-CHIP 22 5% 1/8W
R928 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R929 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R930 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R931 1-216-134-00 METAL CHIP 2.2 5% 1/8W
R932 1-216-150-00 RES-CHIP 10 5% 1/8W
R933 1-216-150-00 RES-CHIP 10 5% 1/8W
R934 1-216-206-00 RES-CHIP 2.2K 5% 1/8W
< SWITCH >
SW801 1-571-478-11 SWITCH, SLIDE (HPF(80Hz) (FRONT))
SW802 1-571-478-11 SWITCH, SLIDE (LPF(80Hz) (REAR))
< TRANSFORMER >
T901 1-443-277-11 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR (POSITIVE) >
TH901 1-810-506-11 THERMISTOR NTH5G39B223K01
TH902 1-810-506-11 THERMISTOR NTH5G39B223K01
TH903 1-810-506-11 THERMISTOR NTH5G39B223K01
< VARIABLE RESISTOR >
VR801 1-225-459-11 RES, VAR, CARBON 10KX2 (LEVEL (FRONT))
VR802 1-225-459-11 RES, VAR, CARBON 10KX2 (LEVEL (REAR))
*************************************************************
MISCELLANEOUS
***************
0 F901 1-576-256-11 FUSE (BLADE TYPE) (AUTO FUSE) (25A)
0 F902 1-576-256-11 FUSE (BLADE TYPE) (AUTO FUSE) (25A)
*************************************************************
ACCESSORIES
************
3-263-283-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
(US,CND)
3-263-283-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH,
TRADITIONAL CHINESE)
(AEP,UK,E,MX)
3-263-283-31 MANUAL, INSTRUCTION (GERMAN,FRENCH,
ITALIAN) (AEP,UK)
3-263-283-41 MANUAL, INSTRUCTION (DUTCH,RUSSIAN,
SWEDISH) (AEP,UK)
3-263-283-51 MANUAL, INSTRUCTION (GREEK,POLISH,
PORTUGUESE) (AEP,UK)
*************************************************************

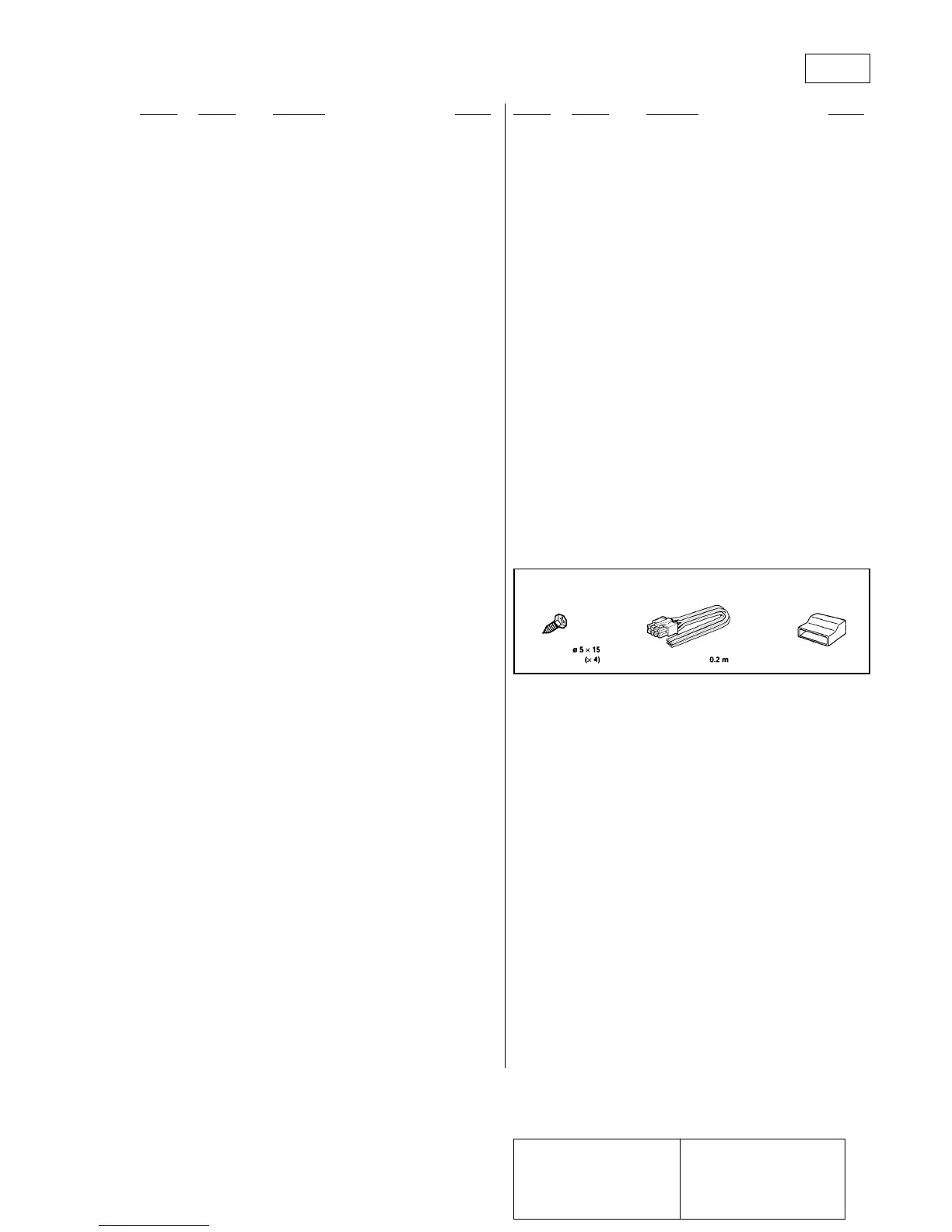

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
101 3-367-410-01 SCREW (DIA.5X15), TAPPING
(MOUNTING SCREW)
102 1-823-952-11 CORD (WITH CONNECTOR) 8P (0.2m)
103 3-263-276-01 COVER (POWER)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
102101 103
