ZS-S50CP
7
Note:
Follo
w the disassembly procedure in the numerical order giv
en.

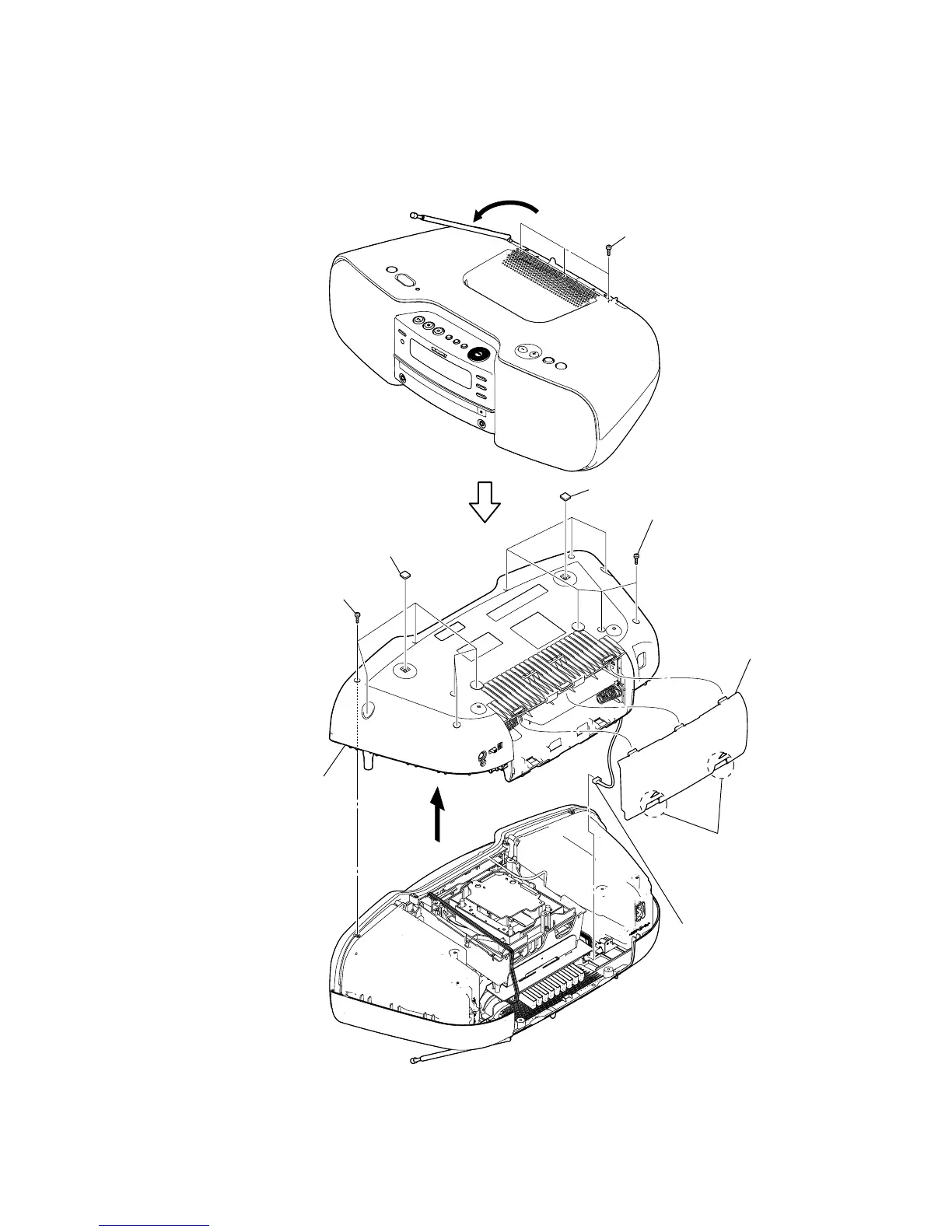

3-2.
CABINET (LO
WER) ASSY
2
three screws
(B2.6)
3
Release two hooks.
4
battery case lid
1
5
six screws
(B2.6)
8
foot (f
elt)
6
9
cabinet (lower) assy
7
connector
(CN901)
5
six screws
(B2.6)
Tu
r
n
t
he set.
8
foot (f
elt)
6
8
Table of Contents
Default Chapter
2
Table of Contents
2
1 Servicing Notes
3
2 General
4
Other Operations
5
3 Disassembly
6
Disassembly Flow
6
Cabinet (Lower) Assy
7
Cabinet (Upper) Assy
8
CD Block
8
Main Block Assy
9
MAIN Board, CD Block Assy
9
Speaker (10 CM) (SP101) (L-CH), Speaker (10 CM) (SP201) (R-CH)
10
Belt
10
Optical Pick-Up Block (KSM-213CCP)
11
4 Test Mode
12
5 Electrical Adjustments
12
6 Diagrams
15
Block Diagram - CD SERVO Section
15
Block Diagram - TUNER Section
16
Block Diagram - MAIN Section
17
Block Diagram - POWER SUPPLY Section
18
Printed Wiring Boards - CD Section
20
Schematic Diagram - CD Board
21
Printed Wiring Board - TU Board
22
Schematic Diagram - TU Board
23
Printed Wiring Boards - JACK Section
24
Printed Wiring Board - MAIN Board
25
Schematic Diagram - MAIN Section (1/2)
26
Schematic Diagram - MAIN Section (2/2)
27
Printed Wiring Board - LCD Board
28
Printed Wiring Boards - KEY Section
29
Schematic Diagram - PANEL Section
30
Printed Wiring Boards - POWER SUPPLY Section
32
Schematic Diagram - POWER SUPPLY Section
33
Main Board
35
Lcd Board
36
7 Exploded Views
42
Overall Section
42
Cabinet (Lower) Section
43
Cabinet (Upper) Section
44
Cabinet (Front) Section
45
Front Panel Assy
46
Main Block Section
47
Loading Mechanism Section
48
CD Block
49
8 Electrical Parts List
50
Revision History
60
