Sony ZS-S50CP Service Manual

ZS-S50CP
9

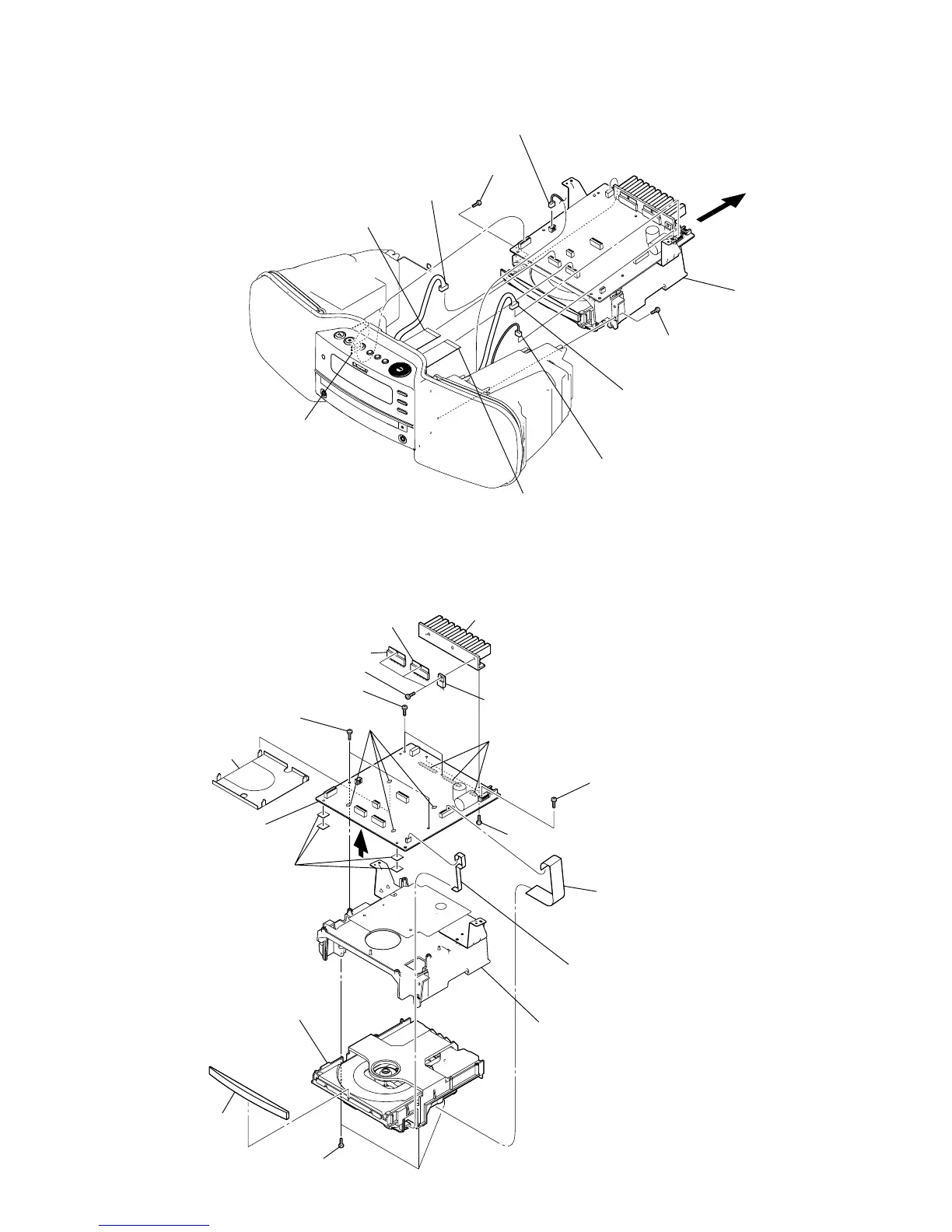

3-5. MAIN BLOCK ASSY
3-6. MAIN BOARD, CD BLOCK ASSY
3 connector
(CN902)
4 connector
(CN310)
5 screw
(B2.6)
0 main block ass
y
6
5
screw
(B2.6)
7 flexible flat cable (11 core)
(CNP802)
8 flexible flat cable (11 core)
(CNP806)
9 flexible flat cable (7 core)
(CNP807)
2 connector
(CN306)
1 connector
(CN309)
1 flexible flat cable (14 core)
(with sield (FFC): AEP, Italian, East European,
Russian models)
(MAIN board: CNP803, CD board: CNP201)
3 screw (B2.6)
3 two screws (B2.6)
8 two screws (B2.6)
0 three screws (B2.6)
qa IC BA5417 (IC305)
qa IC BA5417 (IC304)
qa transistor 2SD2394-F
9 three solders
6 four
solders
qs heat sink assy
3 two screws (B2.6)
7 shield plate
(main PWB)
5 four sheets (1)
qg three screws (B3)
qd MAIN board
qf panel (CD)
qh chassis block
qj CD block assy
2 flexible flat cable (5 core)
(MAIN board: CNP805, MOTOR board: CN001)
4
