– 105 –
APPENDIX
A-2. Auto Cutter Specifications
(1) Cutting frequency Max. 20 cuts per minute
(2) Thickness of paper 65~85 µm
A-3. Interface
RS-232C serial interface/Two-way parallel interface (IEEE1284)/USB inter-
face/Ethernet interface
A-4. Electrical Characteristics
(1) Input Voltage DC 24V±10%
(2)Current Consumption Operating: Approx. 1.3 A (at ASCII printing)
Peak: Approx. 8 A (at print duty 100%,
for 10 seconds or less)
Stand-by: Approx. 0.05 A

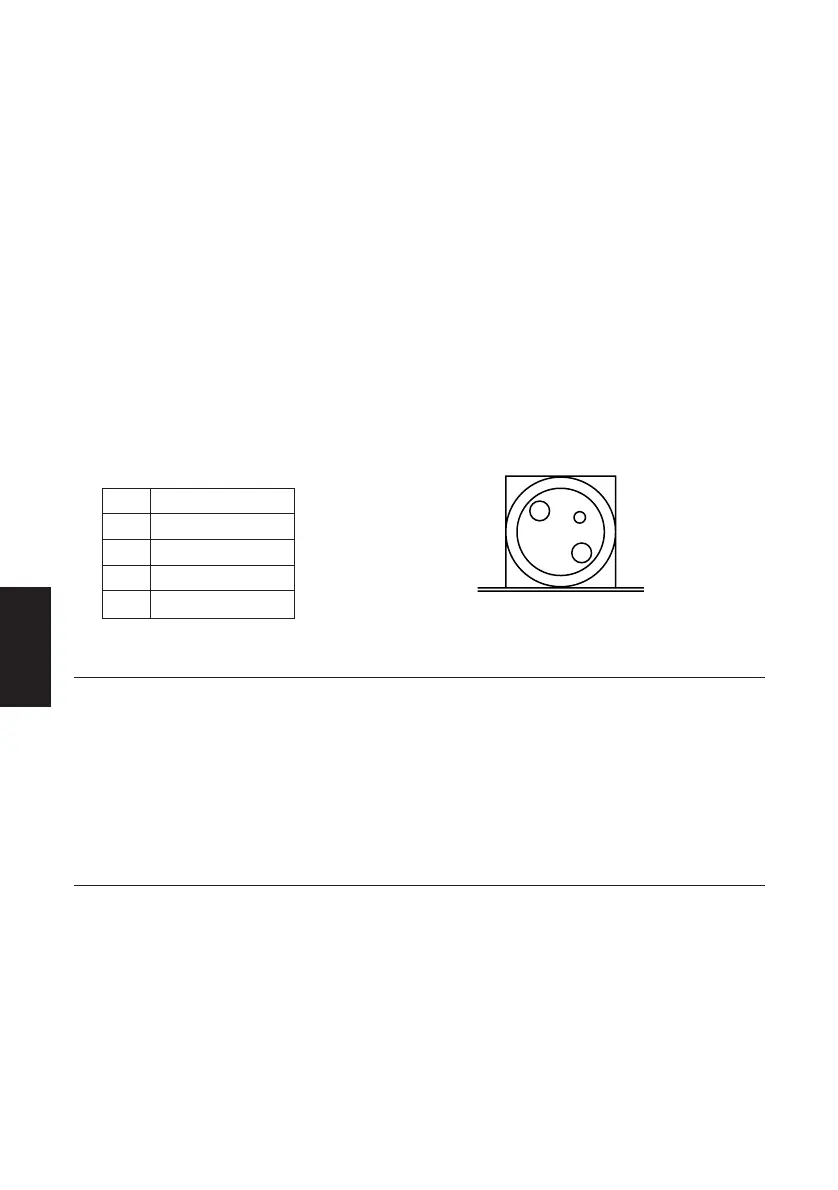

(3) Power Connector
Pin No.
Function
1 DC24V
2 Signal GND
3 N.C.
Shell Frame ground
1
3
2
<Viewed from Connector Surface>
Important!
• When using a printer power supply other than the optional AC adaptor
(PS60), be sure that the following cautions are observed.
• Use a power supply of DC 24 V ±10% and more than 2.0 A (5.0 A Load
10 sec. Min) with SELV output approved by IEC60950.
• Be careful about installing the printer in an area where there is noise.
Take the appropriate measures to protect against electrostatic AC line
noise, etc.
A-5. Option
(1) Wall Mount Set (WB-T600)
(2) Vertical Stand Set (VS-T600)
(3) USB Interface Board Unit (IFBD-HU04)
(4) Parallel Interface Board Unit (IFBD-HC04)
(5) 25 Pin RS-232C Interface Board Unit (IFBD-HD04)
(6) 9 Pin RS-232C Interface Board Unit (IFBD-HN04)
(7) Ethernet Interface Board Unit (FBD-HE04/FBD-HE06)
To Next Page
