Workshop Manual
PARK 300 M - PARK 300
Chapter
5 Belts
Page
35

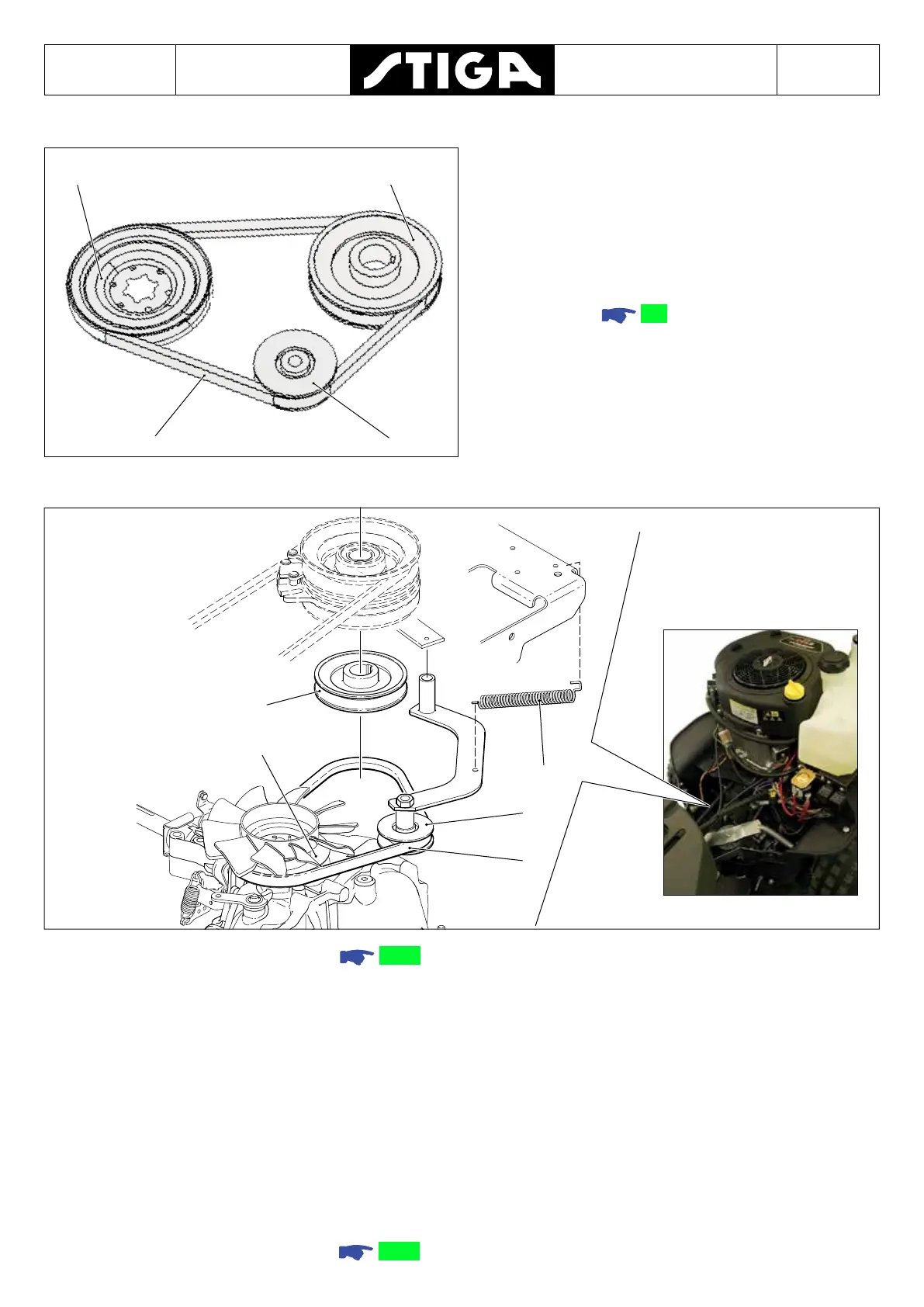

5.2.2 Drive belts (D)
8 D
97
For greater understanding on how the belts are
positioned, see
5.2.
Disassembly
11
9
8
D
7
1. Remove the engine casing 2.1.1.
2. Remove the spring (11) from the tensioning arm.
3. Slip the belt (D) off the pulley (9) connected to the drive shaft.
4. Remove the belt (D) from the pulley (7) and extract it upwards (over the top of the fan).
Assembly
1. Install the belt (D) from the front side, onto the pulley (7).
2. Pull the belt and t it around the tensioning pulley (8) and wind it around the pulley (9) on
the drive shaft. Please note that the tensioning pulley must be positioned on the inside
of the belt.
3. Replace the spring (11) on the tensioning arm.
4. Replace the engine casing
2.1.1.
