Workshop Manual
PARK 300 M - PARK 300
Chapter
5 Belts
Page
36

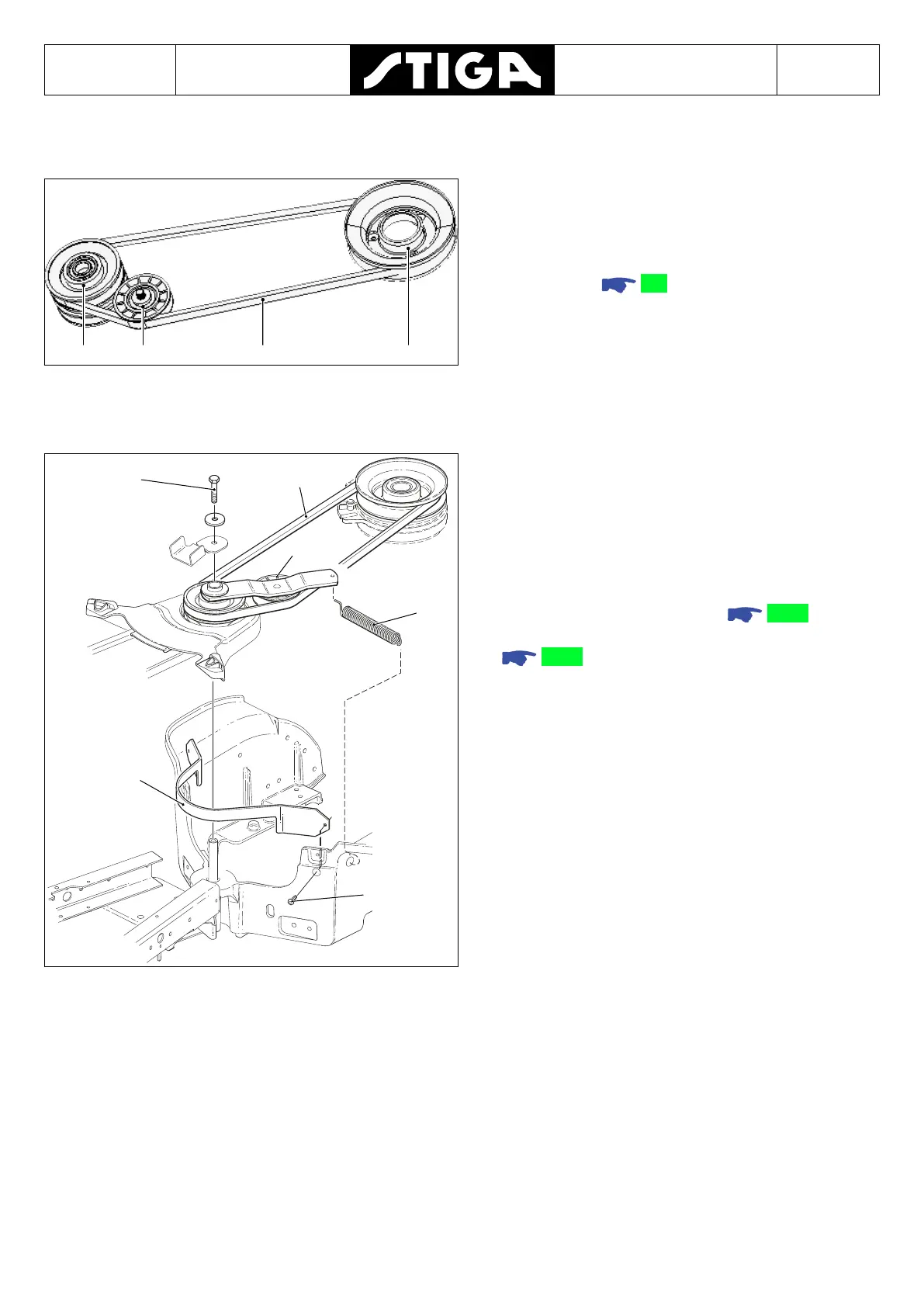

5.2.3 Operating equipment (C) clutch belt.
6 10C5
For greater understanding on how the belts are
positioned, see
5.2.
Disassembly
14
C
13
6
12
(2x)
1. Remove the engine casing 2.1.1
2. Remove the belt (D) from the transmission
5.2.2.
3. Remove the upper belt casing (12), two
screws.
4. Remove the spring (13) from the tensioning
arm on which the tensioning pulley (6) is
installed.
5. Unscrew the central top bolt (14) and move
the tensioning arm sideways.
