Edition Manual Chapter Page
2008-05-19 Workshop Manual, Stiga Villa/Ready 2 Chassis and Body 2
2.1 Lifting mechanism,
manual
2.1.1 Description
The work equipment lifting arm is automatic
locked in elevated position by pressing down
the lifting pedal. Next time the pedal is pressed,
the mechanism will release and the arm drops
down.

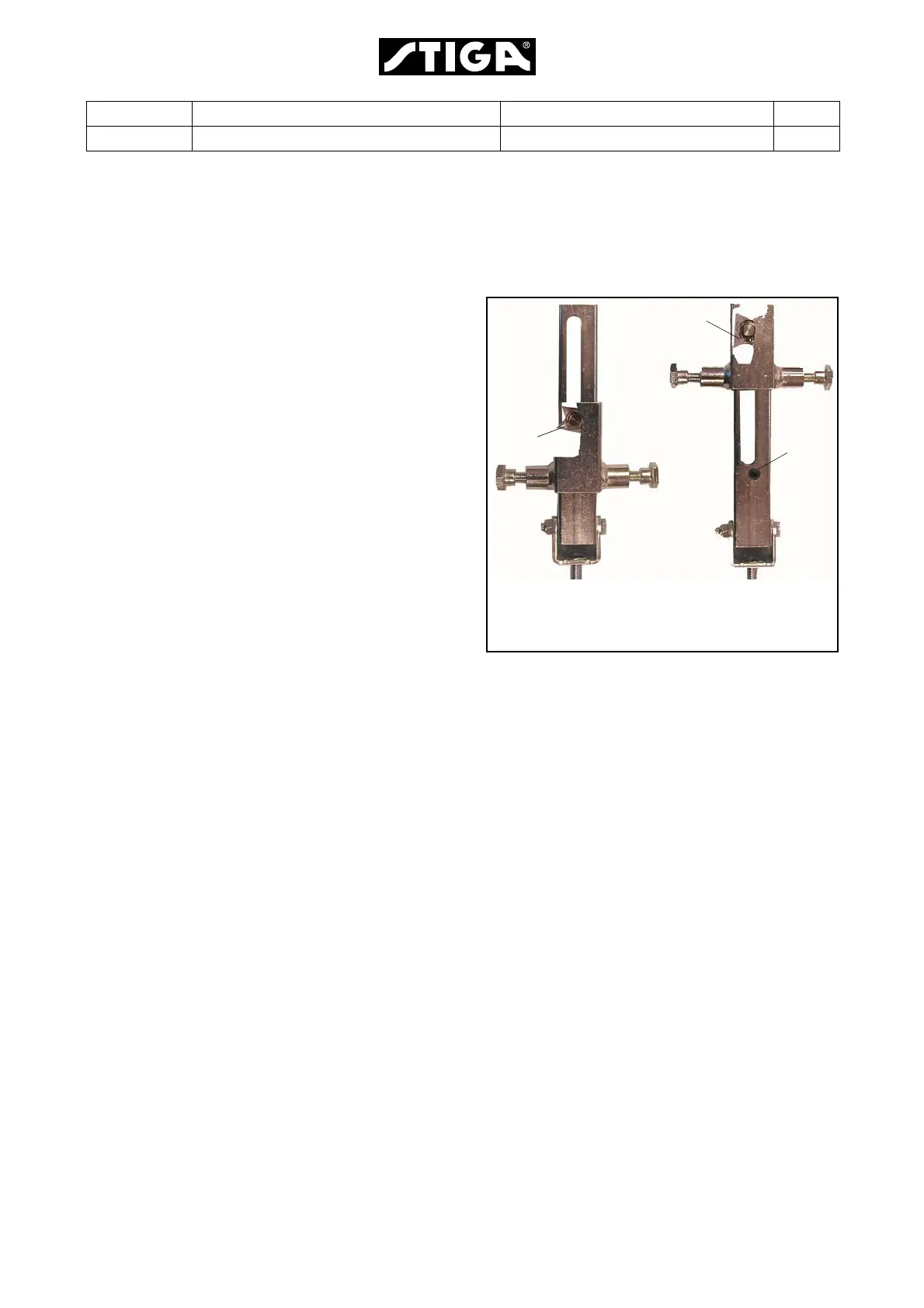

The locking function is created in the lifting lock.
The principle is described below and shown in
the figure.
A. Locked in lifted position by the ratchet (C).
B. Unlocked. Ratchet (C) is released.
C. Ratchet which is tilted by the pin (D) every
time the pedal is pressed down.
2.1.2 Dismantling
To dismantle the lifting lock it is normally
necessary to dismantle the steering console.
Nevertheless, it is possible for a skilful person
to dismantle the lifting lock without releasing
the steering console.
The dismantling is performed as follows:
1. Dismantle the steering wheel by tapping out
the pin.
If applicable, observe the spacers and the
location when disassembly the steering
wheel.
See section 1.
AB
C
D
C
