1.4.3 Assembly
The assembly procedure shall take place in a
clean, well illuminated and dry place.
Assemble the machine as follows:

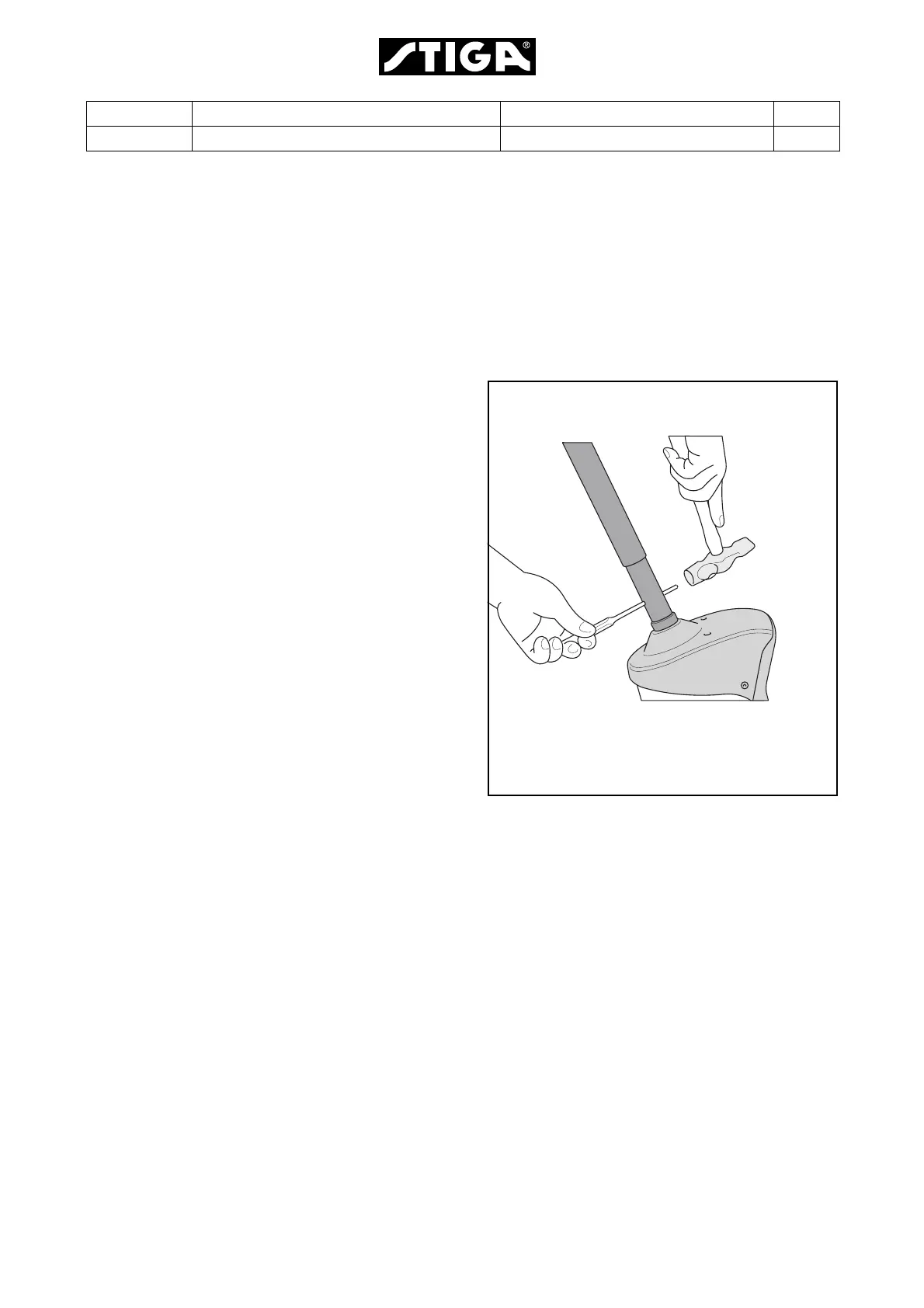

Assembly of steering wheel
The machine is delivered with two shims, one
with a thickness of 0.5 mm and one with a
thickness of 1.0 mm.
In order to minimise the axial play in the
steering column, the shim washers (0.5 mm)
and/or (1.0 mm) must be installed on the
steering column between the steering column
jacket and the bracket as follows.
1. Install the steering column jacket on the
steering column and secure by knocking in
the tension pin approximately 1/3 of its
length.
2. Pull the steering column jacket and the
steering column up.
3. From the outside, check whether no
washers, the 0.5 mm washer, the 1.0 mm
washer or both washers can be inserted into
the gap. The washer/washers must not be
forced in, as there must be a little axial play.
4. Pull out the cotter pin and dismantle the
steering wheel jacket.
5. Install the washer/washers in accordance
with point 3 above.
6. Install the steering column jacket on the
steering column and secure by knocking in
the tension pin fully. Use a counterhold.
Also make sure that the logo on the steering
wheel is in the correct position.
