STIHL 009, 010, 011 17

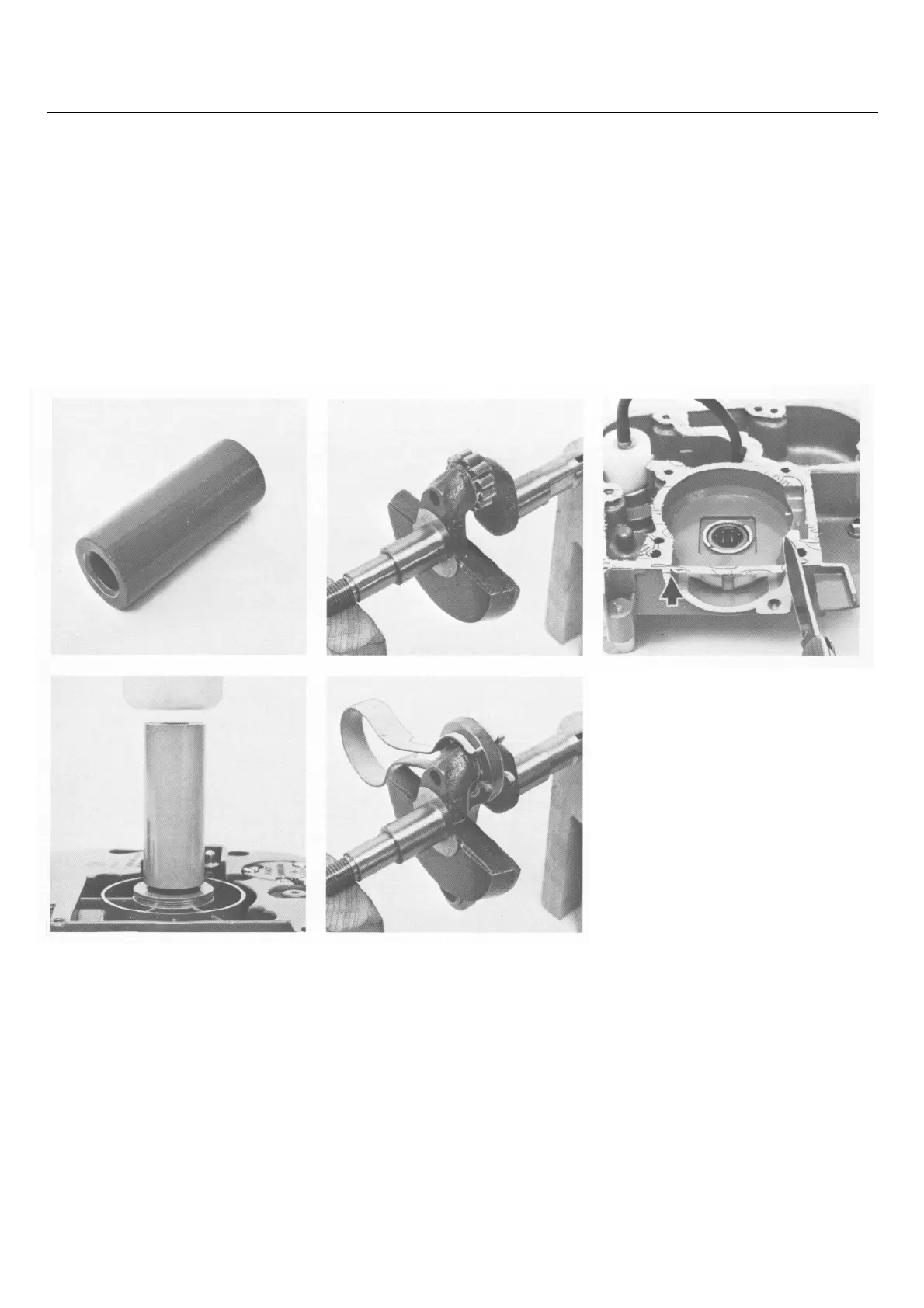

Top: Top:
Press sleeve 1120 893 2400 Cylindrical rollers held in position by grease
Bottom: Bottom:
Pressing oil seal into position Clamp 1120 893 9100 in position Cutting away gasket web at cylinder opening
The oil seals should be perfectly flush If a new crankshaft is being fitted,
with the crankcase faces. Lightly first fit 12 new cylindrical rollers in
grease the sealing lips of the oil seals the crankshaft groove by coating the
and the needle sleeves after installa- groove with grease (0781 389 3138)
tion. Use grease 0781 120 1109 for and then sticking the cylindrical
this purpose. rollers one by one to the grease.
Hold the crankshaft horizontally and
carefully fit the connecting rod over
If the oil seals are replaced without the cylindrical rollers.
removing the crankshaft, use the
press sleeve to install them. Now fit the special clamp over the
connecting rod to prevent the con-
necting rod slipping out of position
during assembly and the cylindrical
rollers dropping out of the crankshaft
groove.
Coat the mating faces of the two
crankcase halves with sealing paste
(0783 810 1101) and place the
gasket on the clutch half of the
crankcase, but first cut away the
gasket web across the cylinder
opening.
Fit thrust washer in recess on clutch
half of crankcase and insert
crankshaft, short stub first, into the
crankcase until is butts against the
thrust washer. Fit the ignition half of
crankcase over the other crankshaft
stub (do not forget the thrust
washer), align the two crankcase
halves and then knock in the two
c
y
lindrical
p
ins.
