19BGA 85
8. Blower

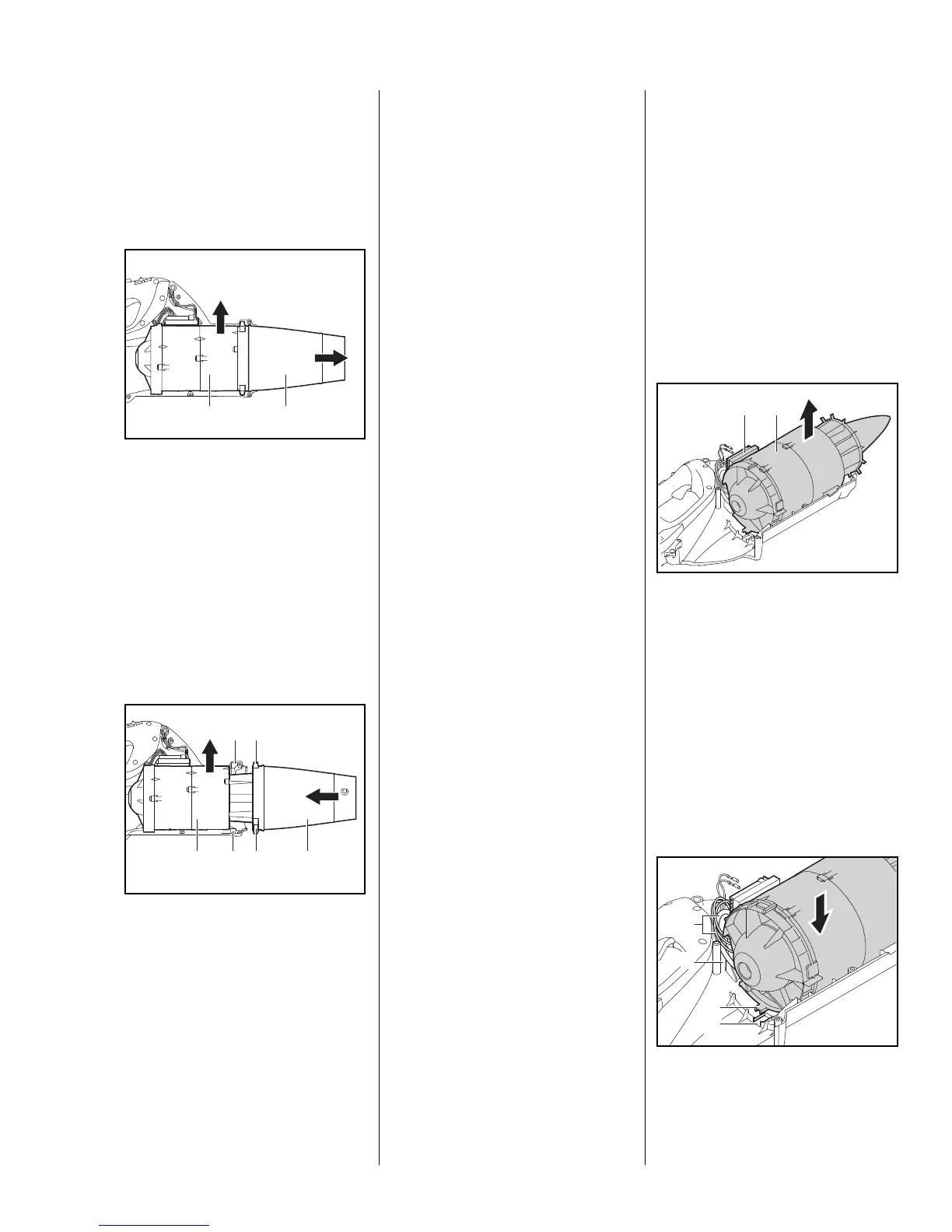

8.1 Blower Tube
Removing
– Remove right half of blower
housing, b 6.2
: Lift the blower tube (1) and
blower (2) at the blower tube end.
: Pull the blower tube (1) off the
blower (2).
– Inspect the blower tube and
replace if necessary.
Installing
: Lift the blower tube end of the
blower (2).
: Push the blower tube (1) onto the
blower and line it up:
The lugs (3) at either side locate in
the recesses (4) in the blower
housing.
9927RA005 GM
21
9927RA006 GM
1342
4 3
– Place the blower and blower tube
in the left half of the blower
housing.
– Fit the right half of blower
housing, b 6.2
8.2 Removing and
Installation the Blower
Removing
– Remove right half of blower
housing, b 6.2
– Remove the blower tube, b 8.1
– Lift the electronic module out of
its guides and disconnect the
wires, b 9.4
: Lift the blower (1) and electronic
module (2) out of the left half of
the blower housing.
– If necessary, disassemble the
blower housing, b 8.3
Installing
– If necessary, assemble the
blower housing, b 8.3
: Line up the blower: The lug (1)
locates in the recess (2).
9927RA009 GM
2 1
9927RA010 GM
2
1
4
3
