25BGA 85

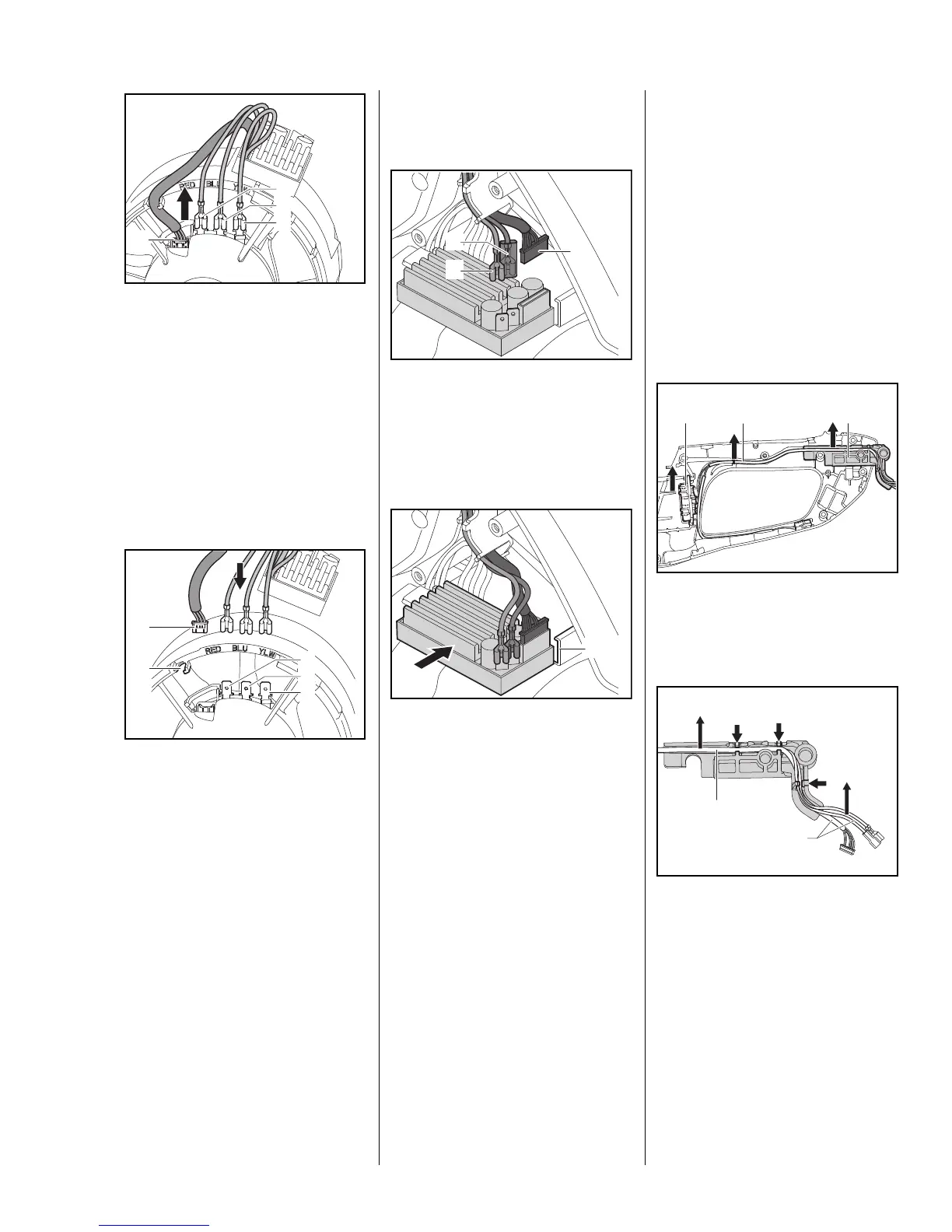

: Disconnect terminals (1, 2, 3)
from the motor.
: Take wire out of retainer and
remove the connector (4).
– Check the electronic module and
replace if necessary.
Installing
: Connect electronic module to the
motor:
The connector tags are marked
"YLW" (1), "BLU" (2) and "RED" (3).
: Connect the wires of the
corresponding colors to the
connector tags.
: Fit the connector (4).
: Fit the wire in the retainer (5)
(strain relief) on the inlet cone.
9927RA019 GM
2
3
1
4
– Fit the blower in the left half of the
blower housing, b 8.2
: Connect the terminals (1, 2) and
plug the connector (3) into the
electronic module.
The terminals have different widths.
: Insert electronic module in the
guides (1) in the left half of the
blower housing.
Position the wires in the guide at the
same time.
– Fit right half of the blower
housing, b 6.2
9927RA042 BL
1
2
3
9927RA043 BL
1
9.5 Wiring Harness
Removing
– Remove the handle housing,
b 7.1
– Remove the right half of the
handle, b 7.5
– Remove the trigger switch
lockout, b 7.6, switch, b 9.2,
and trigger, b 7.7
: Take the adapter (1) with wiring
harness (2) and contact plate (3)
out of the left half of the handle.
: Pull the wiring harness (1) out of
the guides (arrows) in the
adapter.
– Check the wiring harness and
replace it if necessary
3
2
1
9927RA044 BL
