Stihl FS 45 Manual

Troubleshootingchart-see
"StandardRepairs,Trouble-
shooting"handbook.
•

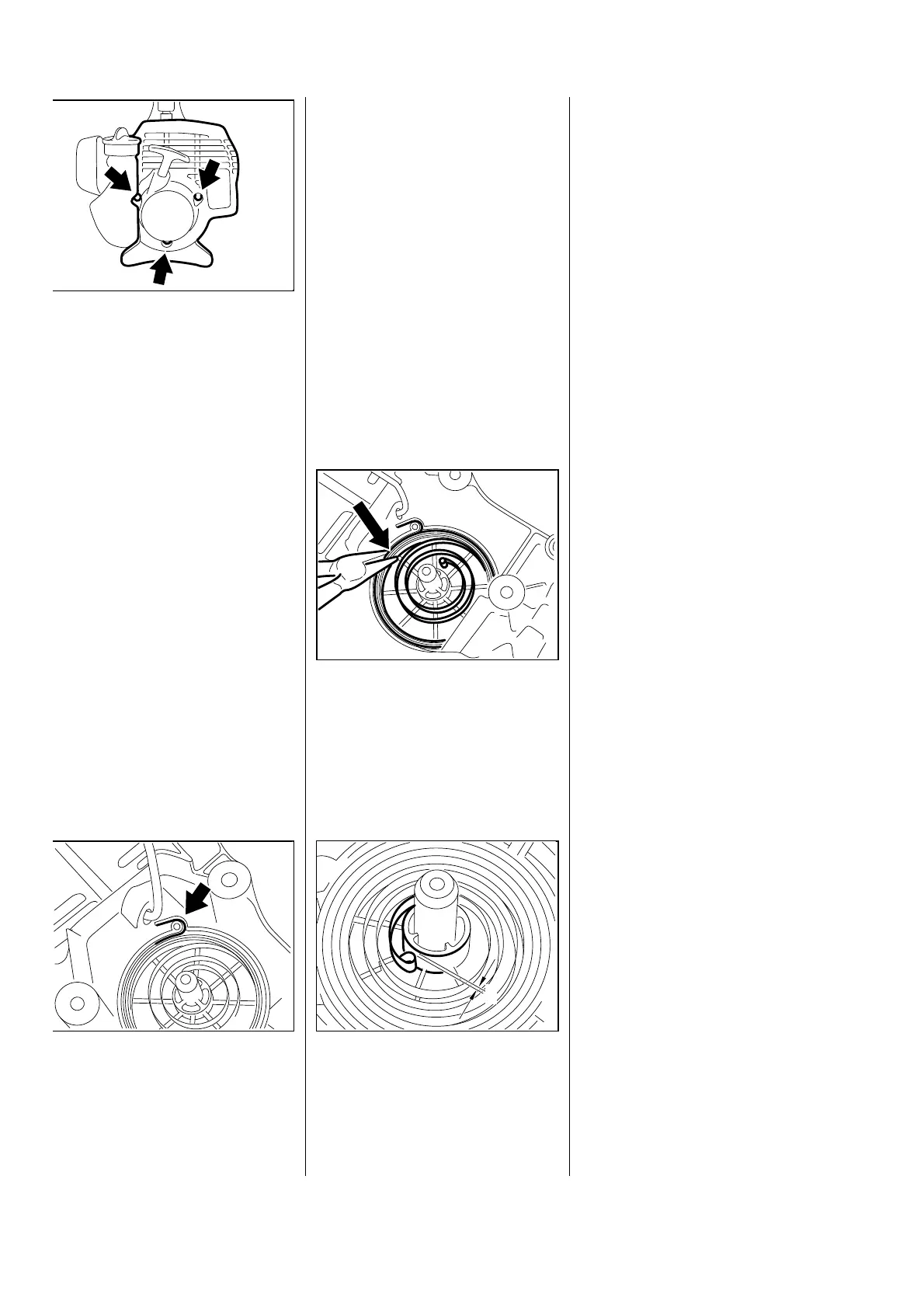

Takeoutthescrews.
•
Removestartercoverwith
rewindstarter.
-Removetheroperotor-see
"StandardRepairs,Trouble-
shooting"handbook.
-Removeanyremainingpieces
ofspringfromtheroperotorand
startercover.
Note:Thereplacementspring
comesreadyforinstallationand
issecuredwithawasher.
-Itshouldbelubricatedwithafew
dropsofSTIHLspeciallubricant
beforeinstallation-see11.2.
•
Thewasherslipsofftherewind
springasitispushedintothefan
startercover.Engagetheouter
springloopintherecessinthe
startercoveratthesametime.
Caution:Therewindspringmay
popoutanduncoilduring
installation.
-Iftherewindspringhaspopped
out,refititasfollows:
-Windupthespringinyourhand,
startingoutsideandworking
inwards,andtensionittoa
diameterof55mm(2.16").
•
Thenusepointednosepliers
togriptherewindspringabout
10mm(0.4")fromtheendof
theouterloopandplaceitin
thestartercover.
•
Checkthepositionofthe
innerspringloop.Itshouldbe
2mm(0.08")awayfromthe
hub(seeA).
-Installtheroperotor-see
"StandardRepairs,Trouble-
shooting"handbook.
-Tensiontherewindspring-
see7.2.2.
7.2 RewindSpring
7.2.1 Replacing
VA
232RA055
VA
232RA057
VA
232RA056
VA
250RA121
A
22 FS45
