Page 30 Technical Information 40.2010
TI_40_2010_13_01_02.fm
9.11 Calibrating the control unit
If the control unit or carburetor is replaced during
servicing, the M-Tronic must be calibrated.
. Remove cutting attachment, all mounting
hardware and thrust plate
. Move choke lever to Start }
. Start engine – do not blip the throttle trigger
. Let the engine run for at least 90 seconds in the
start position and then actuate the stop switch –
calibration is completed
The control unit is adjusted to the carburetor while
the engine runs in the position Start }. The engine
must be switched off immediately for the information
to be stored in the control unit.
9.12 Tightening torques
The tightening torques are listed in the Service
Manual for STIHL FS 240 C, FS 260 C, FS 360 C,
FS 410 C, FS 460 C.
9.13 Service notes
Service and repair procedures are included in the
Service Manual STIHL FS 240 C, FS 260 C,
FS 360 C, FS 410 C, FS 460 C.
9.14 Serial number

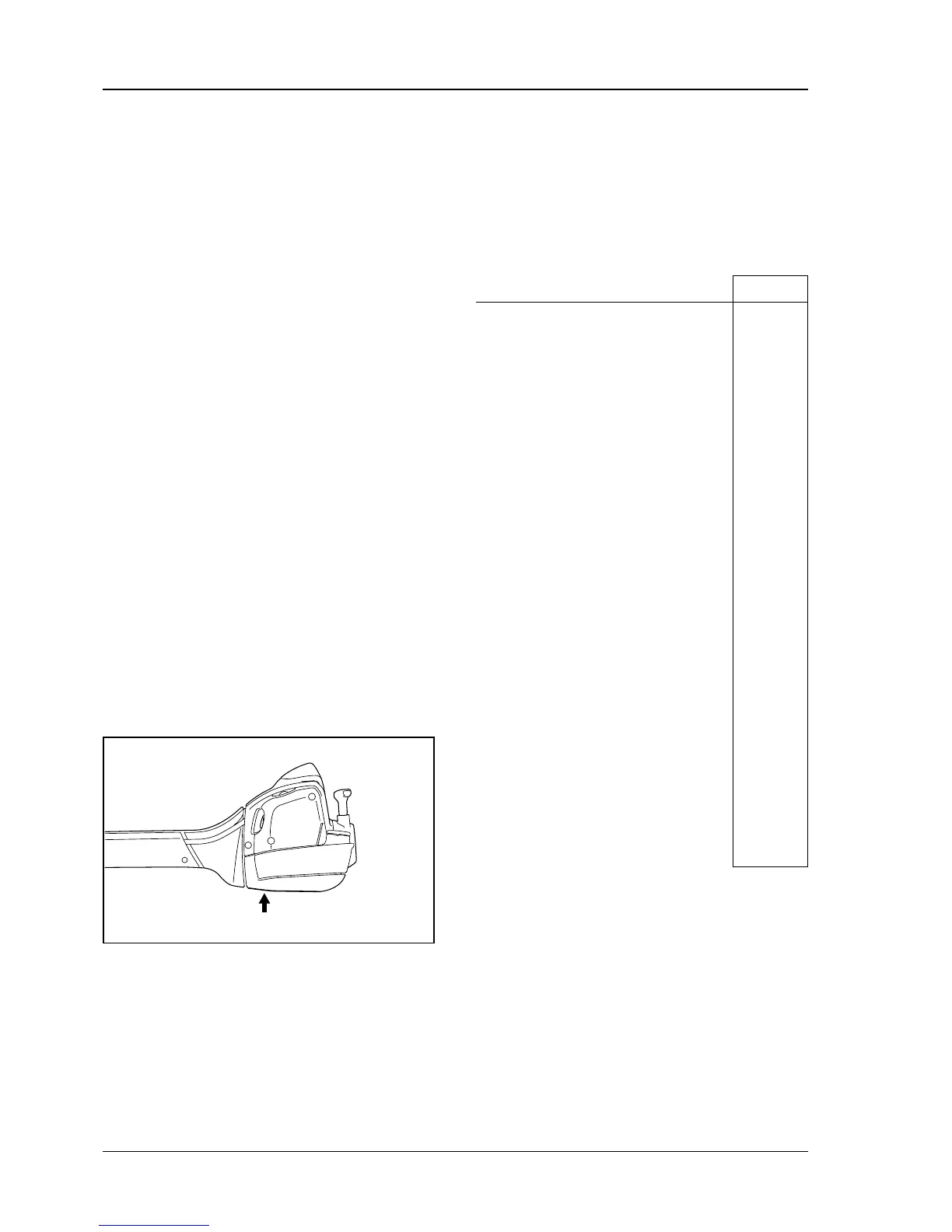

The serial number is on the bottom of the machine.
9.15 Repair times
The specified repair times apply for trained and
qualified personnel as well as for properly equipped
repair shops.
The repair times are specified in minutes.
* Trial run under load
© ANDREAS STIHL AG & Co. KG, 2010 Technical Documentation
D1/MTK-fr
317TI029 KN
Repair activity FS 460 C
1 Engine, mounting and
dismounting 10
2 Crankcase, pressure test* 100
3 Crankshaft, bearings, pressure
test* 100
4 Sealing rings, pressure test* 60
5 Test crankcase for leaks, trial run 40
6 Cylinder, piston, pressure test* 60
7 Ignition system, contact* 25
8 Fuel supply, tank vent, trial run 35
9 Manifold or flange, pressure test 20
10 Carburetor, test* 25
11 Handlebar and throttle control 10
12 Starter mechanism with trial run 20
13 Clutch, trial run 35
14 Muffler 10
15 Air filter 5
16 Stop switch with trial run 25
17 Clutch housing 35
18 Drive tube and drive shaft 15
19 Replacing the bearing in the drive
tube -
20 Gearbox replacement 5
21 Limit stop or deflector 10
22 Support tube -
23 Drive shaft 10
24 Fuel tank 25
25 Shroud 5
