0458-777-0121-C
12
English

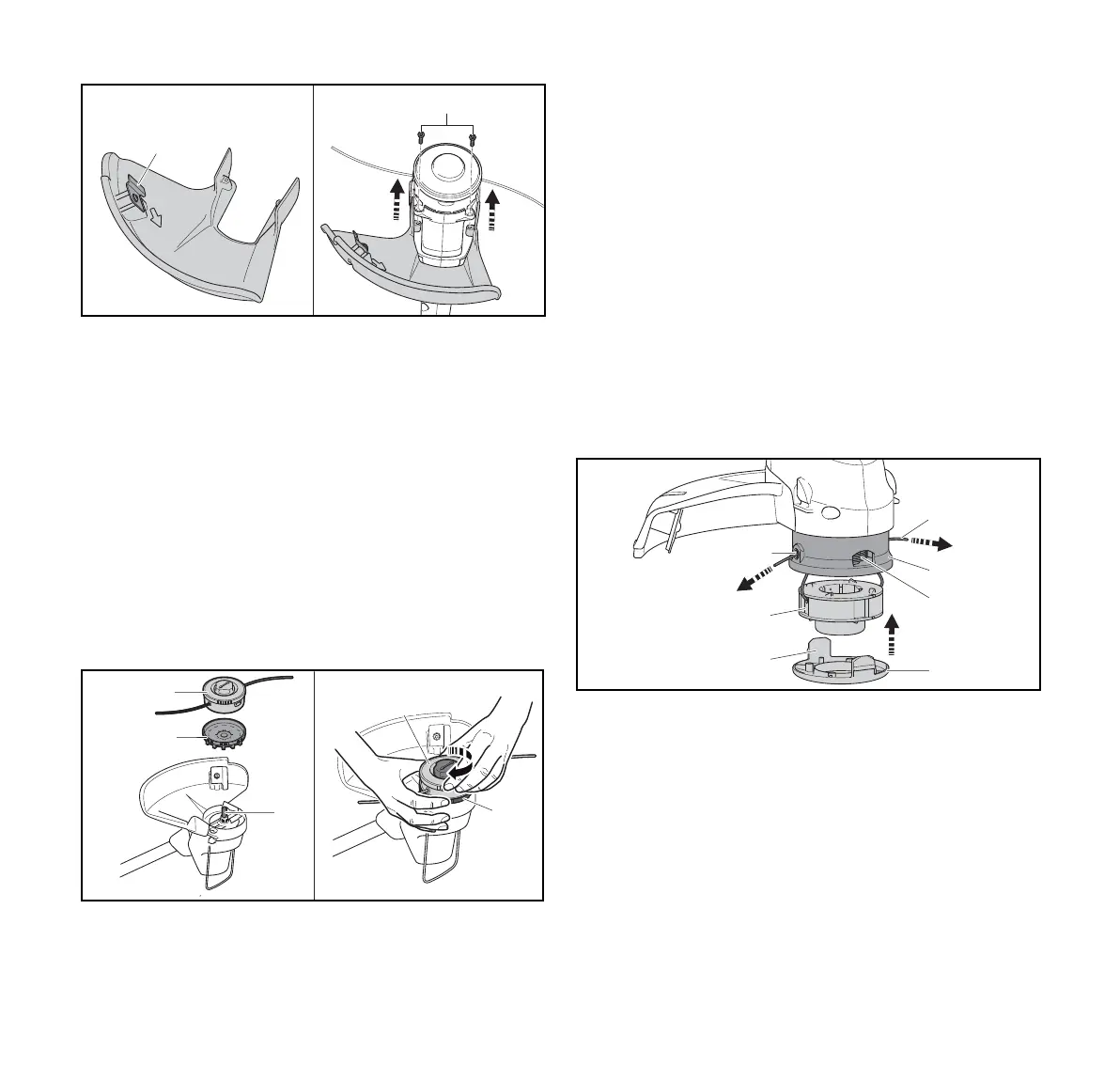

6 Assembling the Trimmer
The line limiting blade (1) is already installed in the deflector
(2) and must not be removed.
► Push the deflector (2) into the guides on the housing as far
as stop.
The deflector (2) is tight against the housing.
► Insert and tighten down the screws (3) firmly.
The deflector (2) must not be removed again.
6.2 Mounting and Removing the Mowing Head
6.2.1 Mounting the Mowing Head
Trimmer with fanwheel
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Fit the fanwheel (2) on the shaft (3) with fan blades facing
down.
If the fanwheel is not fitted, the motor will not be cooled
properly and it will not be possible to remove the mowing
head.
► Hold fanwheel (2) steady with one hand.
► Fit the mowing head (1) on the shaft (3) and screw it on
counterclockwise.
Trimmer without fanwheel
The trimmer comes with the AutoCut 2-2 mowing head
already mounted. The spool can be fitted by the user.
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Place spool in a container filled with water for 12 to 24
hours before installing.
This makes the nylon mowing lines supple.
► Thread the ends of the nylon lines (4) from the spool (2)
through the openings (1) in the mowing head (5).
► Insert the spool (2) in the mowing head (5).
► Fit the cover (7) on the mowing head (5) so that its tabs
(3) line up with the openings (6) in the mowing head (4).
► Push the cover (7) onto the mowing head (5) as far as
stop.
The tabs (3) engage audibly.
1
3
2 2
0000-GXX-1486-A1
5
7
6
2
1
3
4
0000-GXX-1485-A1
