Stihl FSE 52 User Manual

0458-777-0121-C
4
English 3 Overview
5 Trigger Lockout
Unlocks the trigger.
6 Star Knob Nut
Secures loop handle to shaft.
7 Lock Button
Locks the shaft at the required length.
8 Loop Handle
For holding and controlling the trimmer.
9Shaft
Connects all components.
10 Bump Guard
Helps protect objects from contact with the cutting
attachment.
# Rating Label with Serial Number

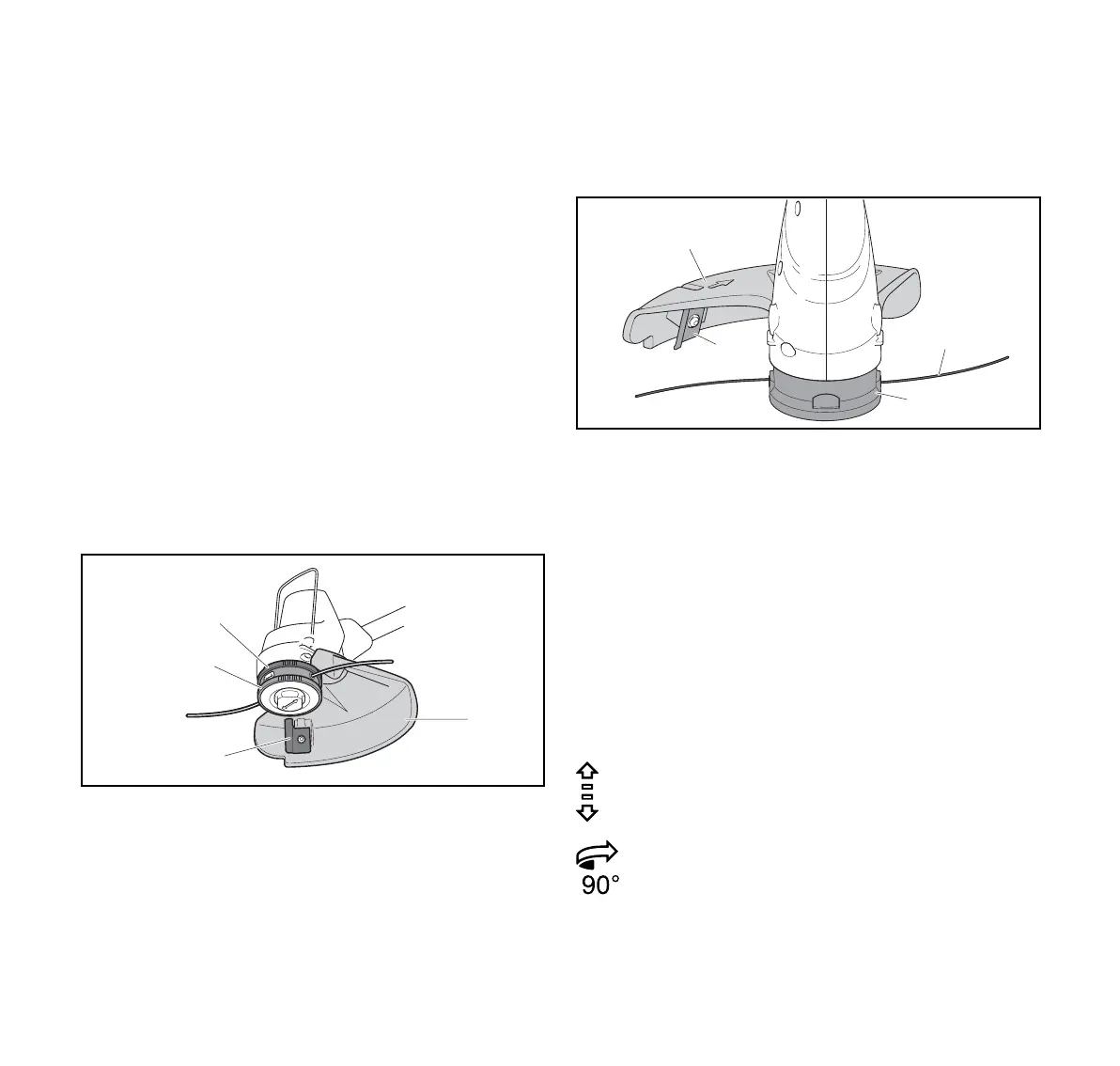

3.2 Deflector and Cutting Attachments
Trimmer with fanwheel
1 Line Limiting Blade
Trims nylon lines to correct length.
2 Mowing Head
Holds the nylon lines.
3 Fanwheel
Cools the electric motor.
4 Deflector
Protects user from flying debris and contact with the
cutting attachment.
Trimmer without fanwheel
1 Deflector
Protects user from flying debris and contact with the
cutting attachment.
2 Line Limiting Blade
Trims nylon lines to correct length.
3 Mowing Head
Accommodates the nylon lines.
4 Mowing Line
The mowing lines cut grass.
3.3 Symbols
Meanings of symbols that may be on the trimmer:
3
1
4
2
0000-GXX-B518-A0
This symbols indicates that the length of the shaft is
adjustable.
This symbols indicates that the control handle can be
rotated 90°.
1
2
3
4
0000-GXX-1483-A0

Stihl FSE 52 Specifications

General

Type	String trimmer
Head type	Nylon line
Handle type	D-loop handle
Line diameter	1.6 mm
Product color	Orange, White
Sound power level	94 dB
Power cable length	0.33 m
Vibration emission	4.5 m/s²
Sound pressure level	83 dB
Cutting diameter (max)	300 mm
Power source	AC
AC input voltage	220 - 240 V

Weight and Dimensions

Length	1310 mm
Weight	2200 g
