English 8 Connecting to Power Supply
► Depress lock button (1) and hold it in that position.
► Pull or push the control handle (2) to the required position.
► Release the lock button (1).
► Move the control handle (2) back and forth until it
engages.

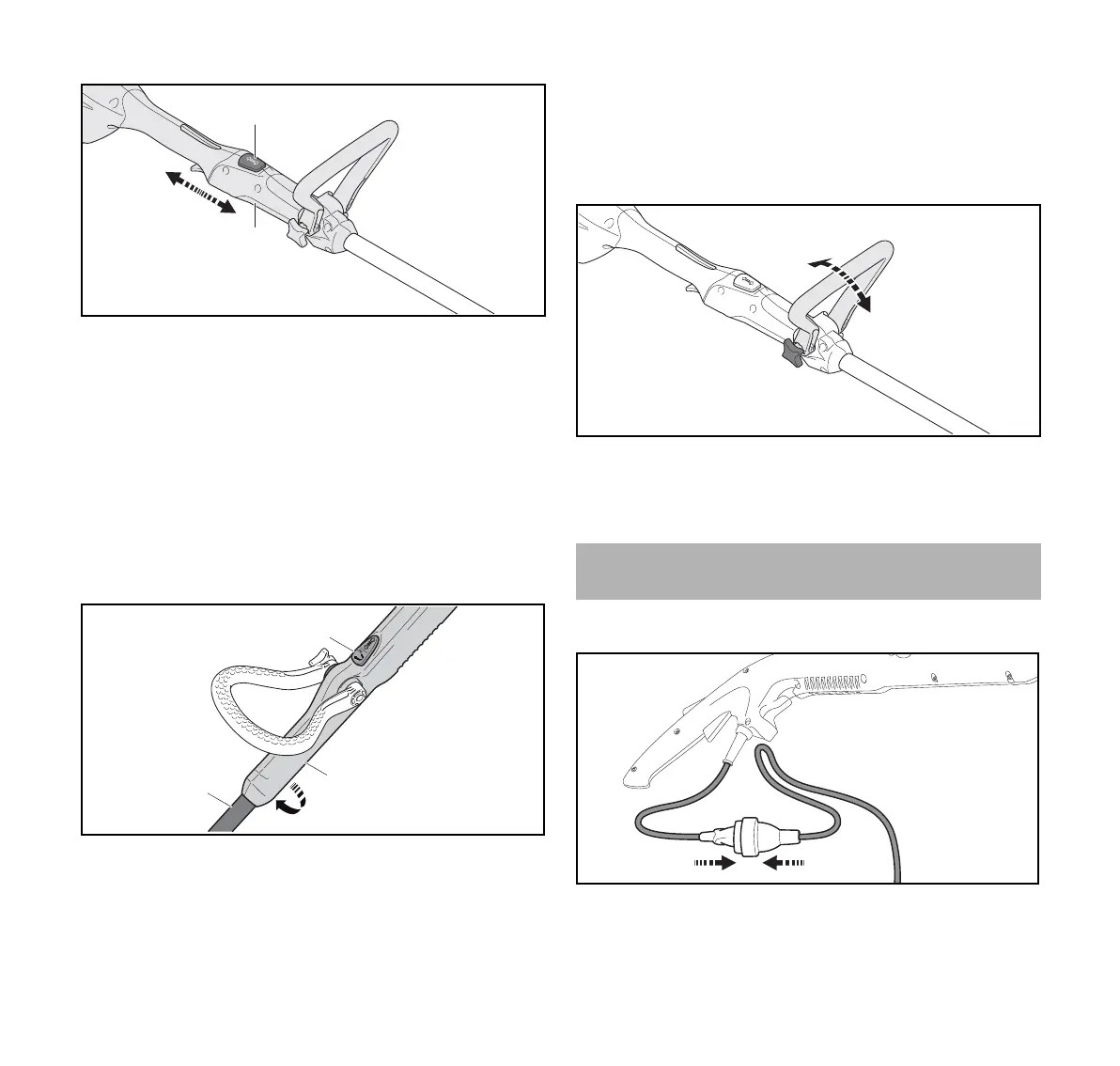

7.2 Adjusting Angle of Control Handle
The control handle can be set to two positions (0° and 90°).
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Hold the shaft firmly.
► Depress lock button (1) and hold it in that position.
► Turn the control handle (2) 90° on the shaft.
► Release the lock button (1).
► Move the control handle (2) back and forth until it
engages.
7.3 Adjusting the Loop Handle
The loop handle can be set in different positions to suit the
height and reach of the user.
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Loosen the star knob nut (1).
► Swing the loop handle (2) to the required position.
► Tighten down the star knob nut (1) firmly.
8.1 Connecting Trimmer to Power Supply
► Insert the plug (1) into the extension cable coupling (2).
1
2
0000-GXX-1489-A0
2
1
3
0000-GXX-B536-A0
8 Connecting to Power Supply
1
2
0000-GXX-1490-A0
12
3
0000-GXX-9911-A0

Stihl FSE 52 Specifications

General

Type	String trimmer
Head type	Nylon line
Handle type	D-loop handle
Line diameter	1.6 mm
Product color	Orange, White
Sound power level	94 dB
Power cable length	0.33 m
Vibration emission	4.5 m/s²
Sound pressure level	83 dB
Cutting diameter (max)	300 mm
Power source	AC
AC input voltage	220 - 240 V

Weight and Dimensions

Length	1310 mm
Weight	2200 g
