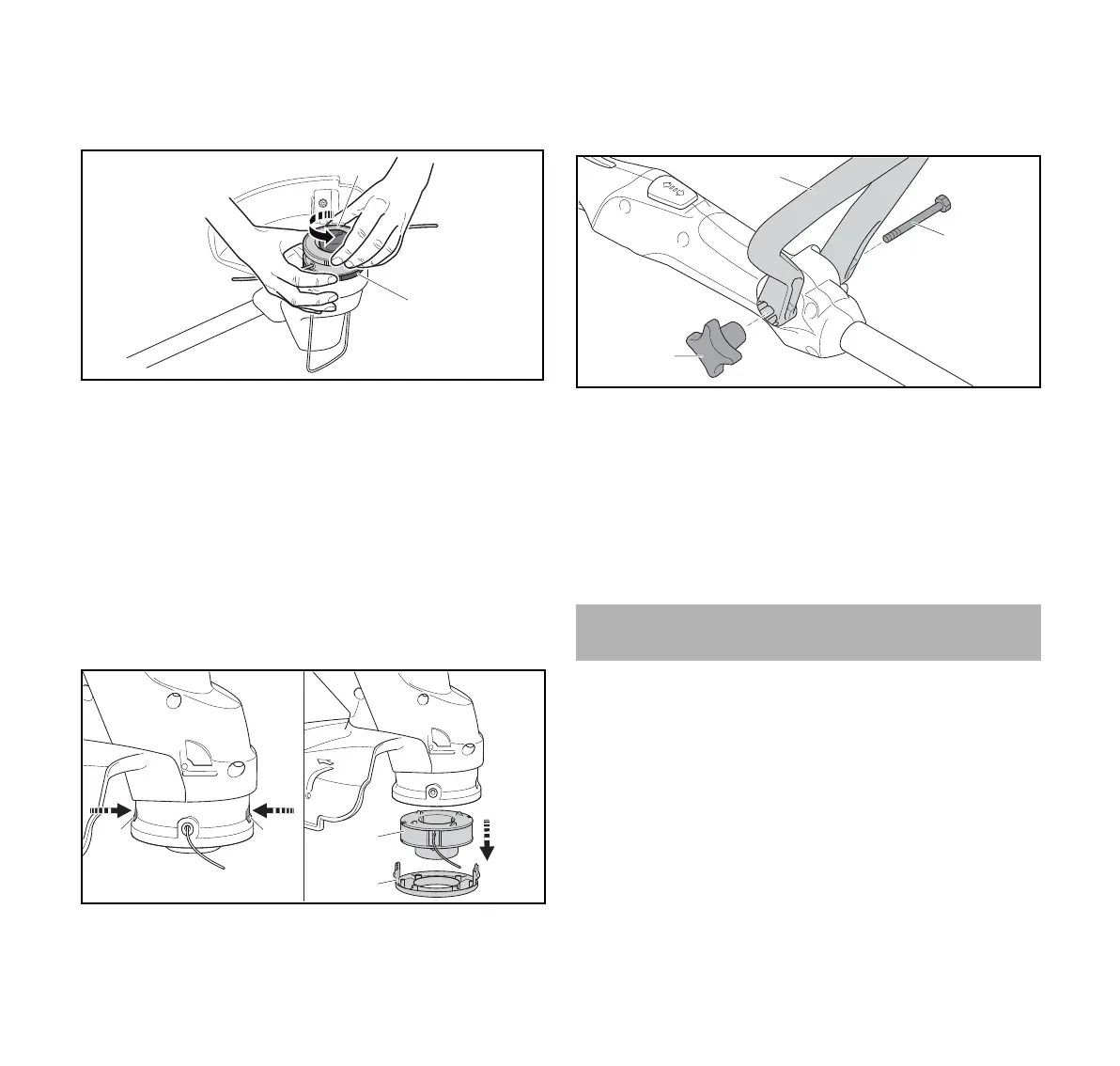

6.2.2 Removing the Mowing Head
Trimmer with fanwheel
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Hold fanwheel (2) steady with one hand.
► Unscrew the mowing head (1) counterclockwise.
► Remove the fanwheel.
Trimmer without fanwheel
The trimmer comes with the AutoCut 2-2 mowing head
already mounted and cannot be removed by the user.. The
spool can be removed by the user.
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Press in the tabs (1) and remove the cover (3).
► Remove the spool (2).
6.3 Mounting the Loop Handle
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Line up the loop handle (2) so that the recess for the star
knob nut (1) is on the right of the control handle and the
openings in the loop handle (2) are facing the operator.
► Ease the ends of the loop handle (2) apart and push it onto
the control handle until it engages in position.
► Insert the screw (3) through the hole.
► Fit the star knob nut (1) and tighten it down.
The loop handle (2) must not be removed again.
7.1 Adjusting Length of Shaft
The length of the shaft can be adjusted to suit the height and
reach of the user.
► Switch off the trimmer and disconnect extension cable’s
coupling from trimmer’s plug.
► Hold the shaft firmly.
2
1
0000-GXX-9899-A0
1
2
3
1
0000-GXX-1484-A0
7 Adjusting Trimmer for User
3
1
2
0000-GXX-1488-A0

Stihl FSE 52 Specifications

General

Type	String trimmer
Head type	Nylon line
Handle type	D-loop handle
Line diameter	1.6 mm
Product color	Orange, White
Sound power level	94 dB
Power cable length	0.33 m
Vibration emission	4.5 m/s²
Sound pressure level	83 dB
Cutting diameter (max)	300 mm
Power source	AC
AC input voltage	220 - 240 V

Weight and Dimensions

Length	1310 mm
Weight	2200 g
