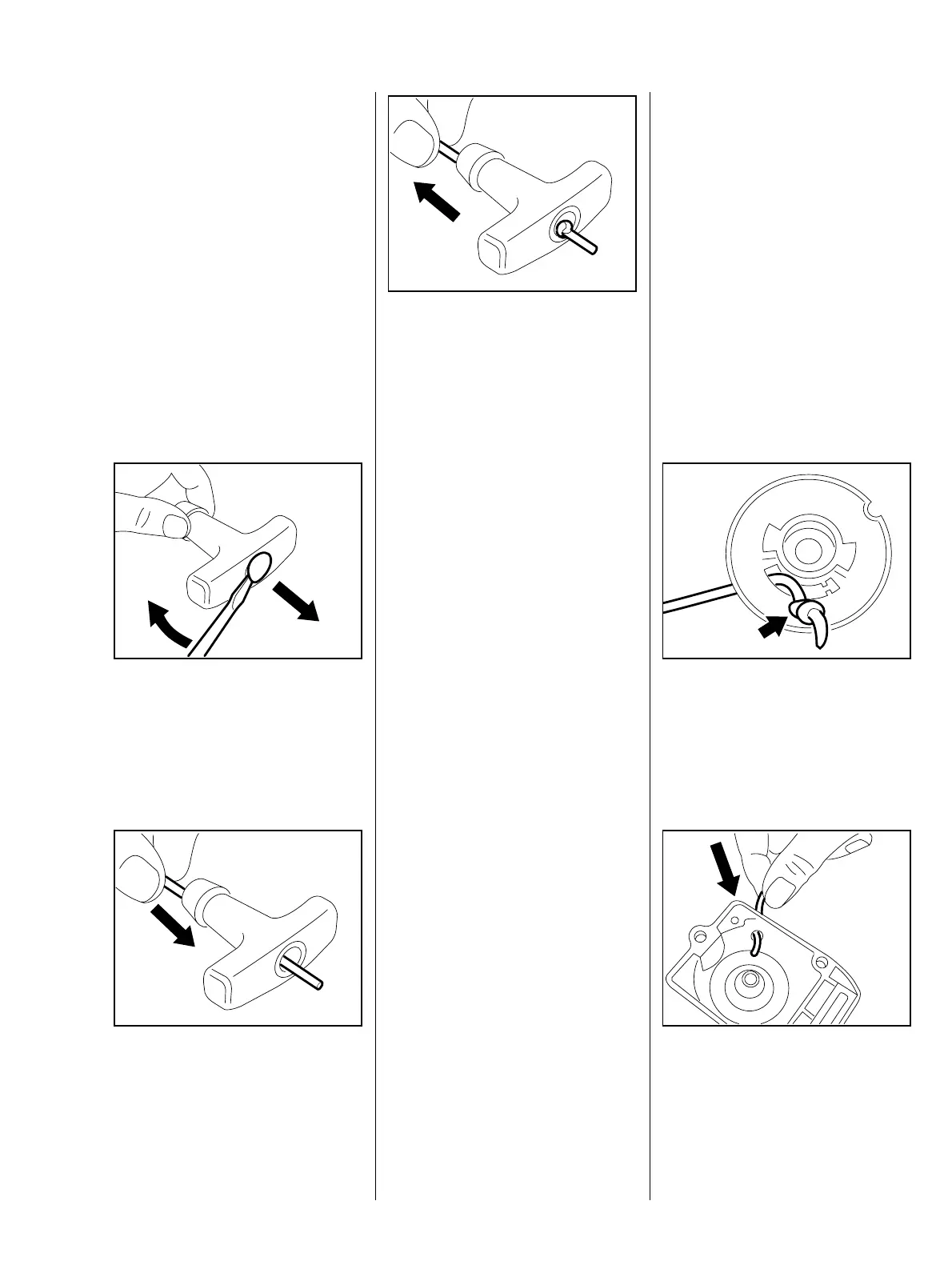

– Remove the rewind starter,
b 6.2
– Remove the remaining rope from
the rope rotor if necessary.
: Pry the cap out of the starter grip.
– Pull the rope out of the starter
grip.
VA
936RA018
: Thread end of new rope through
the starter grip, from the bottom
to the top.
– Tie a simple overhand knot in the
end of the rope.
VA
936RA019
: Pull the rope back so that the
knot locates in the starter grip.
– Refit the cap in the starter grip.
– Tension the starter rope, b 6.3.1
Assemble all other parts in the
VA
936RA020
reverse sequence.
The ElastoStart starter grip is
supplied with starter rope.
– Remove the rewind starter,
b 6.2
– Remove the rope rotor, b 6.3
– Pull the knot out of the recess in
the rope rotor.
: Undo the knot and pull the rope
out of the rotor and starter
mechanism.
VA
936RA048
: Thread the new starter rope
through the rope guide bushing
from outside.
VA
936RA049
6.4 Starter Rope 6.5 Starter Grip
