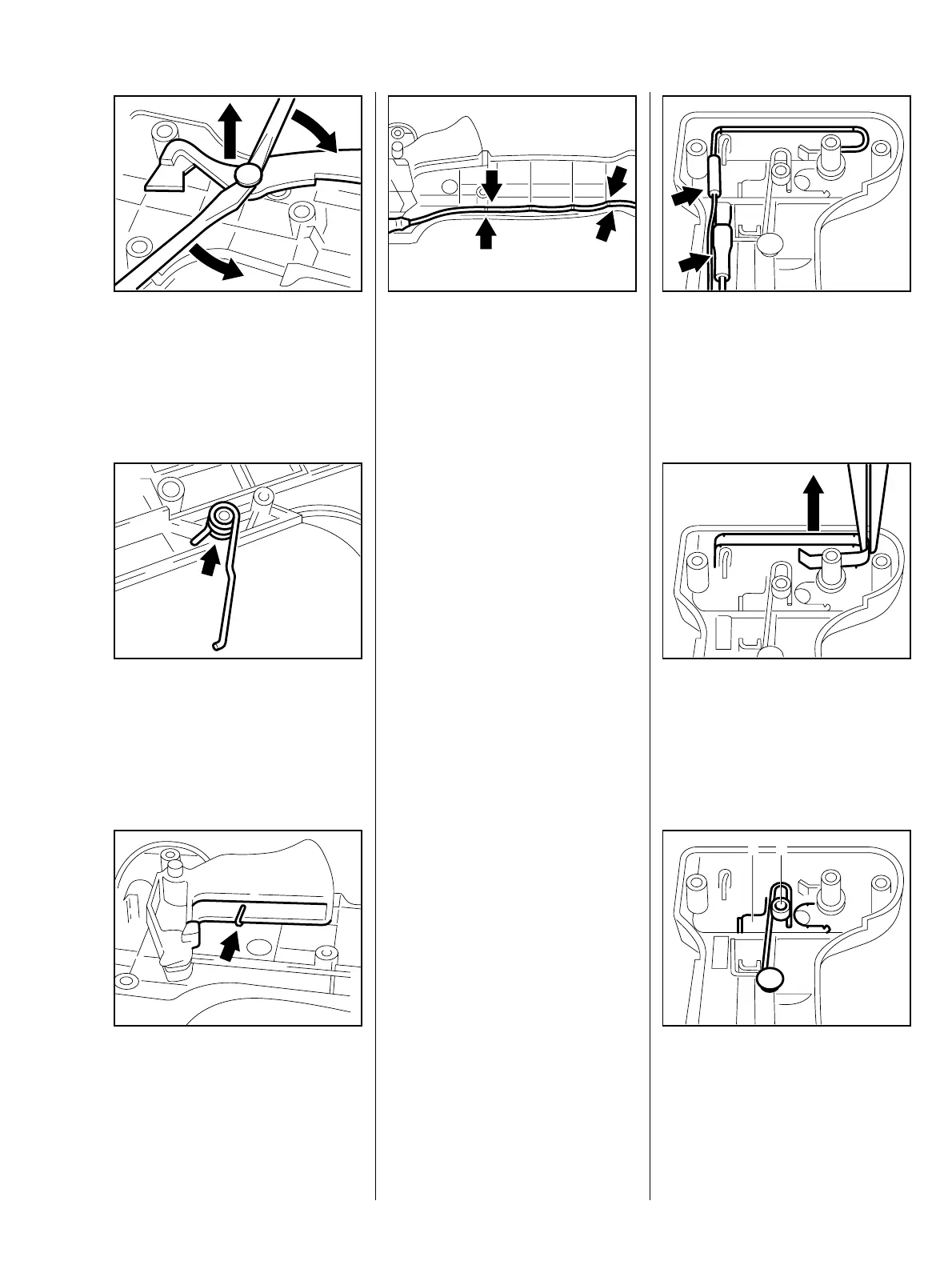

: Carefully remove the rivet
(interlock lever) from the outer
handle molding.
– Remove the interlock lever from
its pivot.
VA
936RA135
: Remove the torsion spring from
the pivot.
Install in the reverse sequence.
VA
936RA282
: Engage the torsion spring on the
throttle trigger.
VA
936RA283
Make sure the short circuit wires
and the throttle cable are correctly
positioned in the handle molding
(arrows).
Assemble all other parts in the
reverse sequence.
VA
936RA284
FS 75, 80, 85 only
– Remove the throttle trigger,
b 8.5.1
: Pull short circuit wires off the tags
(arrows) on the contact springs.
VA
936RA145
: Pull the contact spring out of the
handle molding.
VA
936RA146
: Unscrew the collar screw (1) from
the slide control.
: Remove the detent spring (2).
VA
936RA147
12
8.5.2 Contact / Detent Spring
