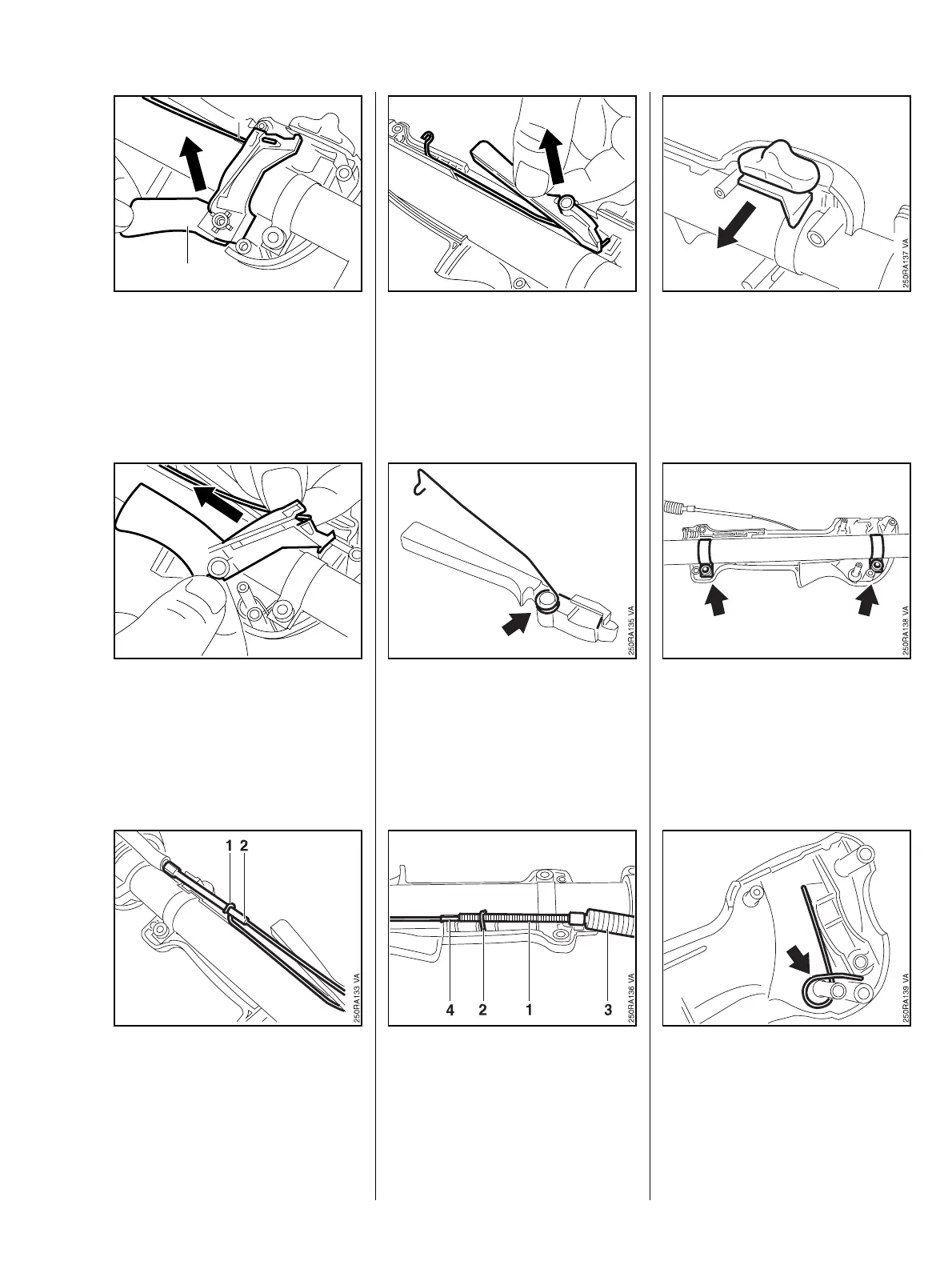

: Pull the throttle trigger (1) with
attached throttle cable (2) from
the pivot.
VA
936RA251
1
2
: Disconnect the throttle cable
from the throttle trigger.
VA
936RA249
: Lift the contact spring (1) slightly
and remove the throttle cable (2).
: Pull the interlock lever with
contact spring off the pivot.
VA
936RA250
: Remove the contact spring
(arrow) from the interlock lever.
Install in the reverse sequence.
: Position the throttle cable (1),
contact spring (2), protective tube
(3) and insulator (4) correctly.
– Tighten down the screws firmly,
b 3.2
– Remove the interlock lever,
b 8.2.1
: Pull the slide control off the
handle molding.
: Take out the clamp screws.
– Remove the handle molding from
the drive tube.
: Remove the torsion spring from
the pivot.
Install in the reverse sequence.
8.2.2 Slide Control
