Stihl KM 85 Service Manual

60 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

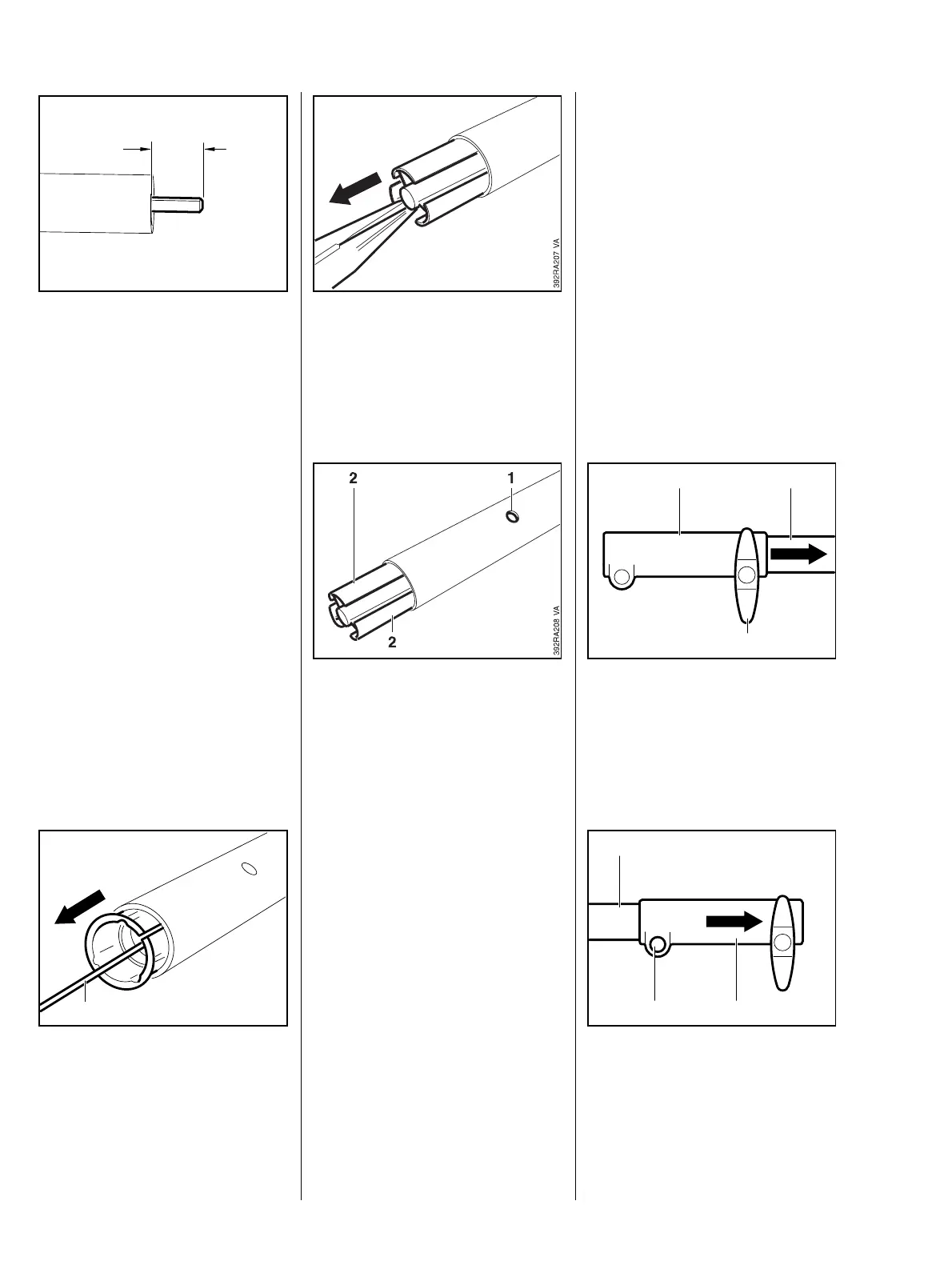

: Push the drive shaft into the drive
tube until dimension "a" is
obtained (rigid shaft should
project 20 mm and the flexible
shaft 17 mm). If necessary, apply
slight pressure to the shaft and
rotate it slowly until it can be
pushed in to the specified
VA
936RA265
a
dimension.
– Install the bearing housing – see
"CombiTools" service manual.
Flexible liner
– Remove the drive shaft.
: Use hook (1) 5910 890 2800 to
pull out the plug.
VA
936RA172
1
: Pull out the flexible liner.
: The hole (1) must be between the
spokes (2).
– Fit the plug and then the drive
shaft.
The drive shaft in the upper end of
the drive tube is supported in a
flexible liner. The top end of the
flexible liner is sealed with a plug
and the bottom end with a sleeve.
: Loosen the wing screw (1).
: Pull the lower end of the drive
tube (2) out of the coupling
sleeve (3).
VA
936RA059
1
23
: Loosen the clamp screw (2).
: Pull the coupling sleeve (2) off
the upper end of the drive tube
(3).
VA
936RA060
1
3
2
10.3.1 Drive Shaft in Upper End
of Drive Tube
(KM 85 only)
