Stihl KM 85 Service Manual

31FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

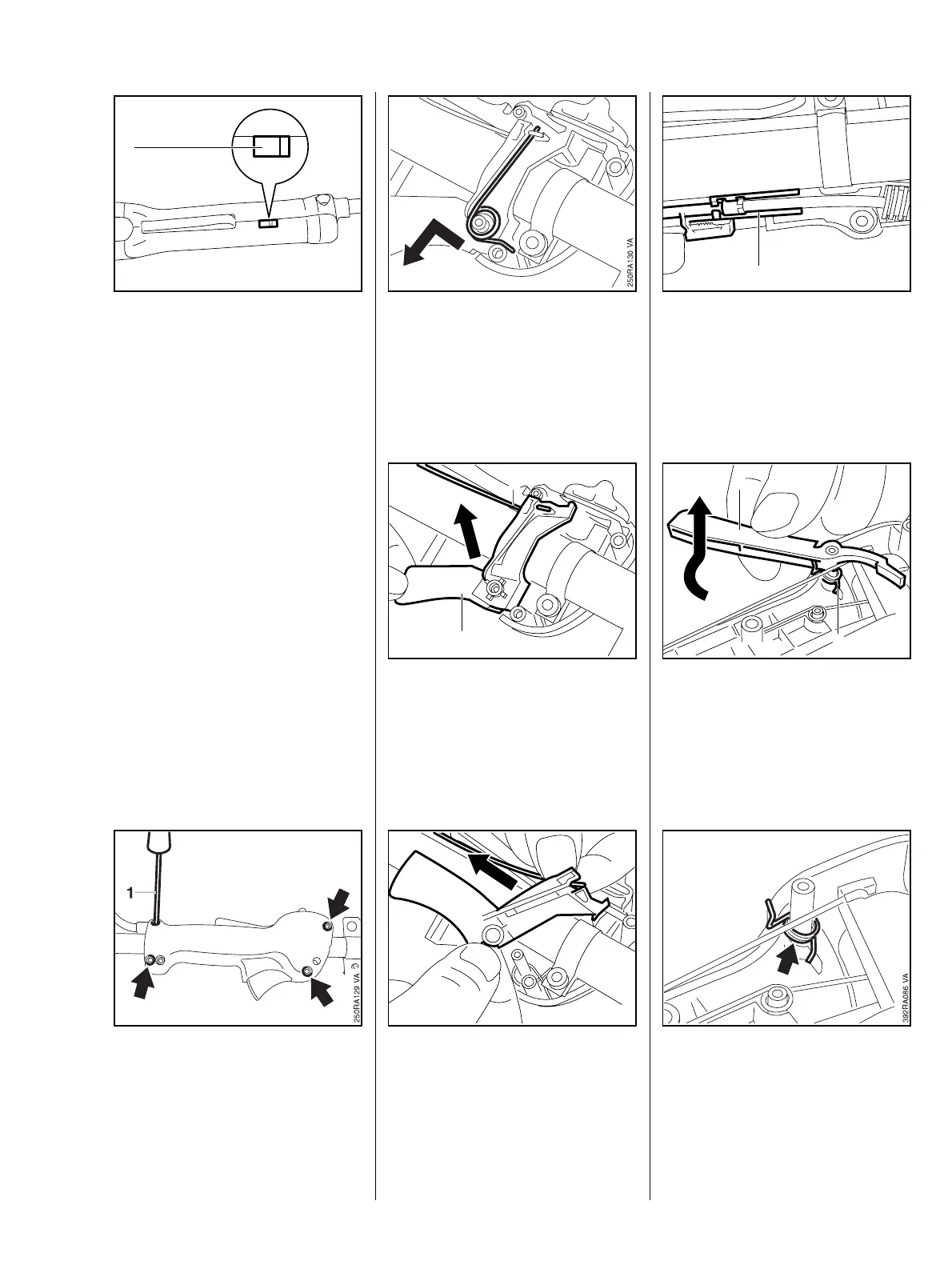

This control handle has a slide (1)
for automatic adjustment of the
throttle cable.
: Insert a screwdriver in the slot,
press the slide down and push it
in the direction of the engine.
936RA437
1
VA
: Take out the screws (arrows) and
remove the handle molding.
: Remove the torsion spring.
: Remove the throttle trigger (1)
with attached throttle cable (2)
from the pivot.
VA
936RA251
1
2
: Disconnect the throttle cable
from the throttle trigger.
VA
936RA249
: Take the slide (1) out of the guide
and remove the throttle cable.
VA
249RA104
1
: Lift the interlock lever (1) slightly
and turn it sideways until the
torsion spring (2) is relaxed.
: Pull the interlock lever (1) off the
pivot.
VA
936RA253
1
2
: Remove the torsion spring
(arrow).
Install in the reverse sequence.
8.3 Control Handle from 2002
8.3.1 Throttle Trigger/Interlock
Lever
