68 MS 192 T
Impurities gradually clog the fine
pores of the filter with minute
particles of dirt. This prevents the oil
pump from supplying sufficient oil to
the bar and chain. Always check the
oil tank and pick-up body first if
problems develop in the oil supply.
Clean the oil tank if necessary.
– Troubleshooting, b 4.3
– Unscrew the oil tank cap and
drain the oil tank.
Collect chain oil in a clean container
or dispose of it properly at an
approved disposal site.

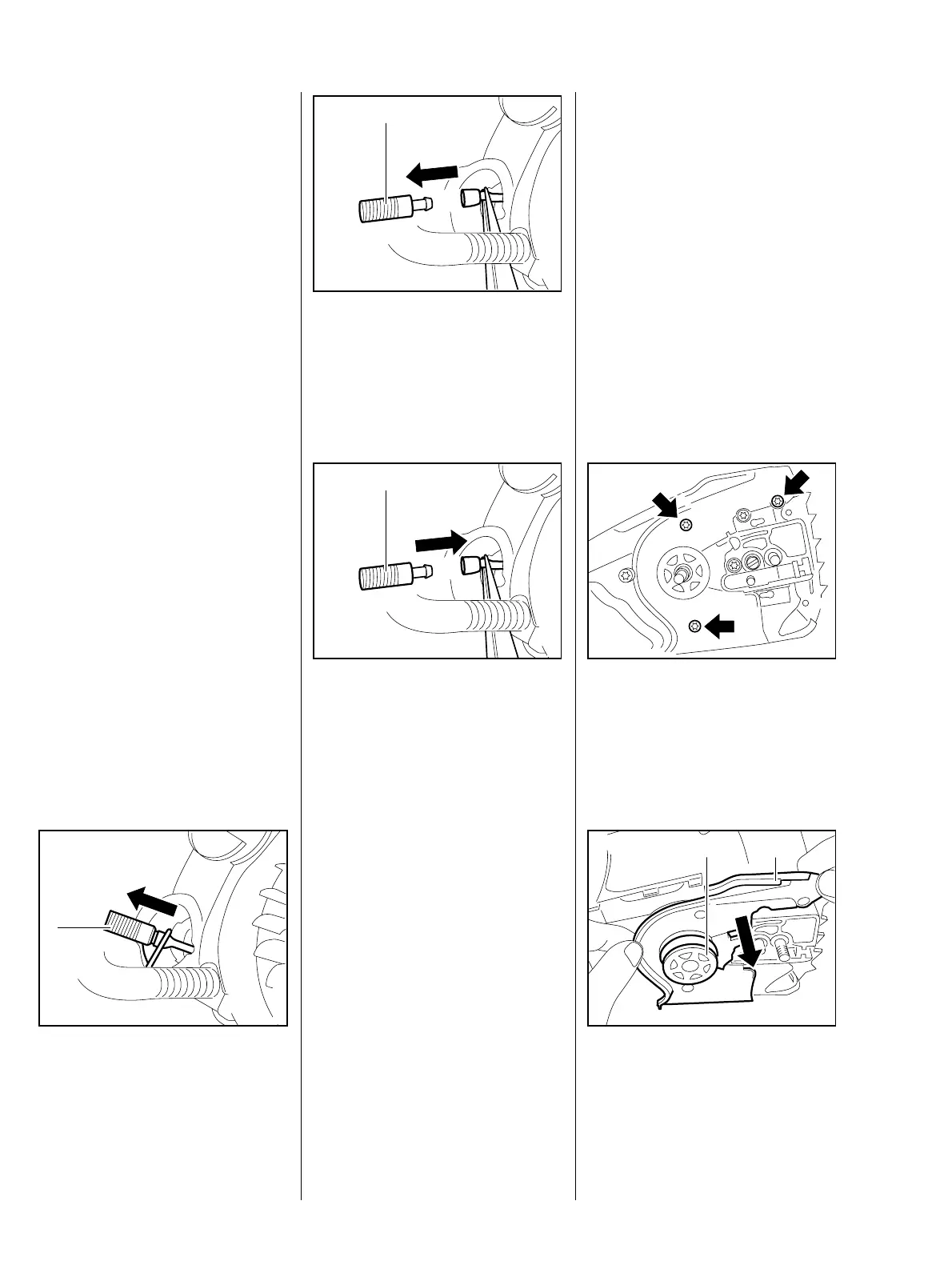

: Use hook 5910 893 8800 to pull
the pick-up body (1) out of the oil
tank.
Take care not to overextend the
suction hose.
1
217RA187 TG
– Hold the suction hose with blunt
pliers.
: Pull the pick-up body (1) off the
suction hose.
217RA188 TG
1
– Flush out the oil tank.
– Replace the pick-up body.
: Push the pick-up body (1) into the
suction hose and place it in the oil
tank.
1
217RA340 TG
– Reassemble remaining parts in
reverse order.
– Remove the sprocket cover and
bar and chain, b 5.1
– Remove the clutch, b 6.1
– Remove the bumper strips,
b 5.5
– Unscrew the oil tank cap and
drain the oil tank.
– Remove the pick-up body,
b 13.1
: Take out the screws (arrows).
217RA073 TG
: Remove the cover (1), pulling the
worm (2) off the crankshaft stub
at the same time.
217RA074 TG
1
2
13. Chain Lubrication
13.1 Pick-up Body
13.2 Oil Suction Hose
