Stihl MS 311 Manual

51MS 311, MS 391
8. Rewind Starter
8.1 General
If the action of the starter rope
becomes very stiff and the rope
rewinds very slowly or not
completely, it can be assumed that
the starter mechanism is in order
but plugged with dirt. At very low
outside temperatures the lubricating
oil on the rewind spring may thicken
and cause the spring windings to
stick together. This has a
detrimental effect on the function of
the starter mechanism.
In such a case it is sufficient to apply
a few drops of a standard solvent-
based degreasant (containing no
chlorinated or halogenated
hydrocarbons) to the rewind spring.
Carefully pull out the starter rope
several times and allow it to rewind
until its normal smooth action is
restored.
Before installing, lubricate the
rewind spring and starter post with
STIHL special lubricant, b 14.
If clogged with dirt or pitch, the
entire starter mechanism, including
the rewind spring, must be removed
and disassembled. Take particular
care when removing the spring.
– Clean all components, b 14

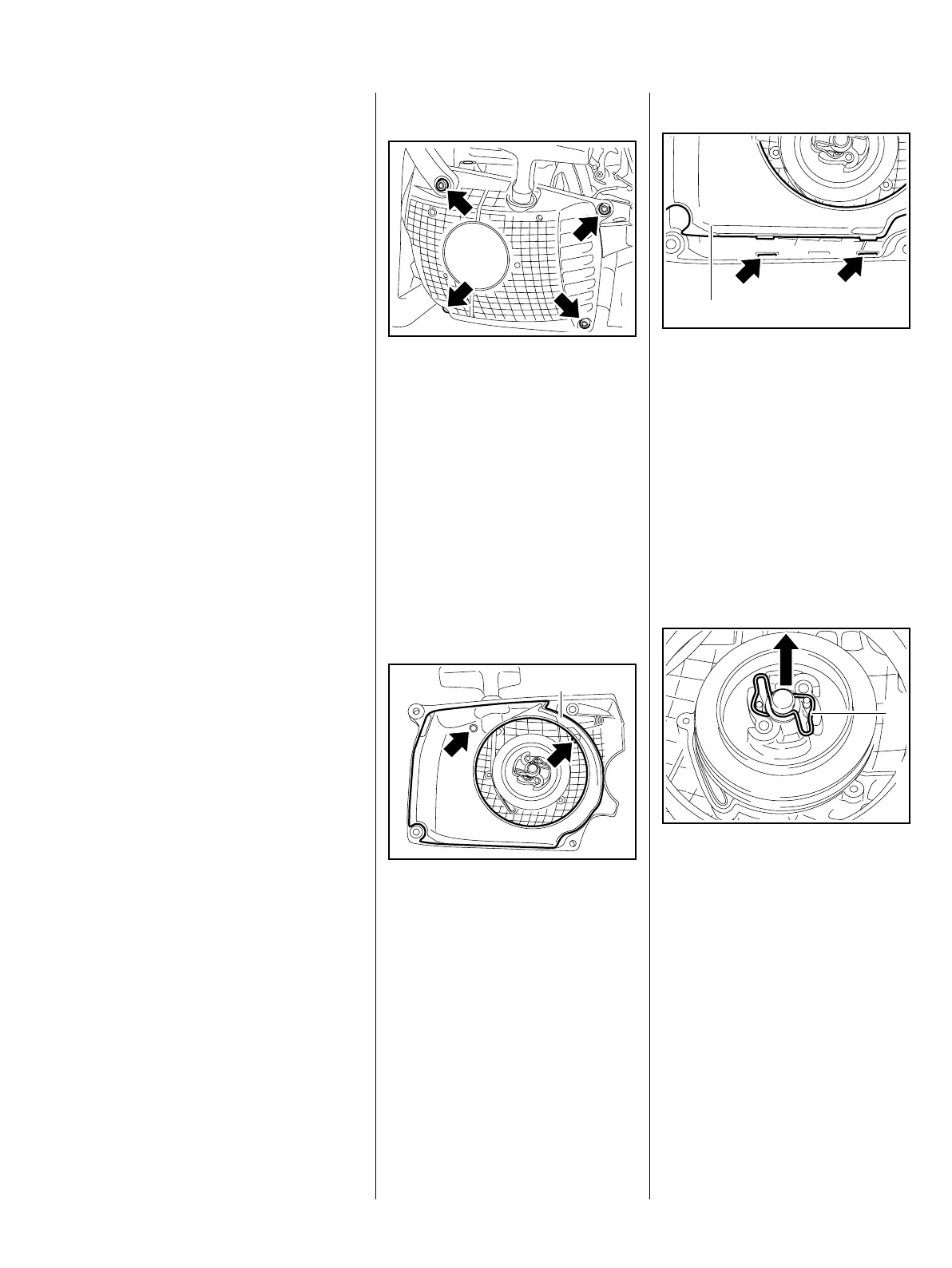

8.2 Fan housing
– Remove the shroud, b 6.4
: Take out the screws (arrows).
– Lift the hand guard a little and
remove the fan housing.
– Reassemble in the reverse
sequence.
8.2.1 Segment
– Remove the fan housing, b 8.2
: Pry the segment (1) off the lugs
(arrows) and lift it away.
4903RA119 TG4903RA120 TG
1
Installing
: Engage the segment (1) in the
slots (arrows) in the fan housing
first and then swing it into
position.
– Push the segment (1) into the
lugs as far as stop.
– Reassemble in the reverse
sequence.
8.3 Pawls
– Remove the fan housing, b 8.2
– Relieve tension of rewind spring,
b 8.4
: Carefully ease the spring clip (1)
off the starter post.
4903RA121 TG
1
4903RA122 TG
1

Stihl MS 311 Specifications

General

Oil tank capacity	0.348 L
Fuel tank capacity	0.6 L
Power source	Gasoline

Weight and Dimensions

Weight	6200 g
