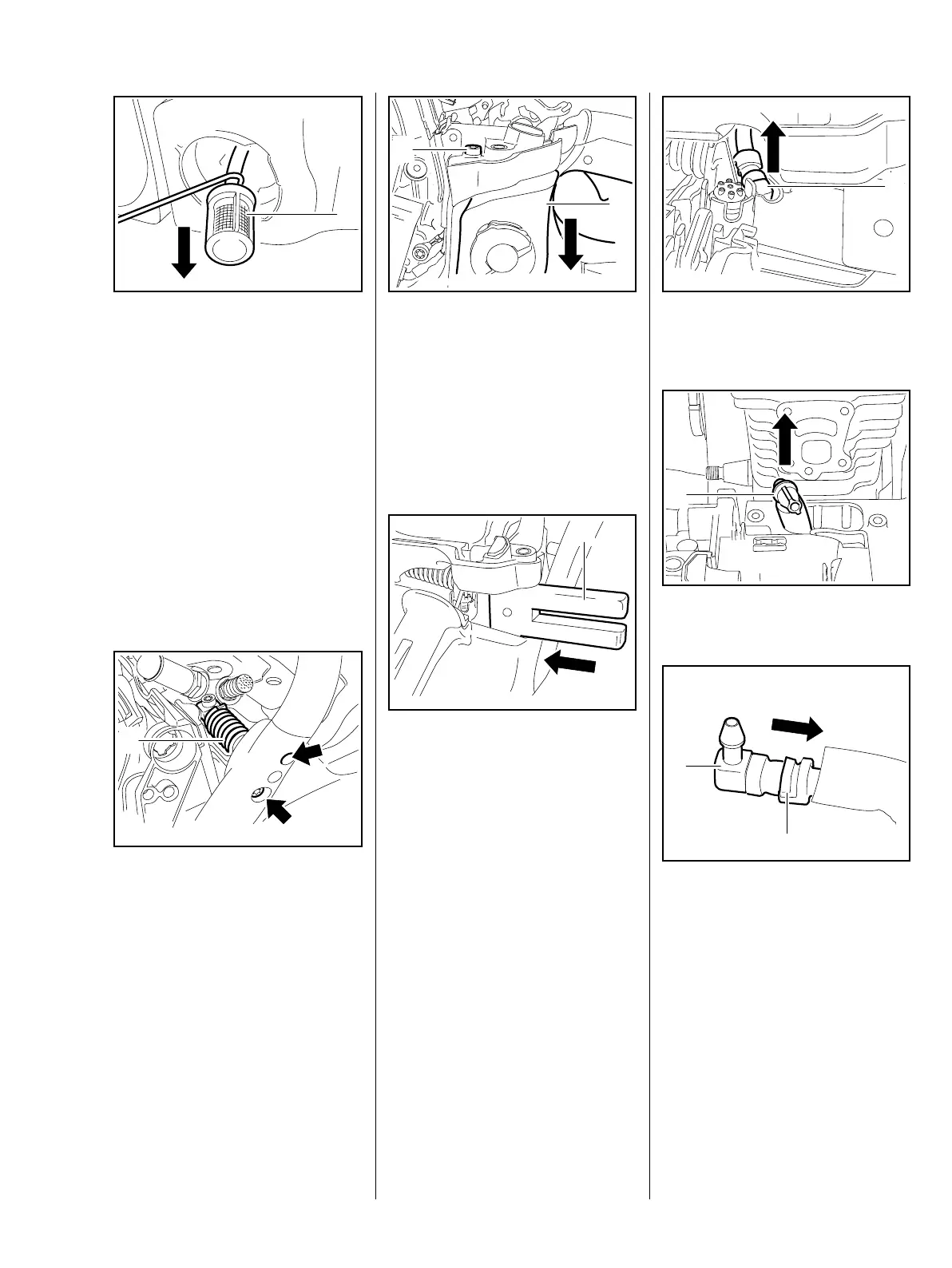

85MS 311, MS 391
– Open the tank cap.
: Use hook 5910 893 8800 to
remove the pickup body (1) from
the fuel tank.
Do not overstretch the fuel hose.
: Pull off the pickup body (1).
– Reassemble in the reverse
sequence.
12.11.2 Fuel Hose
: Take out the screws (arrows) and
pry the AV spring (1) out of the
handlebar.
1
0001RA410 TG
4903RA243 TG
1
– Remove the shroud, b 6.4
– Remove the air guide shroud,
b 12.4
: Take out the screw (1).
: Lower the tank housing (2).
: Slide the wooden assembly
block (1) between the engine
housing and tank housing.
4903RA060 TG
1
2
4903RA108 TG
1
: Pull out the fuel hose (1) with
connector.
: Remove the fuel hose (1).
: Pull the fuel hose (2) off the
connector (1).
4903RA164 TG
1
4903RA000 TG
1
0001RA412 TG
1
2

Stihl MS 311 Specifications

General

Oil tank capacity	0.348 L
Fuel tank capacity	0.6 L
Power source	Gasoline

Weight and Dimensions

Weight	6200 g
