0458-795-8621-B
4
English

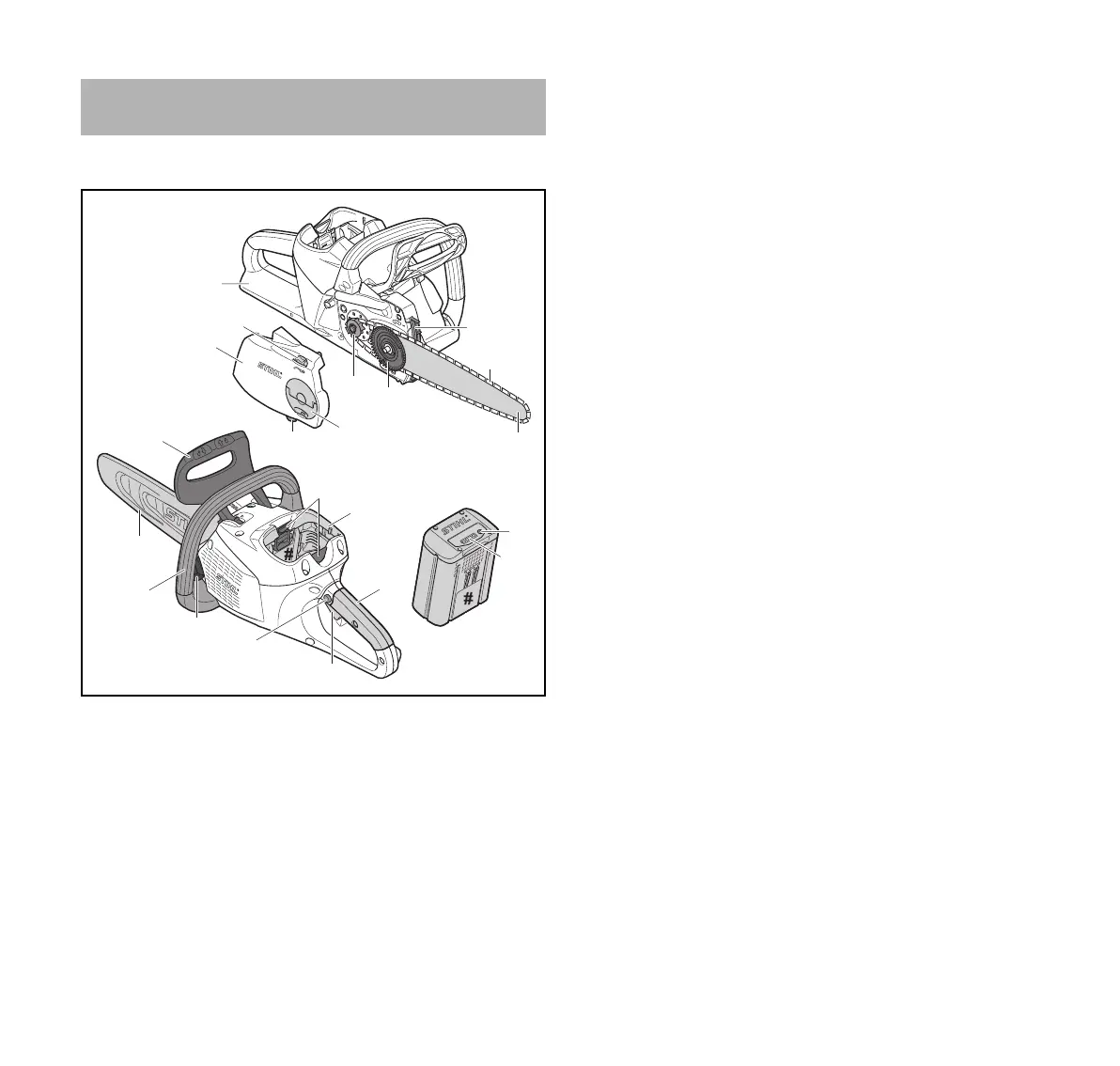

3 Main Parts
3.1 Chain Saw and Battery
1 Rear Hand Guard
Helps protect the operator's right hand in the event the
chain breaks or comes off the bar.
2 Chain Sprocket
Drives the saw chain.
3 Tensioning Gear
Shifts the guide bar and tensions or loosens the saw
chain.
4 Bumper Spike
Helps hold the saw steady against the wood during
cutting.
5Saw Chain
Toothed cutting tool consisting of cutters, tie straps and
drive links.
6 Guide Bar
Supports and guides the saw chain.
7 Chain Sprocket Cover
Covers the chain sprocket.
8 Adjusting Wheel
Permits precise adjustment of saw chain tension.
9 Chain Catcher
Helps contain the saw chain and reduce the risk of
operator contact in the event the chain breaks or comes
off the bar.
10 Wingnut
Tightens the chain sprocket cover to the chain saw.
11 Front Hand Guard
Helps protect the operator's left hand from projecting
branches and contact with the saw chain. Serves as the
activation lever for the chain brake.
12 Locking Levers
Secure the battery in the battery compartment.
13 Battery Compartment
Holds the battery.
14 Rear Handle
Handle for the operator's right hand.
15 Chain Scabbard
Covers the guide bar and saw chain to reduce the risk of
injury from inadvertent contact during transportation and
storage.
16 Front Handle
Handle for the operator's left hand.
17 Oil Filler Cap
Closes and seals the oil tank.
3Main Parts
1
11
3
2
4
6
5
7
10
8
20
21
22
14
13
9
18
19
12
15
16
17
0000-GXX-3094-A1
