26 Specifications
26.1 STIHL MSA 220 C
– Approved battery types:
–STIHL AP series
– STIHL AR series
– Weight without battery, guide bar and saw chain:
6.4 lbs. (2.9 kg)
– Maximum oil tank volume: 7.1 oz. (0.21 l)
For technical information regarding the STIHL AP and
AR series batteries, see the product information
accompanying your battery.
For technical information regarding the STIHL AL 101, 300
and 500 series chargers, see the product information
accompanying your charger.
Batteries, chargers and other accessories sold separately.
Contact your authorized STIHL servicing dealer for pricing
and availability.
26.2 Chain Sprockets
The following chain sprockets are available for this model
chain saw:
– 6-tooth for 3/8" PICCO pitch
– 7-tooth for 1/4" pitch
26.3 Minimum Groove Depth of Guide Bars
The minimum groove depth of a guide bar depends on the
pitch of the guide bar.
– Minimum groove depth for 3/8" PICCO pitch guide bars:
0.197 in. (5 mm)
– Minimum groove depth for 1/4" pitch guide bars: 0.157 in.
(4 mm)
26.4 Depth Gauge Setting
The depth gauge setting of a saw chain depends on the pitch
of the chain.
– Depth gauge setting for 3/8" PICCO pitch chains:
0.026 in. (0.65 mm)
– Depth gauge setting for 1/4" pitch chains: 0.018 in.
(0.45 mm)

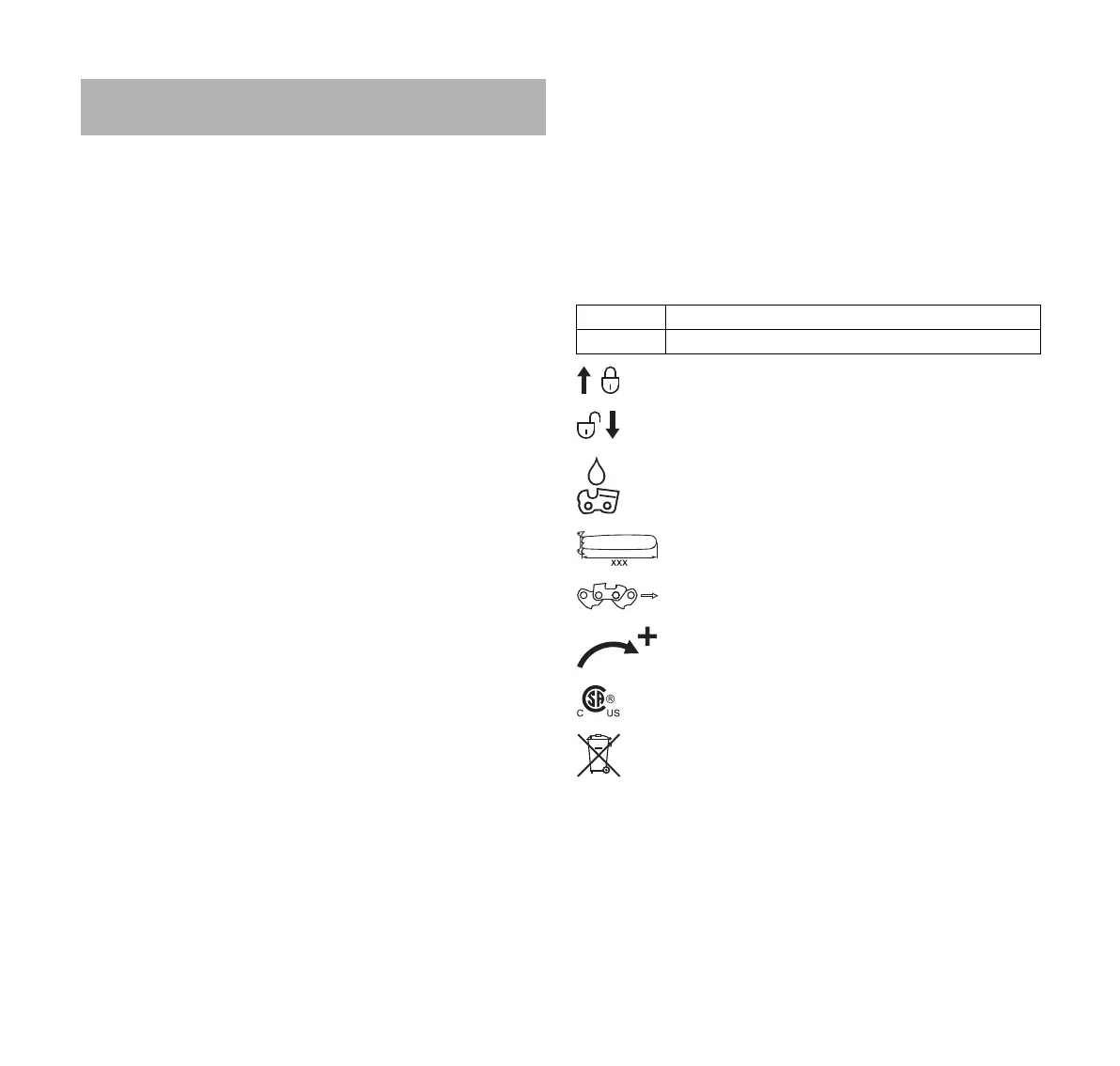

26.5 Symbols on the Chain Saw
26.6 Engineering Improvements
STIHL's philosophy is to continually improve all of its
products. As a result, engineering changes and
improvements are made from time to time. Therefore, some
changes, modifications and improvements may not be
26 Specifications
Symbol Explanation
VVolt
Engage the chain brake
Disengage the chain brake
Chain oil tank
Maximum guide bar length
Direction of saw chain rotation
Turn clockwise to tension the saw chain
Certification/listing mark of CSA
STIHL products must not be disposed of in the
household trash, but only in accordance with local,
state and federal laws and regulations and as
provided in this manual, @ 29.
